Numatics G3 Series - Page 72

G3 Series EtherNet/IP
TM
DLR Technical Manual
7-72
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3

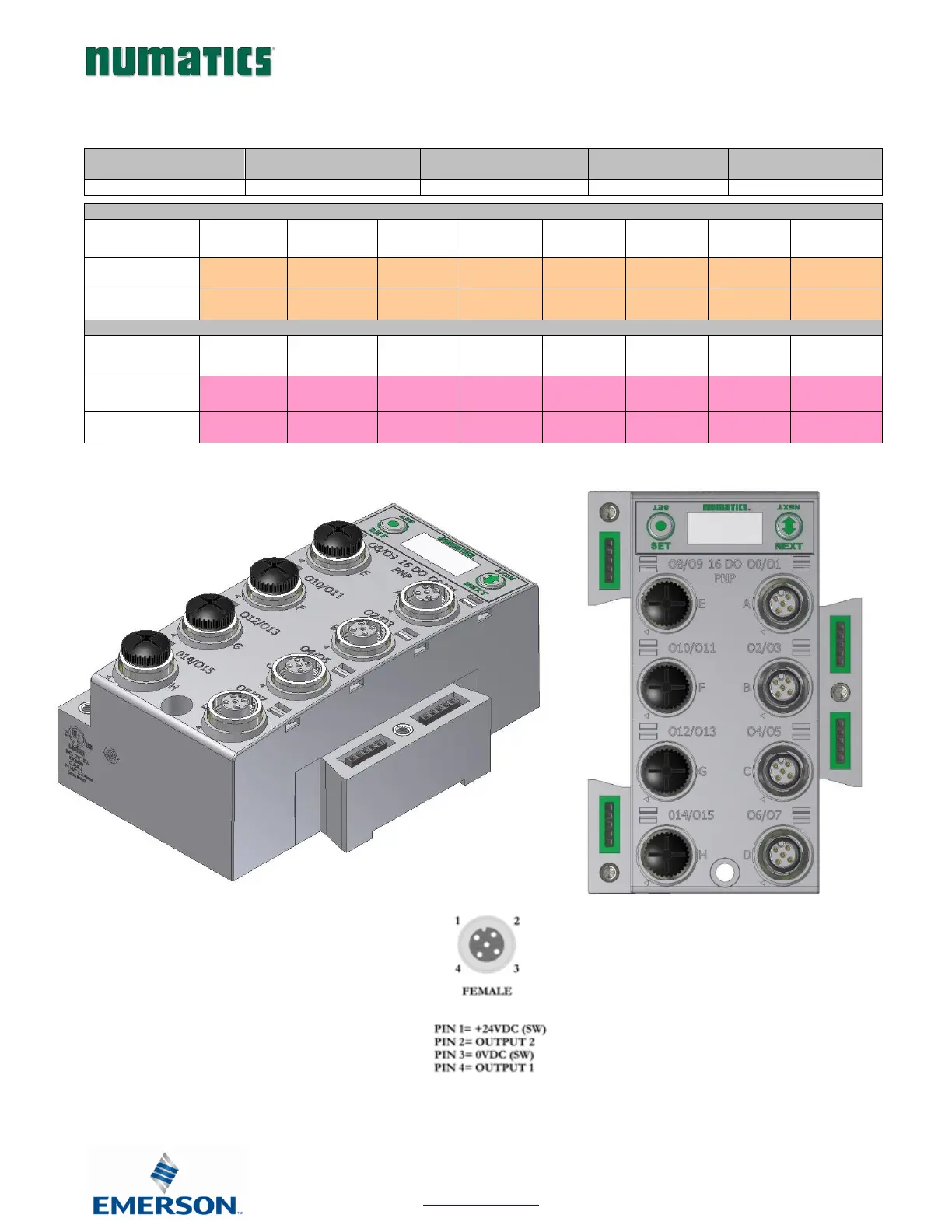

Two Digital Outputs per Connector - M12 Female Modules
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit
Protection Status Bits
Output Points
240-207
PNP (Sourcing)
YES – Visual
YES (8) – Optional
16
Output Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Output 7
Output 6
Output 5
Output 4
Output 3
Output 2
Output 1
Output 0
X+1
(Required)
Output 15
Output 14
Output 13
Output 12
Output 11
Output 10
Output 9
Output 8
Diagnostics
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
X+1
Output 15
Status
Output 14
Status
Output 13
Status
Output 12
Status
Output 11
Status
Output 10
Status
Output 9
Status
Output 8
Status
