Numatics G3 Series - Page 140

G3 Series EtherNet/IP
TM
DLR Technical Manual
14-140
TDG3EDM1-6EN 3/18
Subject to change without notice
www.asco.com/g3
Assembly Instance Values
The following Assembly Instance parameters must be used with the G3 EtherNet/IP
TM
DLR module.

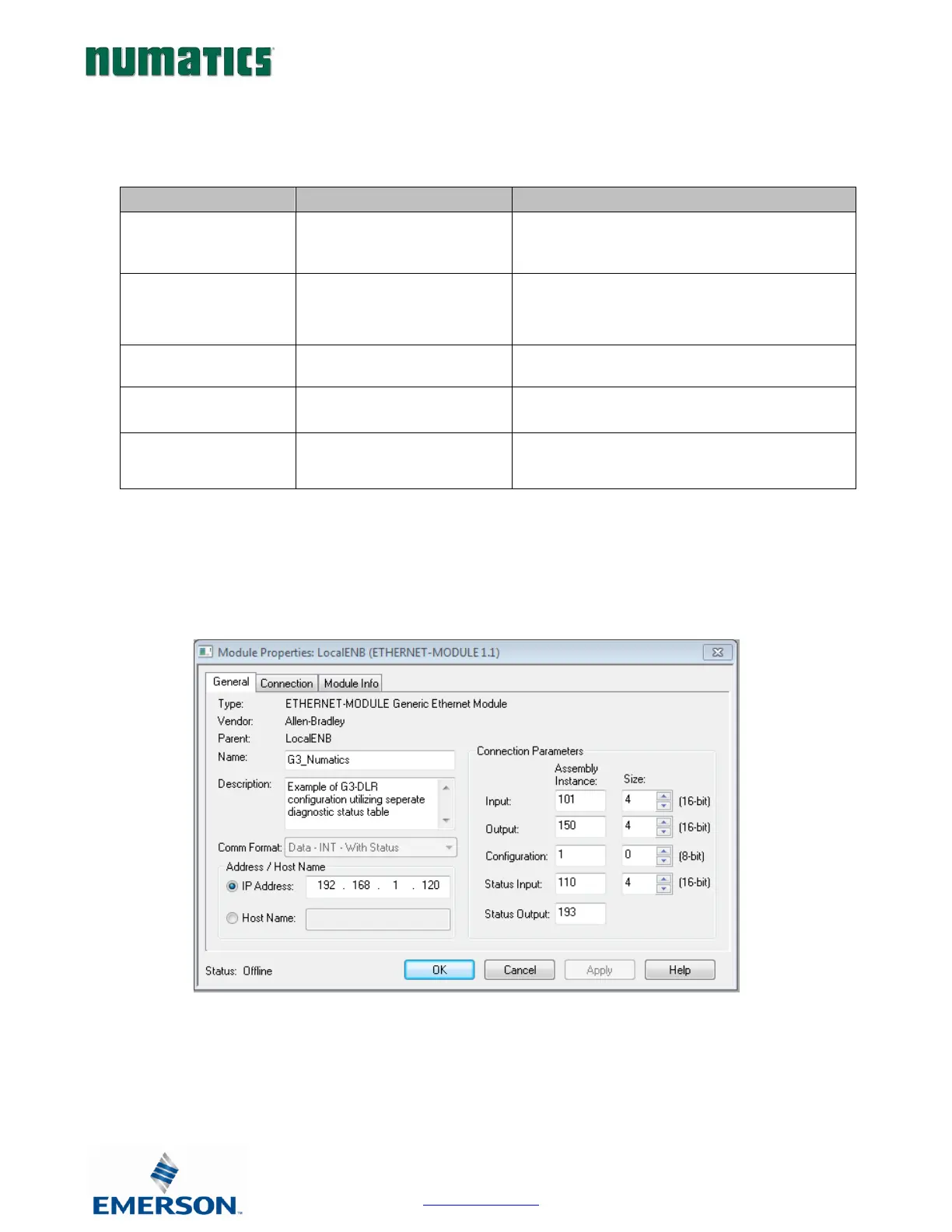

Generic Ethernet Module (example)
The following example configured as INT-With Status (if diagnostics are enabled in the G3 EtherNet/IP
TM
node, they are Refer
to I/O mapping examples page 147.
Description
Assembly Instance Values
Size (depends on data format)
Input
101 (Decimal)
Total input value from the physical manifold
configuration. This is a minimum value. Larger
values may be specified for future expansion
purposes.
Output
150 (Decimal)
Total output value from the physical manifold
configuration. This is a minimum value. Larger
values may be specified for future expansion
purposes.
Configuration
1 (Decimal)
0
Status Input
110 (Decimal)
Total input value of diagnostic input data. This is a
minimum value. Larger values may be specified for
future expansion purposes.
Status Output
193 (Decimal)
NA
