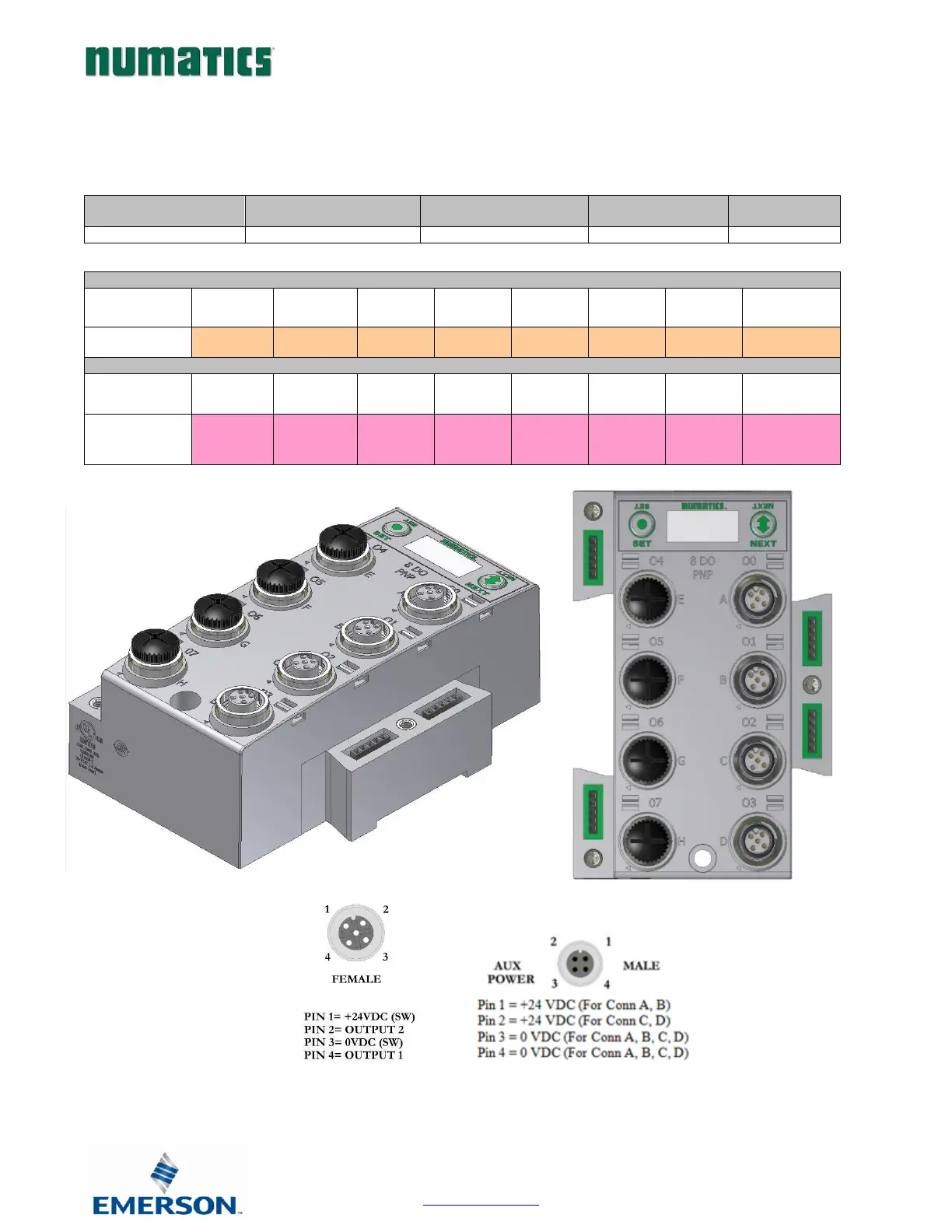

Two Digital High Current Outputs per Connector - M12 Female Modules
The high current output module is to be used with output devices requiring between 0.5 and 1.0 Amps. Each
connector incorporates two outputs that are capable of sourcing 1.0 Amp per output.
Module
Part No.
I/O Type
Short Circuit Protection
Short Circuit
Protection Status Bits
Output Points
240-300
PNP (Sourcing)
YES – Visual
YES (8) – Optional
8
Output Mapping
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
(Required)
Output 7
Output 6
Output 5
Output 4
Output 3
Output 2
Output 1
Output 0
Diagnostics
BYTE
Bit 7
Bit 6
Bit 5
Bit 4
Bit 3
Bit 2
Bit 1
Bit 0
X
Output 7
Status
Output 6
Status
Output 5
Status
Output 4
Status
Output 3
Status
Output 2
Status
Output 1
Status
Output 0
Status
