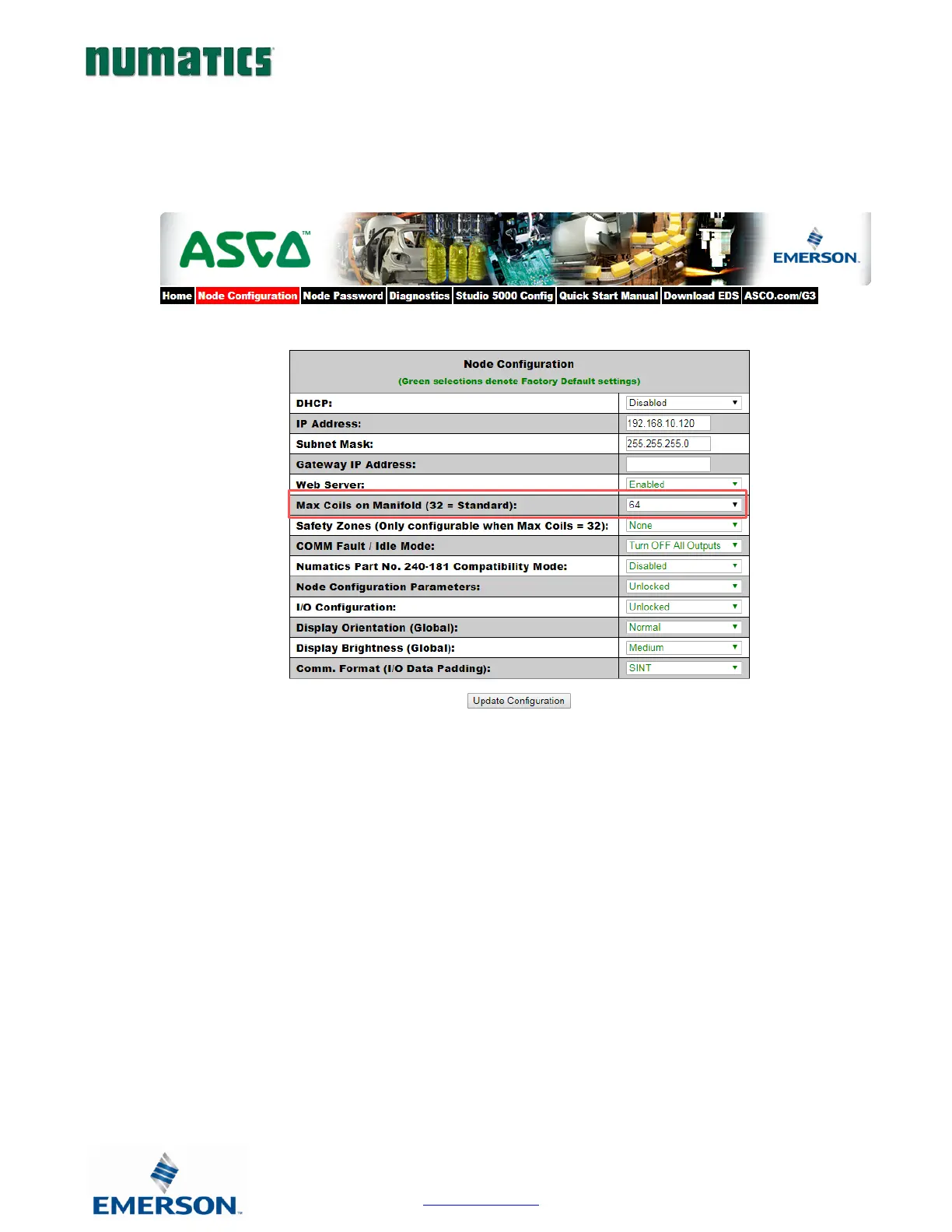

The following example of the G3 diagnostic webpage “Node Configuration” identifies the details of a manifold configured
for 64 possible coils.
Number of Maximum
Coils should only be
adjusted if 1 or more
additional extended
coil valve driver(s) has
been physically added.
