45530603TH Rev.2
7-5
Oki Data CONFIDENTIAL
7. PERIODIC MAINTENANCE

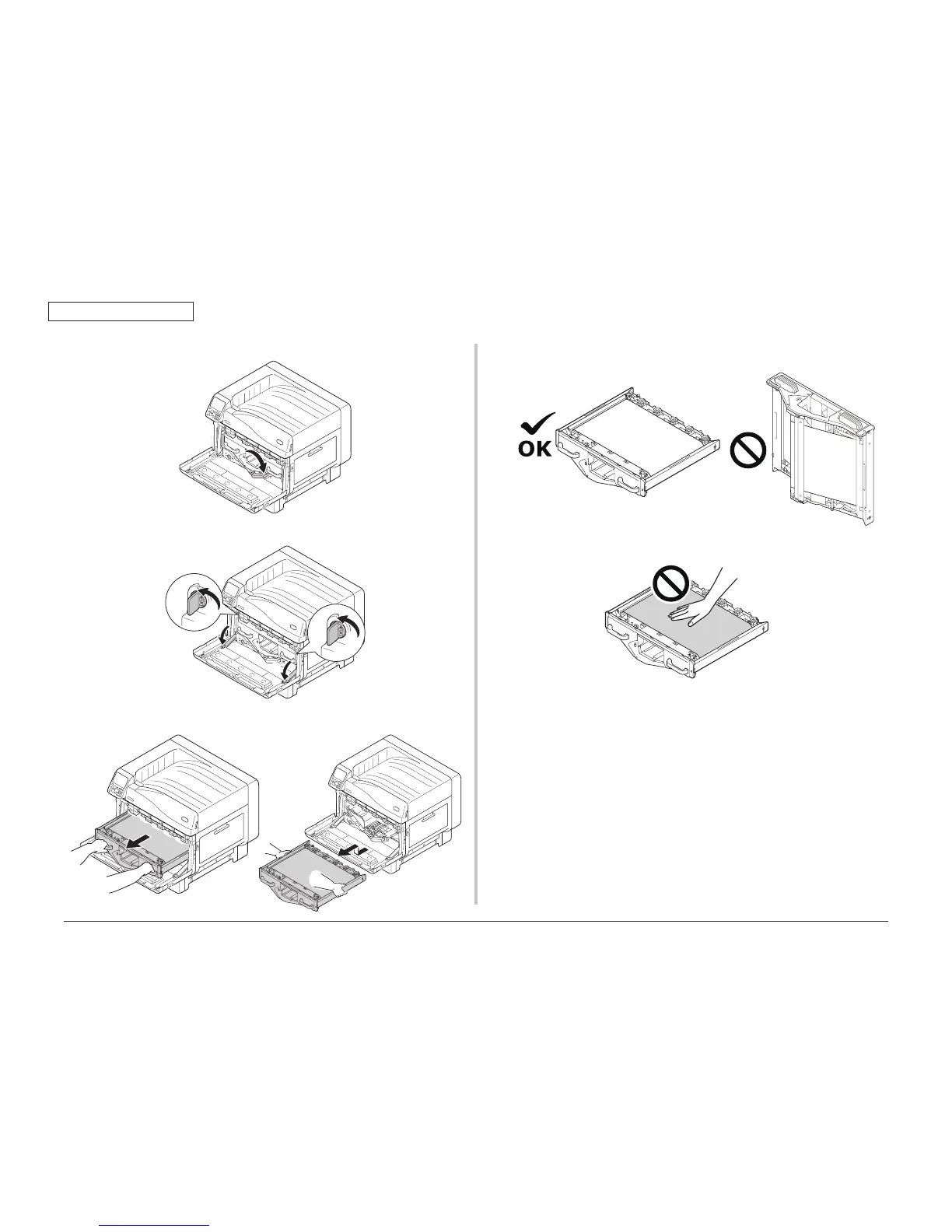

(6) Push the center lever (blue) to the right.
(7) Rotate the belt unit left/right lock lever knobs (blue) to the left, and pull the lock lever
to front-side.
❶
❶
❷
❷
(8) Hold the handle and pull out the belt unit, hold the right and left labeled parts (blue)
and remove the belt unit.
Note! • Carefully remove the belt unit so that waste toner does not spill.
• Never place the removed belt units upright.
Note! Ensure not to touch or damage the Belt surface.
To Next Page
