45530603TH Rev.2
4-54
Oki Data CONFIDENTIAL
4. TROUBLESHOOTING PROCEDURE

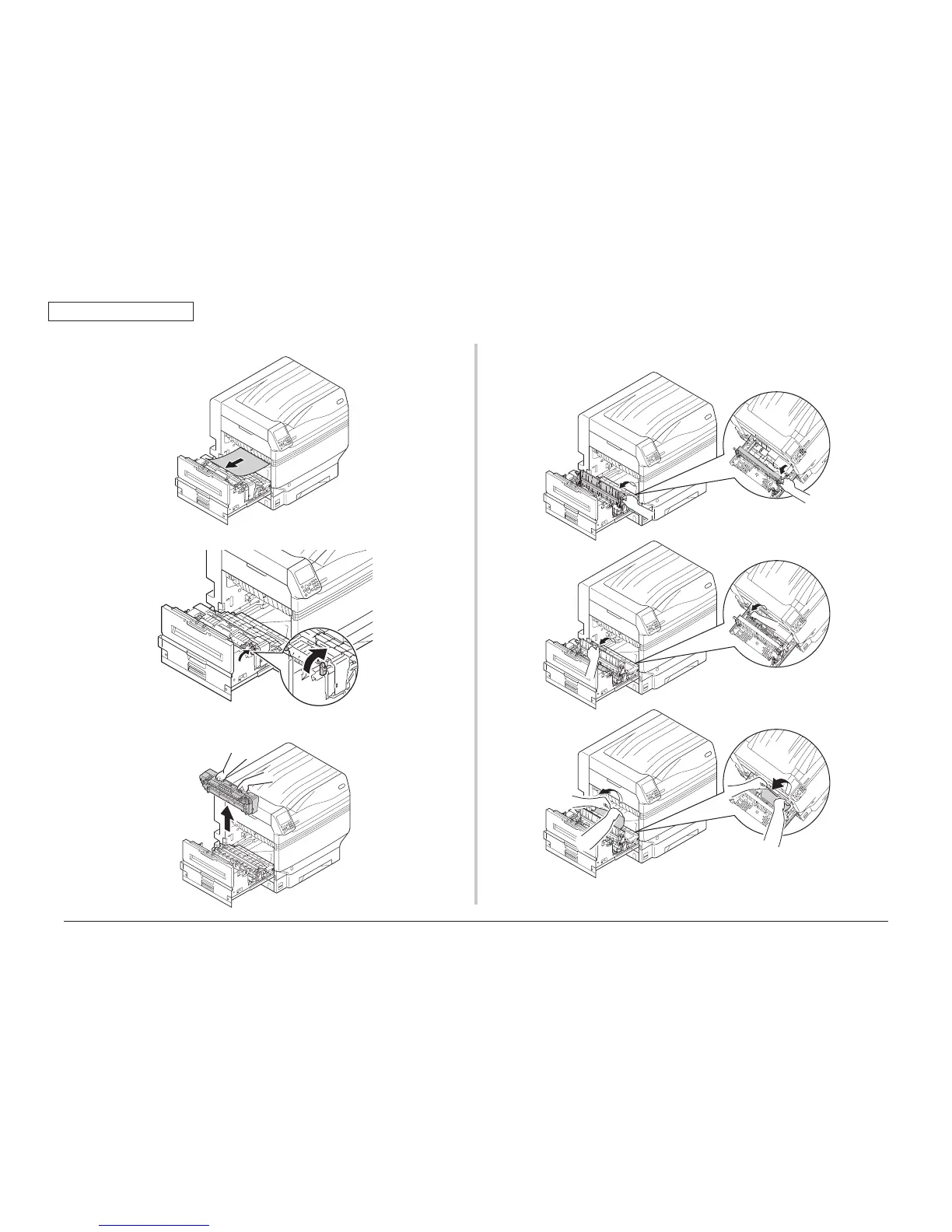

(5) Check inside of the printer and slowly remove the remaining paper.
(6) If the tip of the remaining paper is not visible, pull up the fuser unit’s lock lever (blue).
(7) Hold the fuser unit’s handle with both hands and remove the unit onto a flat surface.
(8) Hold the knob, pull up the transfer roller unit, lift the paper guide, and remove the
remaining paper.
To Next Page
