5 Installation and Wiring
5-6
CP1E CPU Unit Hardware User’s Manual(W479)
z Improving Noise Resistance
Leave space between the CP1E and control panel or other devices to allow adequate dissipation of
heat generated by the power supply.
• Do not mount the PLC in a control panel containing high-voltage equipment.
• Install the PLC at least 200 mm (6.5 feet) from power lines.
• Ground the mounting plate between the PLC and the mounting surface.
z Temperature Control
The ambient operating temperature around the CP1E must be between 0 and 55ºC. Observe the fol-
lowing precautions.
• Provide enough space for good air flow.
• Do not install the PLC above equipment that generates a large amount of heat such as heaters,
transformers, or high-capacity resistors.
• If the ambient temperature exceeds 55ºC, install a cooling fan or air conditioner.

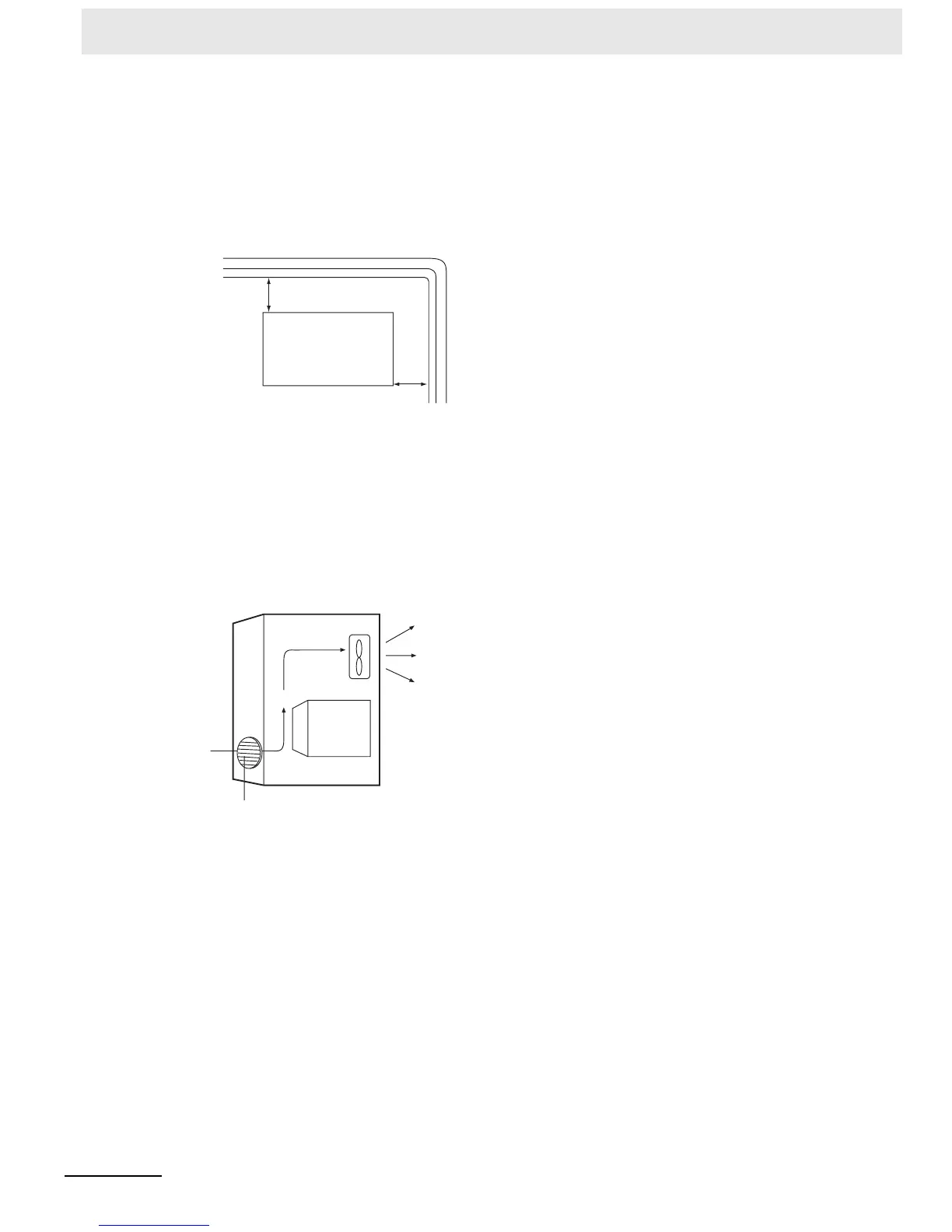

SYSMAC CP1E
200 mm min.
200 mm min.
Power Line
SYSMAC
CP1E
Fan
Control panel
Louver

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
