CP1E CPU Unit Hardware User’s Manual(W479)

• Clearing Specific Bits in the Held Areas at Startup

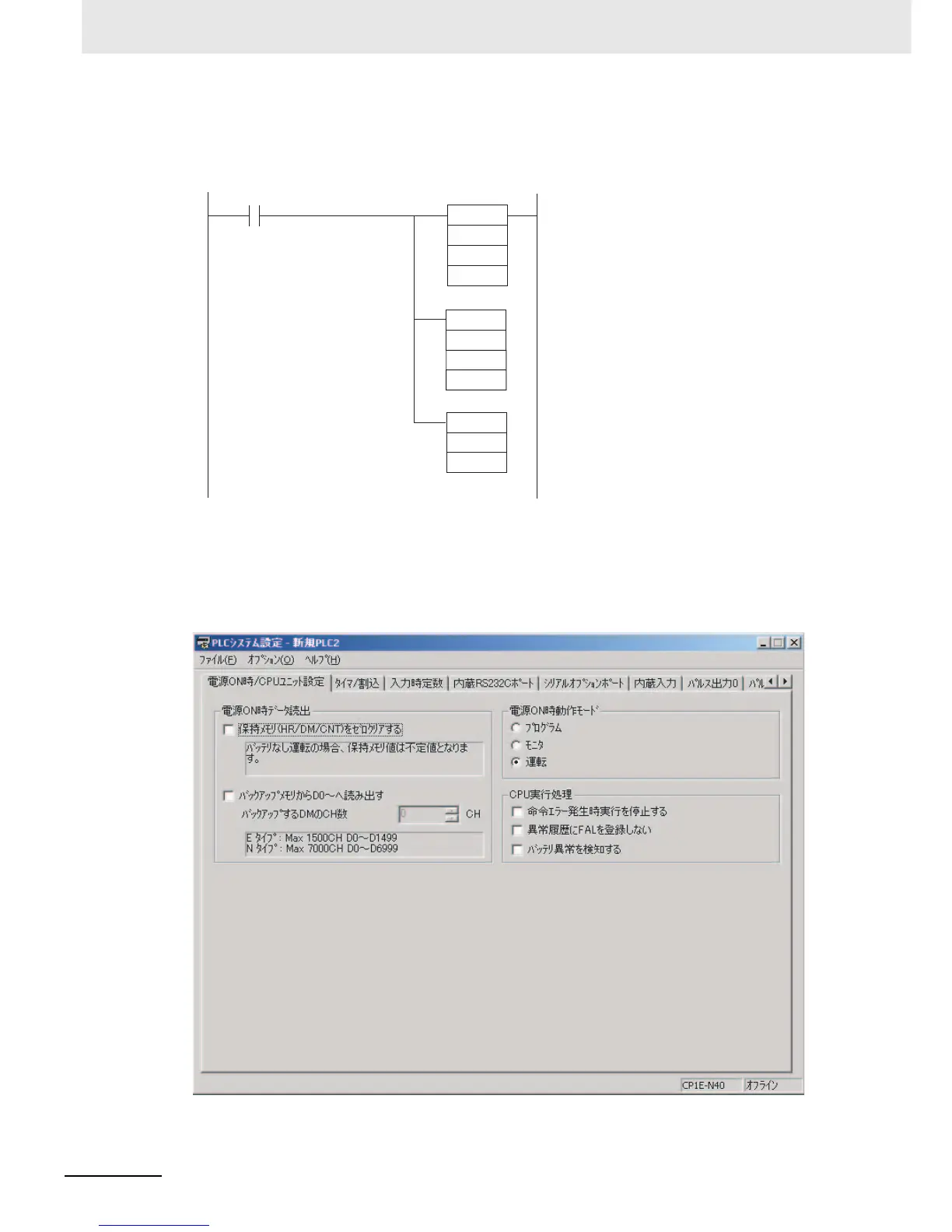

Use the following type of ladder programming.

• DM Area Backup

To initialize the DM Area, back up the initial contents for the DM Area to backup memory using

one of the following methods.

1. Set the number of words of the DM Area to be backed up starting with D0 in the Number of CH

of DM for backup Box in the Startup Data Read Area.

#0000

BSET

D100

D2047

#0000

BSET

H10

D49

CNR

C255

P_First_Cycle

Example

First Cycle Flag

(A200.11)

C0 to C255 are cleared

to Zero

H10 to H49 are cleared

to Zero

D100 to D2047 are cleared

to Zero
