One Serial Communications Option Board with one RS-232C port or one RS-422A/485 port can be
added to an N-type CPU Unit with 30 or 40 I/O points. With the serial communications port, it is easy to
connect to general components, such as barcode readers, and other components such as PTs, other
CP-series PLCs, and Inverters.

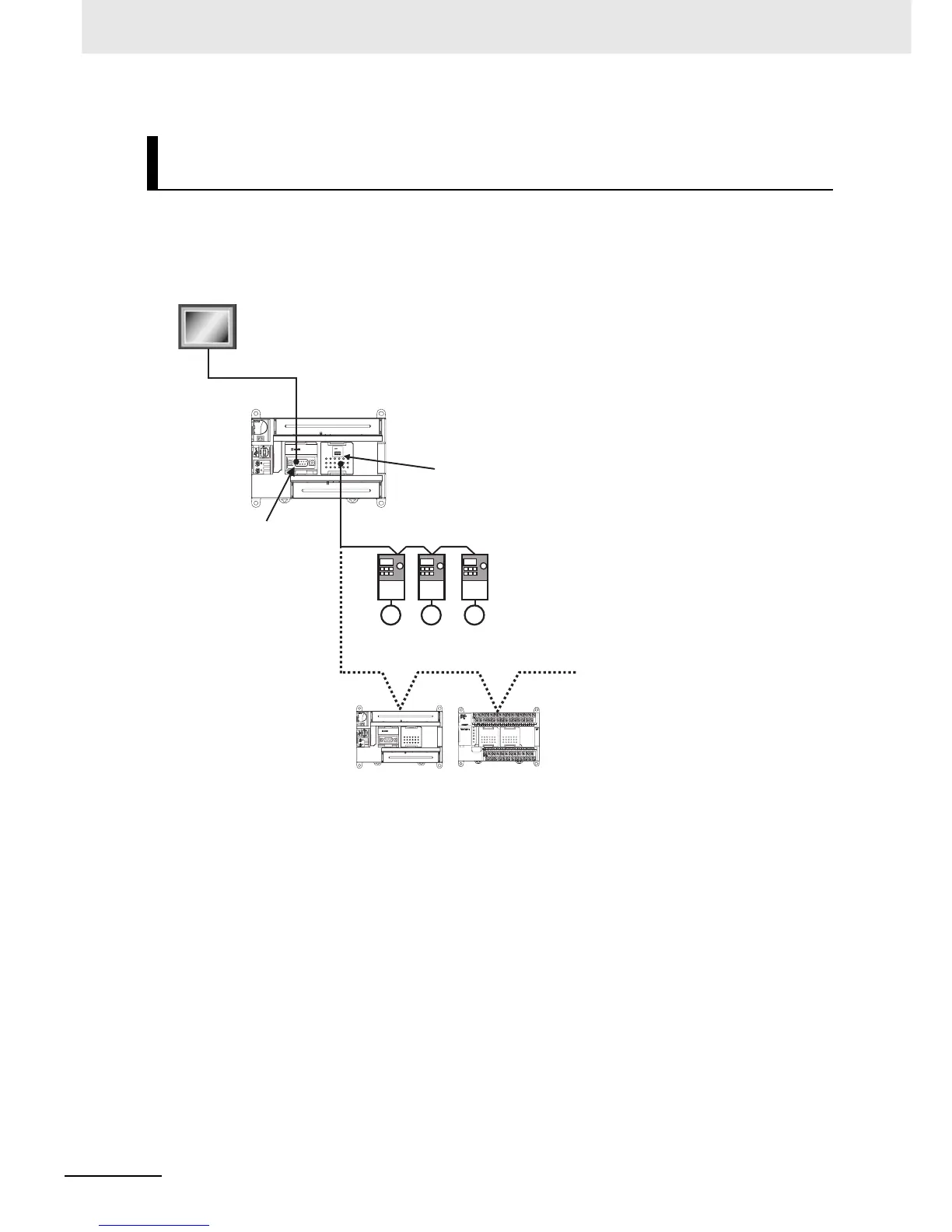

Mounting Serial Option Boards to N-type CPU Units with 30 or 40 I/O
Points
RS-232C
NS-series PT, Barcode Reader, etc.
Example: Inverter
RS-422A
Modbus-RTU Easy Master Function
Serial PLC Links
CP1E, CP1H
CP1L, CJ1M
Built-in RS-232C
port
RS-422A/485 Option Board
with the CP1W-CIF11/12 mounted

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
