Omron CP1E Series User Manual

3 Part Names and Functions
3-4
CP1E CPU Unit Hardware User’s Manual(W479)
z Input Arrangement
AC Power Supply
DC Power Supply
z Output Arrangement
AC Power Supply and DC Power Supply

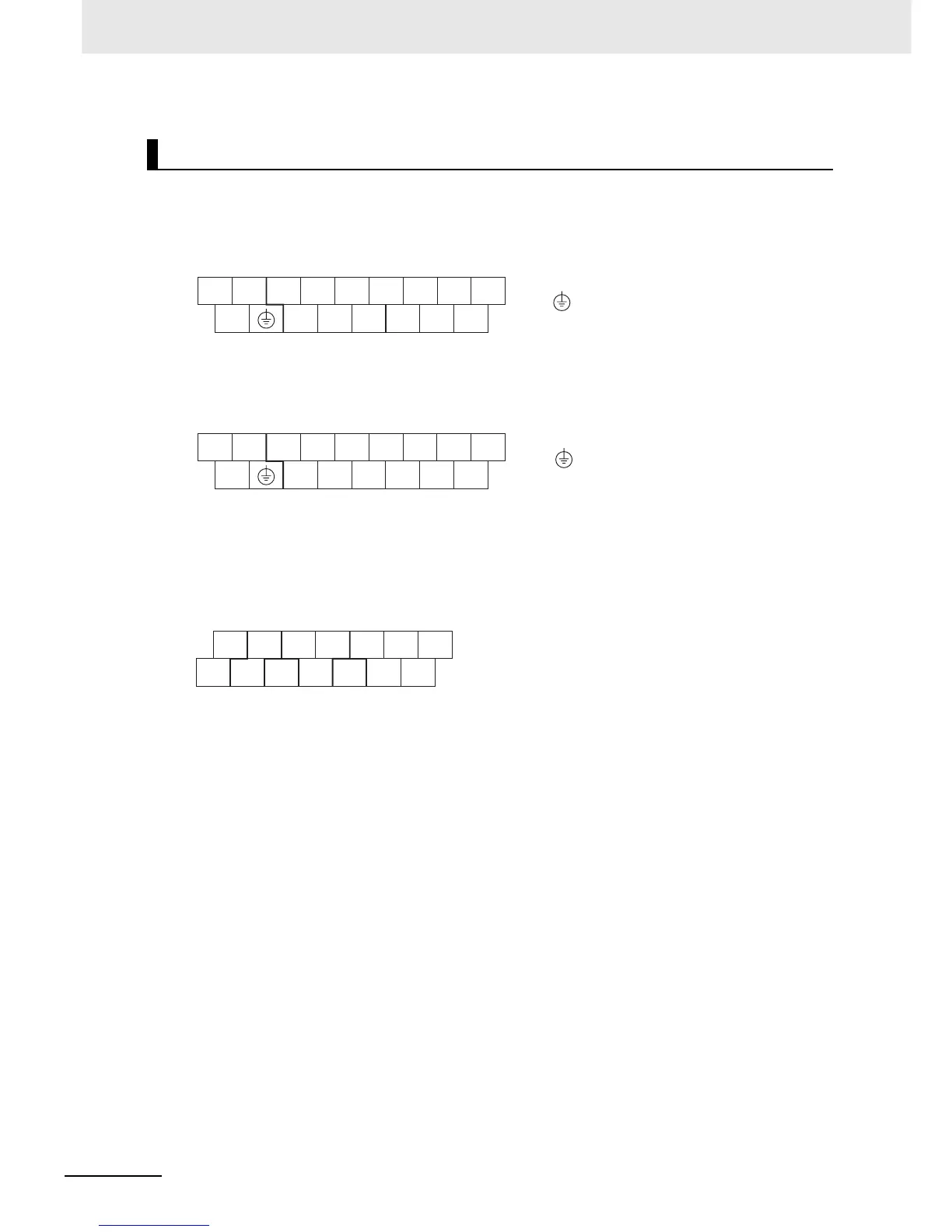

Terminal Arrangements
CIO 0
L1 L2/N
COM 01 03 05 07 09 11
00 02 04 06 08 10NC
L1,L2/N : Power supply terminal
: Protective ground terminal
COM : Common terminal
00 to 11 : Input terminal
NC : No connection
+
-
COM 01 03 05 07 09 11
00 02 04 06 08 10NC
CIO 0
+, - : External supply terminal
: Protective ground terminal
COM : Common terminal
00 to 07 : Output terminal
NC : No connection
00 01 02 03
COM COM NC COM
04 05 07
06
COMNC
CIO 100
COM : Common terminal
00 to 07 : Output terminal
NC : No connection

Omron CP1E Series Specifications

General

Data Memory	8K words
Pulse Output	100 kHz for 2 axes
Communication Ports	RS-232C, USB
Mounting	DIN rail mounting
Analog Inputs	Optional (via expansion units)
Analog Outputs	Optional (via expansion units)
Expansion Units	Digital I/O, Analog I/O, Temperature Sensor Units
Power Supply	100 to 240 VAC or 24 VDC
CPU Type	Various (E, N, and NA types)
