Remove a Memory Riser and DIMM

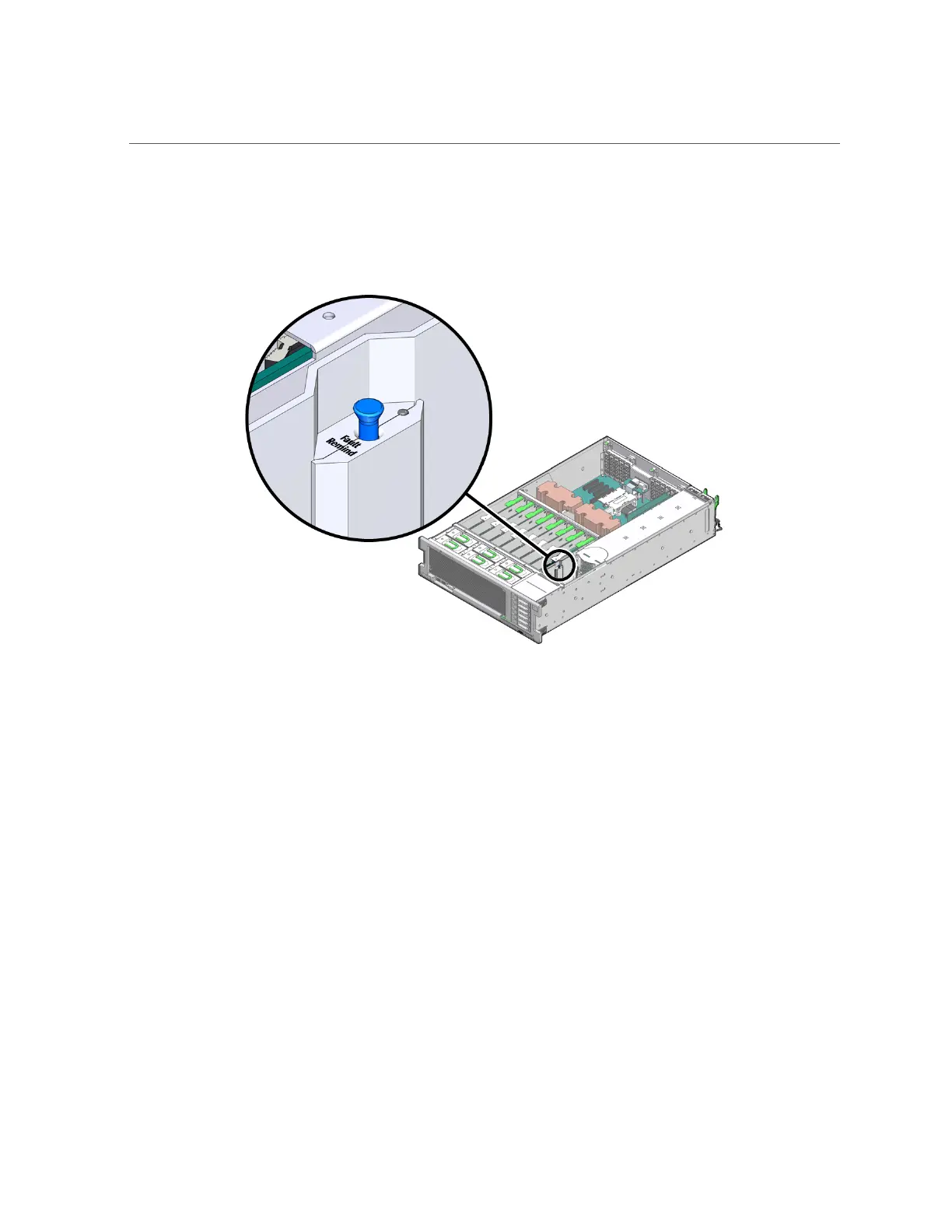

Identify the memory riser with the faulty DIMM by pressing the Fault Remind

button on the air divider as shown in the following figure.

■ If the memory riser Service Action Required LED is off, all DIMMs on this

riser are operating properly.

■ If the memory riser Service Action Required LED is on (amber), one or more

of the DIMMs installed on this riser is faulty or misconfigured.

104 SPARC T5-2 Server Service Manual • February 2017
