Install a DVD Drive

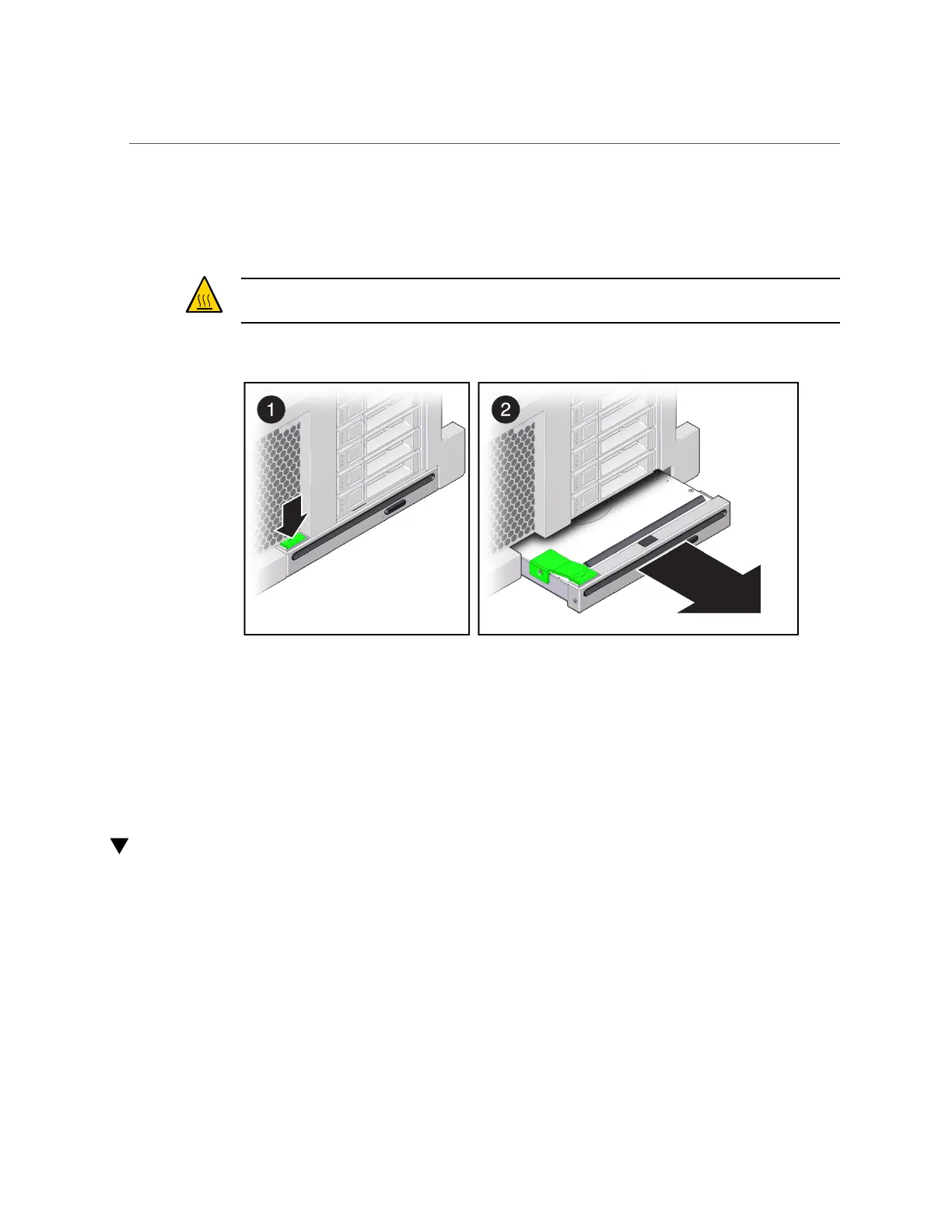

Push down on the latch on the top left corner of the DVD drive.

Slide the DVD drive out of the server.

Caution - Whenever you remove the DVD drive, you must replace it with another DVD drive.

Otherwise the server might overheat due to improper airflow.

Install a new DVD drive.

See “Install a DVD Drive” on page 114.

Related Information

■

“Install a DVD Drive” on page 114

Install a DVD Drive

A customer can perform this procedure. The server must be completely powered down

before performing this procedure. See “Component Service Categories” on page 57 for more

information about cold-service procedures.

Unpack the DVD drive.

Attach an antistatic wrist wrap and place the drive on an antistatic mat.

114 SPARC T5-2 Server Service Manual • February 2017
