Configure POST

Related Information

■

“POST Overview” on page 41

■

“Configure POST” on page 43

■

“Run POST With Maximum Testing” on page 45

Configure POST

See “Log In to Oracle ILOM (Service)” on page 35.

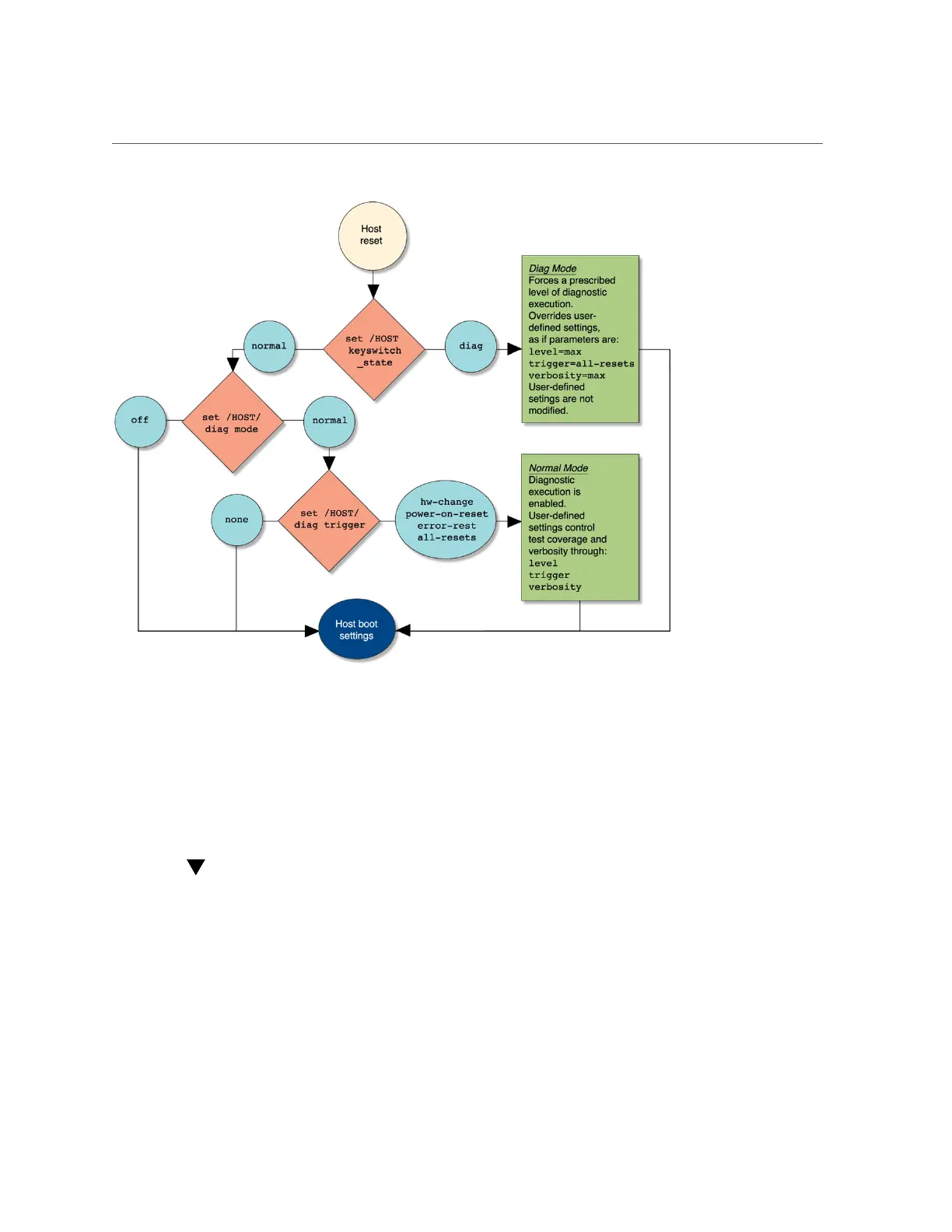

Set the virtual keyswitch to the value that corresponds to the POST

configuration you want to run.
