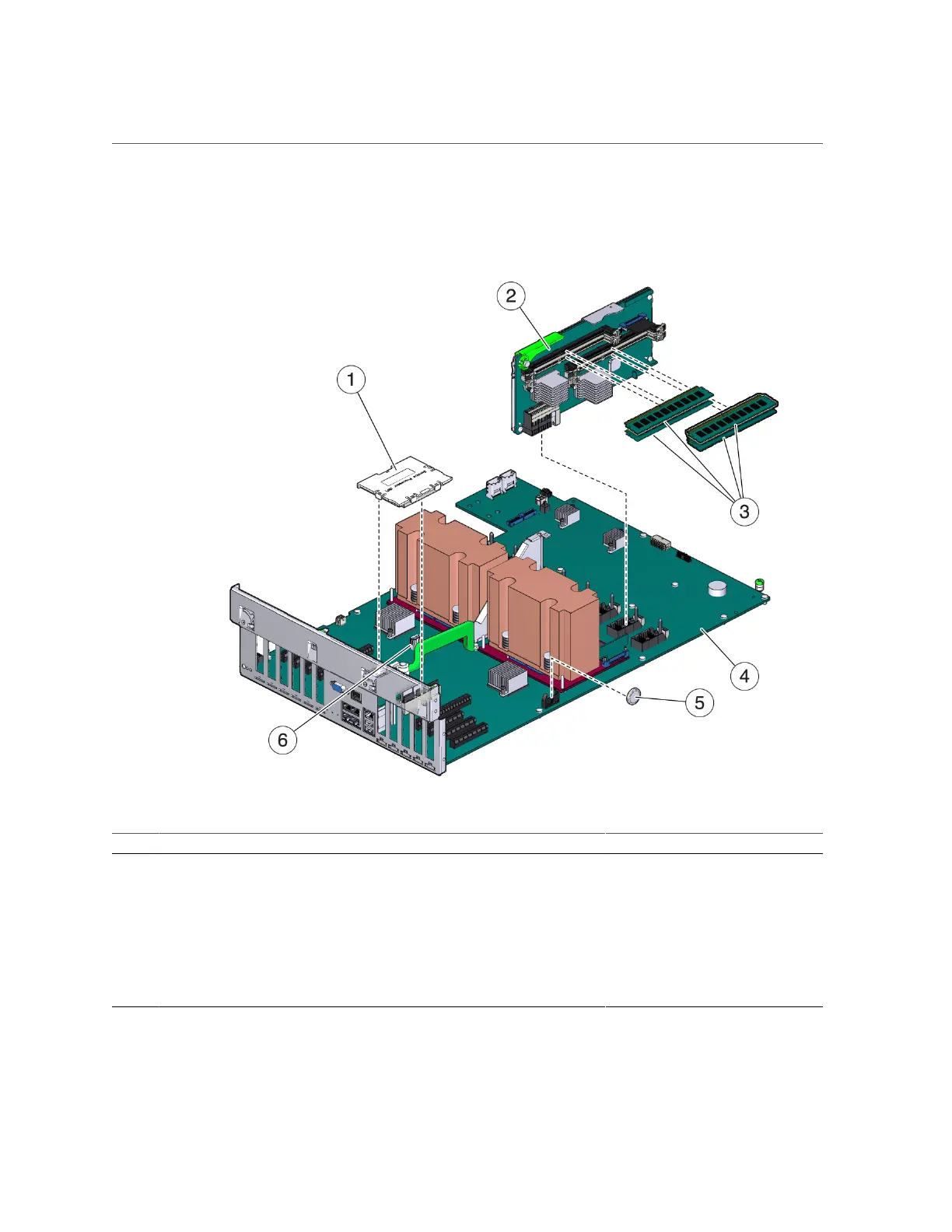

Motherboard Component Locations
Motherboard Component Locations
No. Component Oracle ILOM Target LInks
1 SP
/SYS/MB/SP
“Servicing the SP” on page 129
2 Memory riser
/SYS/MB/CMn/CMP/MRn
“Servicing Memory Risers and
DIMMs” on page 97
3 DIMMs
/SYS/MB/CMn/CMP/MRn/BOBn/CHn/D0
“Servicing Memory Risers and
DIMMs” on page 97
4 Motherboard
/SYS/MB
“Servicing the
Motherboard” on page 141
5 Battery
/SYS/MB/BAT
“Servicing the Battery” on page 117
