Install the SP
See “Internal Component Locations” on page 17.
4.
Remove the SP.
Note - If you are removing the SP because you are replacing the motherboard, set the SP aside
where it is protected from static. You must reinstall the SP on the new motherboard.
a.

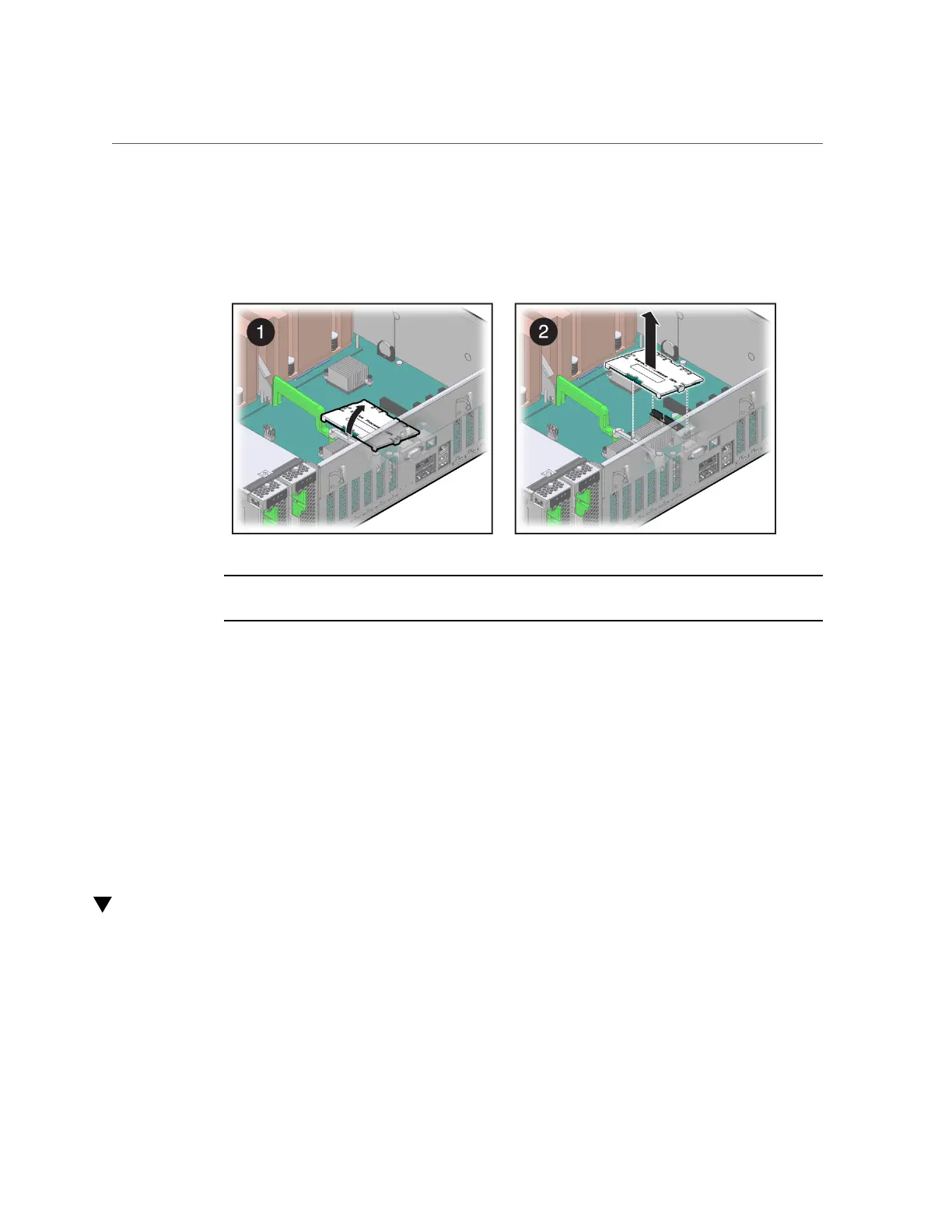

Grasp the SP by the two grasp points and lift up to disengage the SP from
the connectors on the motherboard (panel 1).
b.
Lift the SP up and away from the motherboard (panel 2).
5.
Install a new SP.
See “Install the SP” on page 131.
Related Information
■
“SP Firmware and Configuration” on page 129
■
“Install the SP” on page 131
Install the SP
1.
Remove the SP.
See “Remove the SP” on page 130.
Servicing the SP 131
