Install the SP
2.
Install the SP.
a.

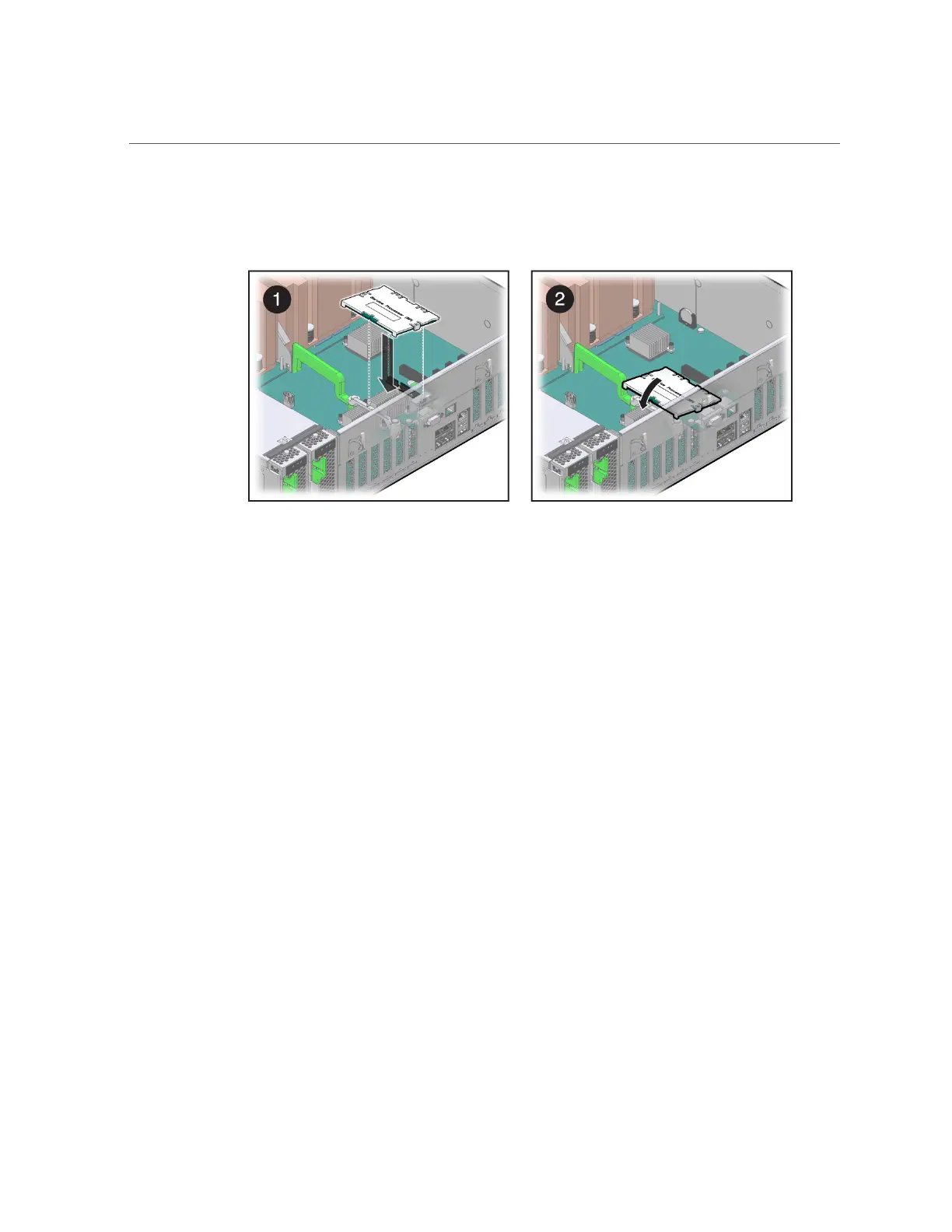

Lower the side of the SP with the Align Tab sticker at an angle down on the
SP tab on the motherboard (panel 1).
b.
Press the SP straight down until it is fully seated in its socket (panel 2).
3.
Return the server to an operational condition.
a.
Install the top cover.
See “Replace the Top Cover” on page 169.
b.
Return the server to the normal operating position.
See “Return the Server to the Normal Operating Position” on page 170.
c.
Reconnect the power cords to the power supplies.
See “Attach Power Cords” on page 172.
4.
Prior to powering on the server, connect a terminal or a terminal emulator (PC or
workstation) to the SP SER MGT port.
Refer to Server Installation for instructions.
If the replacement SP detects that the SP firmware is not compatible with the existing host
firmware, further action will be suspended and the following message will be displayed:
132 SPARC T5-2 Server Service Manual • February 2017
