Install a DVD Drive

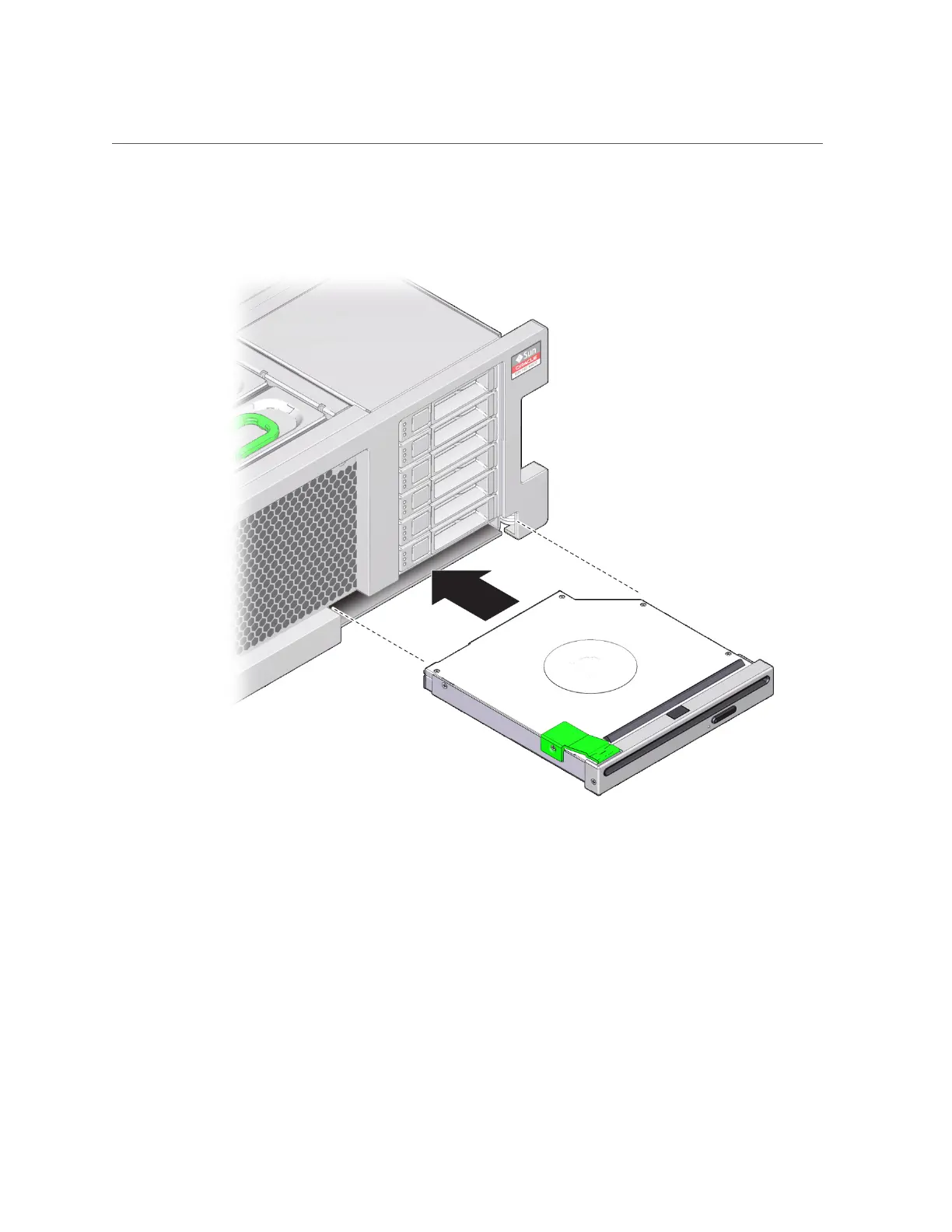

Slide the DVD drive into the front of the chassis until it seats.

Return the server to operation.

Return the server to the normal operating position.

See “Return the Server to the Normal Operating Position” on page 170.

Reinstall the power cords to the power supplies and power on the server.

See “Returning the Server to Operation” on page 169.

Servicing the DVD Drive 115
