Remove a PCIe Card or Filler Panel

■

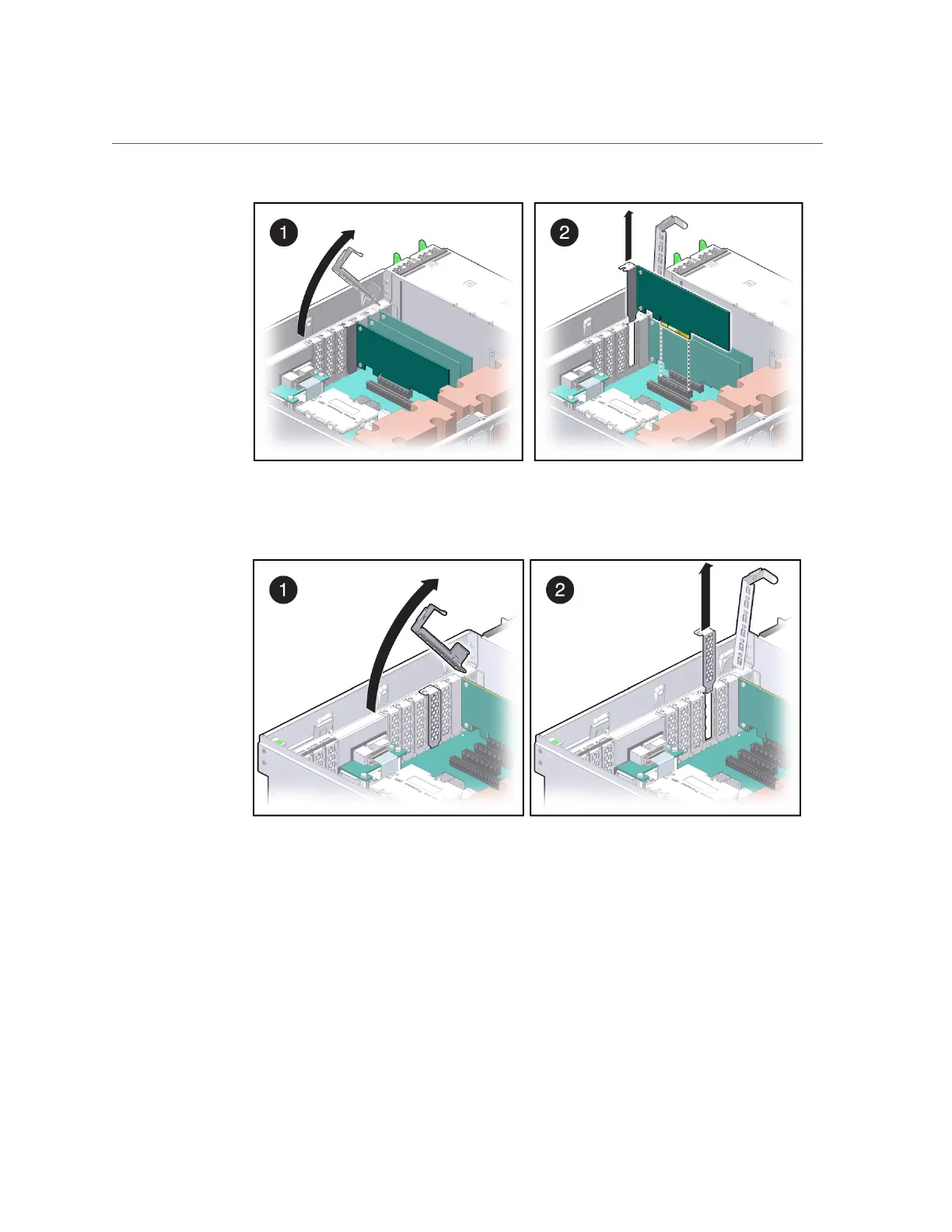

See these figures if you are removing a PCIe card slot filler panel.

Disengage the PCIe card slot crossbar from its locked position by pulling it

toward the interior of the chassis.

Rotate the crossbar to an upright position (panel 1).

Servicing PCIe Cards 125

Default Chapter5
- Table of Contents5
Using this Documentation11
- Product Documentation Library11
- Feedback11
Identifying Components13
- Front Panel Components (Service)13
- Rear Panel Components (Service)15
- Internal System Cables16
  - Related Information16
- Internal Component Locations17
- Motherboard Component Locations21
- I/O Component Locations22
- Power Distribution and Fan Module Component Locations24
- System Schematic25
- Component Task Reference28
Detecting and Managing Faults31
- Understanding Diagnostics31
- Interpreting Leds36
  - Front Panel Controls and Leds37
  - Rear Panel Controls and Leds39
- Configuring POST40
- Managing Faults46
- Interpreting Log Files and System Messages50
Preparing for Service53
- Safety Information53
- Tools Needed for Service55
- Filler Panels55
- Find the Server Serial Number56
- Locate the Server57
- Component Service Categories57
- Removing Power from the Server58
- Accessing Server Components62
- Attachment of Devices During Service68
- Related Information68
Servicing Drives69
- Drive Leds70
- SPARC T5-2 Server Service Manual • February70
- Locate a Faulty Drive71
- Remove a Drive71
- Remove a Drive Filler Panel74
- Install a Drive76
- Install a Drive Filler Panel77
- Verify Drive Functionality78
Servicing Fan Modules81
- Fan Module Leds82
- Locate a Faulty Fan Module83
- Remove a Fan Module83
- Install a Fan Module86
- Verify Fan Module Functionality87
Servicing Power Supplies89
- Power Supply Leds89
- Locate a Faulty Power Supply91
- Remove a Power Supply91
- Install a Power Supply93
- Verify Power Supply Functionality95
Servicing Memory Risers and Dimms97
- Memory Riser and DIMM FRU Names97
- Memory Riser and DIMM FRU Names98
- Memory Riser and DIMM Configuration99
- DIMM Rank Classification Labels100
- Locate a Failed DIMM (Leds)100
- Locate a Failed DIMM (Oracle ILOM)102
- Remove a Memory Riser and DIMM103
- Install a DIMM and a Memory Riser106
- Enable and Verify Newly Installed Dimms109
Servicing the DVD Drive113
- Remove a DVD Drive113
- Install a DVD Drive114
Servicing the Battery117
- Remove the Battery117
- Install the Battery118
Servicing Pcie Cards121
- Pcie Card Configuration121
- I/O Root Complex Connections122
- Remove a Pcie Card or Filler Panel123
- Install a Pcie Card or Filler Panel126
Servicing the SP129
- SP Firmware and Configuration129
- Remove the SP130
- Install the SP131
- Verify SP Functionality133
Servicing the Fan Board135
- Remove the Fan Board135
- Install the Fan Board137
- Verify Fan Board Functionality139
Servicing the Motherboard141
- Remove the Motherboard141
- Install the Motherboard147
- Reactivate RAID Volumes153
- Verify Motherboard Functionality155
Servicing the Drive Backplane157
- Remove the Drive Backplane157
- Install the Drive Backplane159
- Verify Drive Backplane Functionality161
Servicing the PS Backplane163
- Remove the PS Backplane163
- Install the PS Backplane165
- SPARC T5-2 Server Service Manual • February166
- Verify PS Backplane Functionality167
Returning the Server to Operation169
- Replace the Top Cover169
- Return the Server to the Normal Operating Position170
- Attach Power Cords172
- Power on the Server (Oracle ILOM)172
- Power on the Server (Power Button)173
Glossary175
Index181
