Oracle SPARC T5-2 User Manual

Install the Fan Board
4.
Reinstall the fan board.
a.

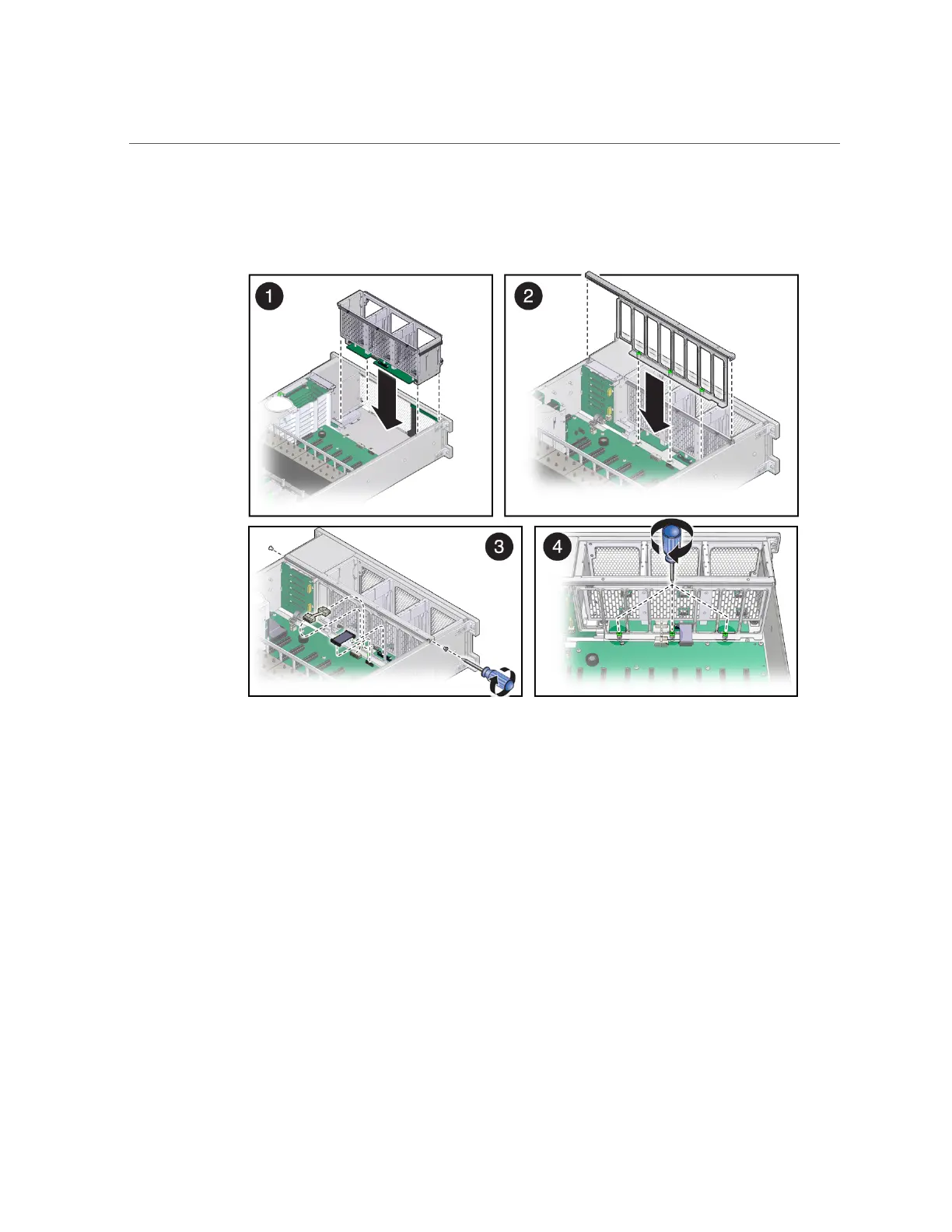

Insert the fan board into the chassis, moving it down and toward the front
(panel 1).
b.
Reposition the front memory riser guide, routing the fan board and power
cable through the riser guide (panels 2 and 3).
c.
Plug the fan board cable and power cable into the connectors on the
motherboard (panel 3).
d.
Secure the fan board by reinserting and tightening the two screws on each
side of the outside of the chassis (panel 3).
e.
Tighten the three captive screws to hold the front memory riser guide in
place (panel 4).
138 SPARC T5-2 Server Service Manual • February 2017
