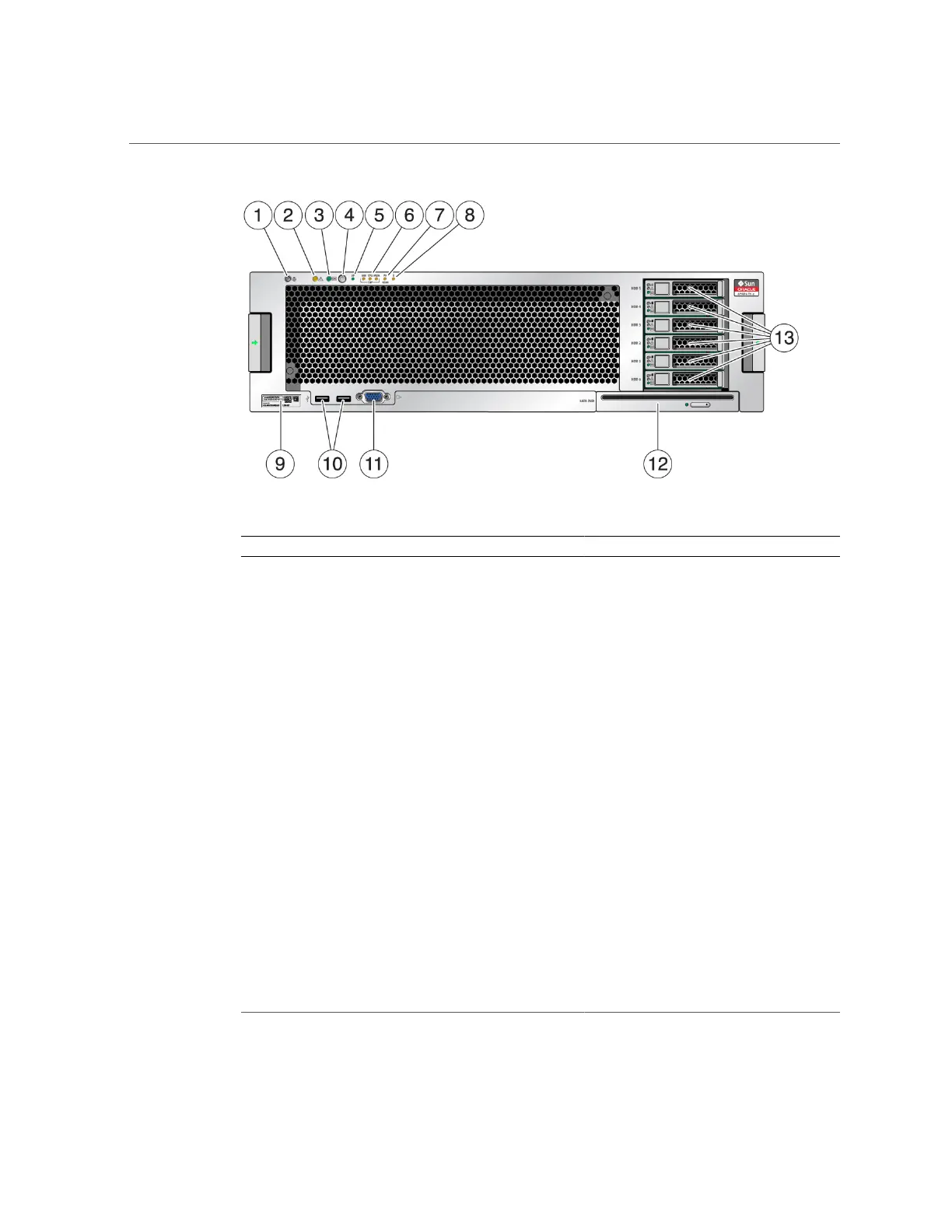

Front Panel Components (Service)
No. Description Links
1 Locator LED/Locator button (white) “Front Panel Controls and
LEDs” on page 37
2 Service Action Required LED (amber) “Front Panel Controls and
LEDs” on page 37
3 Power/OK LED (green) “Front Panel Controls and
LEDs” on page 37
4 Power button “Front Panel Controls and
LEDs” on page 37
5 SP OK/Fault LED (green or amber) “Front Panel Controls and
LEDs” on page 37
“Servicing the SP” on page 129
6 Three Service Action Required LEDs (amber) for Fan
Module (FAN), Processor (CPU), and Memory (MEM)
“Servicing Fan Modules” on page 81
“Servicing the Motherboard” on page 141
“Servicing Memory Risers and
DIMMs” on page 97
7 Power Supply (PS) Fault (Service Action Required)
LED (amber)
“Servicing Power Supplies” on page 89
8 Overtemperature LED (amber) “Front Panel Controls and
LEDs” on page 37
9 Serial number
10 Two USB 2.0 connectors Server Installation, USB port
11 HD-15 video connector Server Installation, video port
12 SATA DVD drive “Servicing the DVD Drive” on page 113
14 SPARC T5-2 Server Service Manual • February 2017
