Remove the Motherboard
12.
Remove the motherboard.
a.

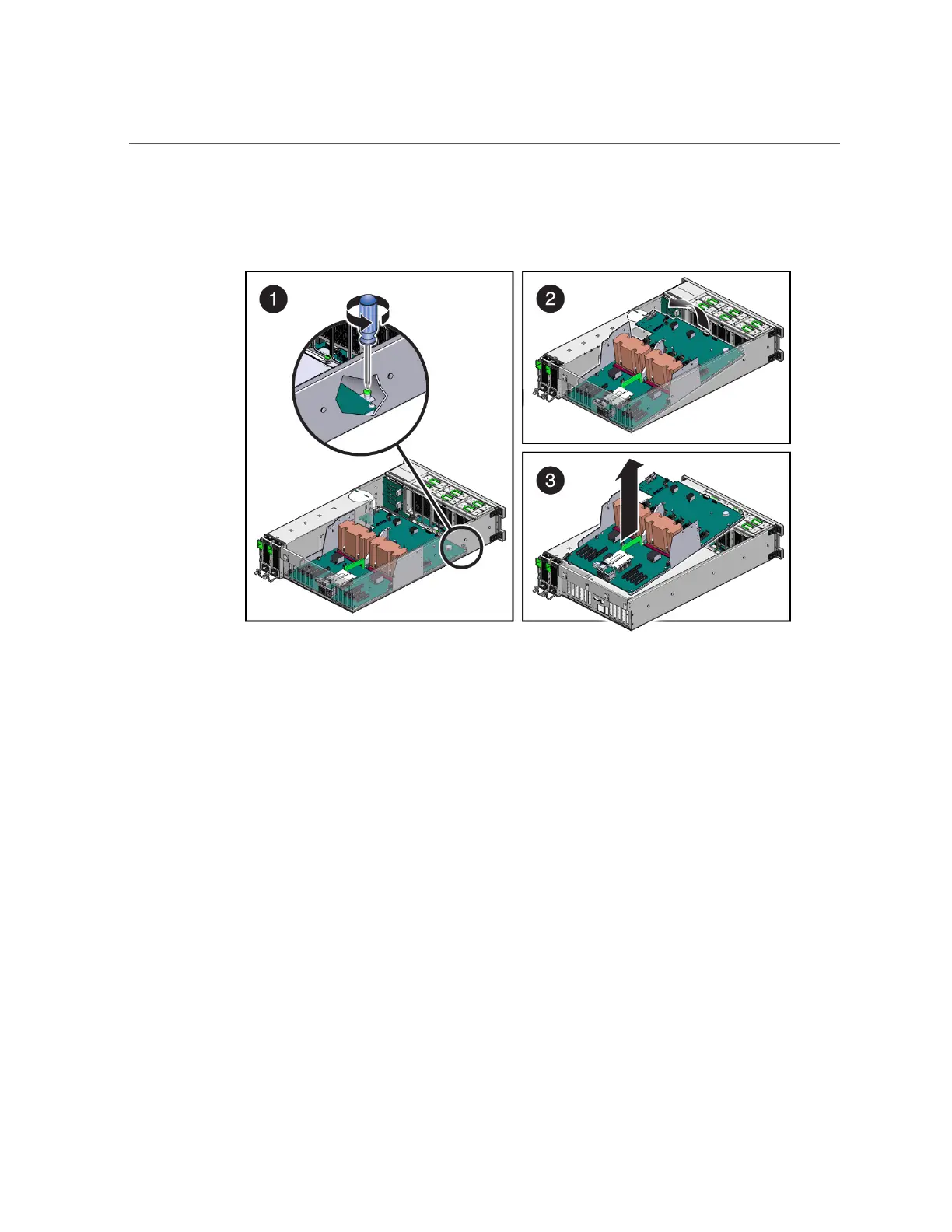

Loosen the captive screw (in the corner near the fans) that secures the
motherboard to the chassis (panel 1).
b.
Grasp the handle on the motherboard and slide it toward the front of the
chassis.
Tilt up the end of the motherboard that is near the front of the chassis.
c.
Lift the motherboard out of the chassis.
Ensure that remaining cables do not get caught on edges of the motherboard.
13.
Remove the service processor from the motherboard so you can reinstall it on
the new motherboard.
See “Remove the SP” on page 130.
14.
Install a new motherboard.
See “Install the Motherboard” on page 147.
146 SPARC T5-2 Server Service Manual • February 2017
