Install the Motherboard

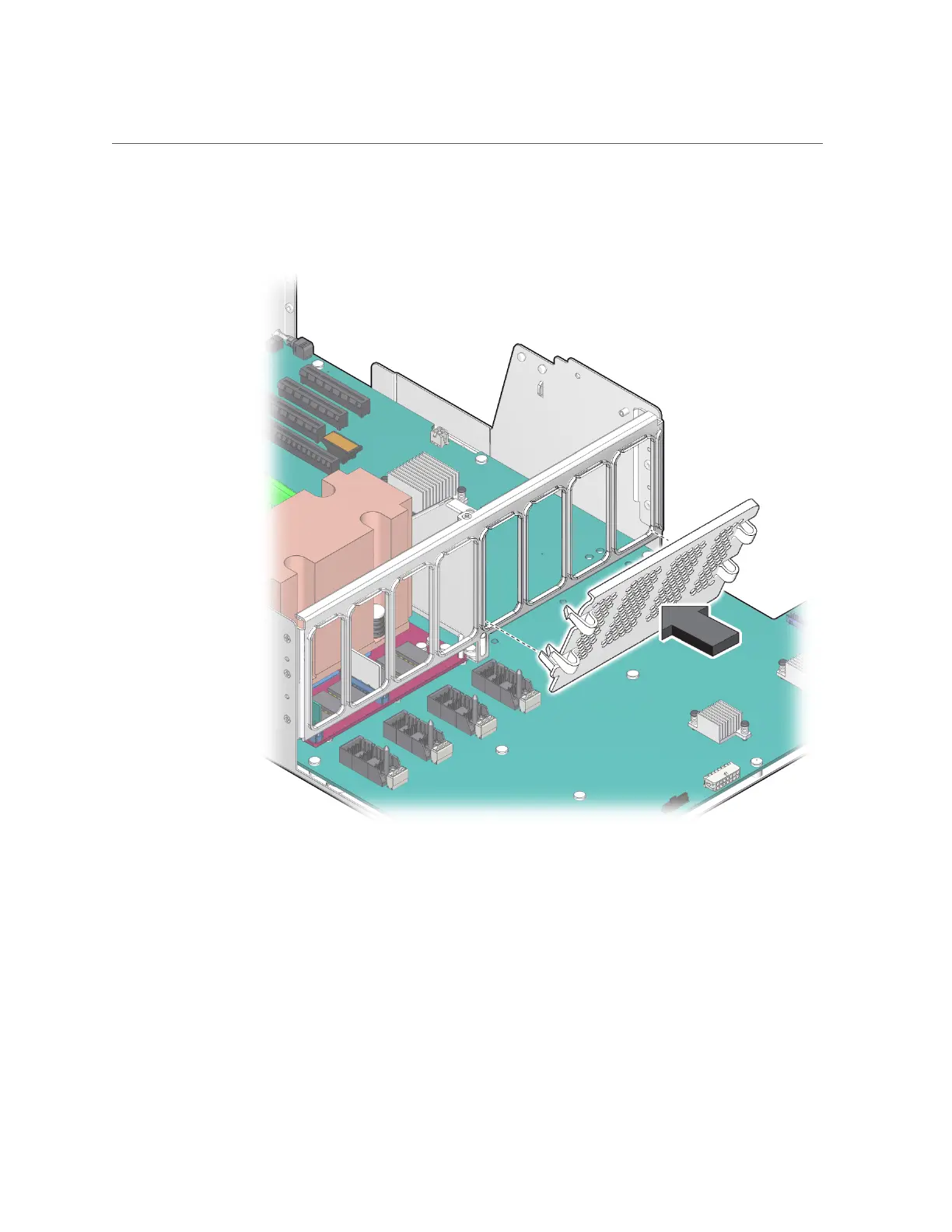

The four hoops on the airflow baffle face away from the center bracket.

b.

Set the lower guide in the corner of the outer unused slots.

Servicing the Motherboard 149
