Remove the Drive Backplane
See “Remove a Drive” on page 71.
Note - Note the positions of the drives so you can return them to the correct slots.
3.
Remove the DVD drive.
See “Remove a DVD Drive” on page 113.
4.
Remove one or more memory risers to have easier access to components in the
drive area.
See “Remove a Memory Riser and DIMM” on page 103.
5.
Remove the System Remind button assembly (air divider) by lifting it up and
away from the power supplies.
6.
Remove the drive backplane.
a.

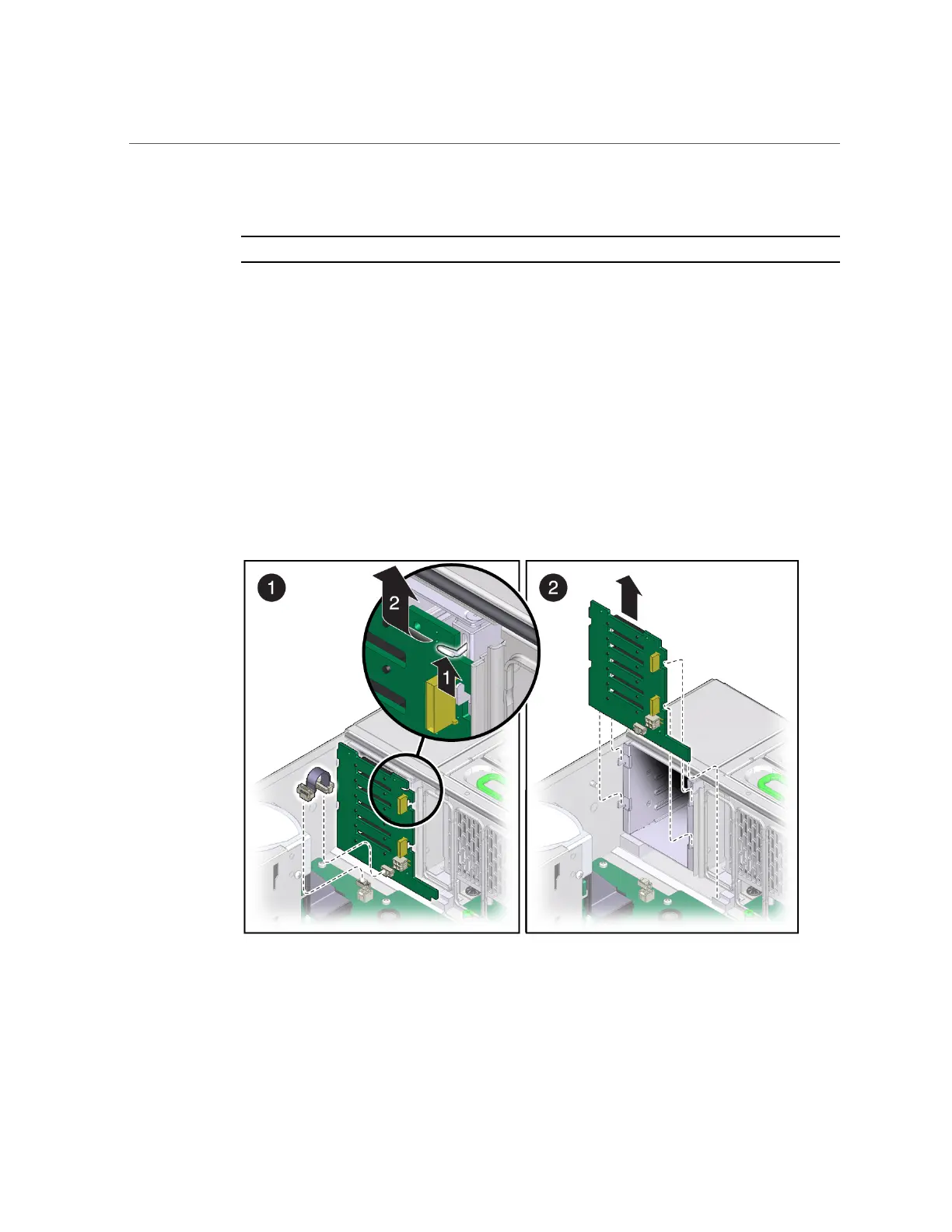

Unplug the two SAS cables, power cables, and ribbon cable from the drive
backplane (panel 1).
158 SPARC T5-2 Server Service Manual • February 2017
