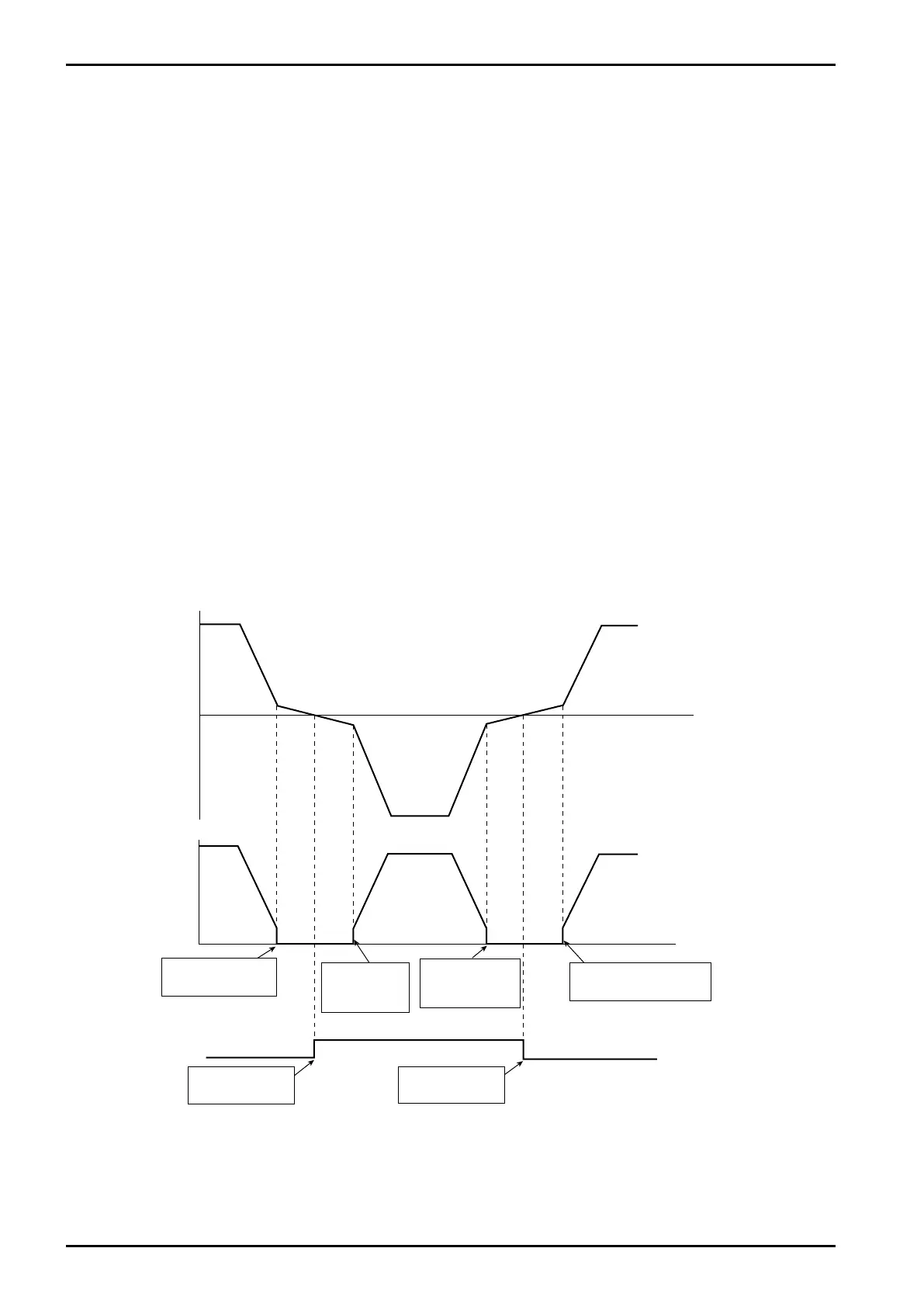

9.12.3 Bidirectional pulse output
By allowing status output signal to provide flow direction information, the transmitter distinguishes
between pulse outputs in the forward and reverse flow, and counts up pulses independently. (Hence, it
requires on the part of measuring instrument a circuit to distinguish the directions of flow.) To utilize this
function, you need to set up the following in addition to settings of pulse outputs 1 and 2.
(1) Setup procedure
① Status output function assignment (Function) (See 9.2.5 Transition chart (4) [No. 2-4-5-1].)
・Select Bi Direction.
② Active output of status output (Mode) (See 9.2.5 Transition chart (4) [No. 2-4-5-3].)
Set the active output status of status output.
・Off Active: Output is in the Short in the forward fluid flow.
・On Active: Output is in the Open in the forward fluid flow.
(2) An example of settings and assignments
Status output function assignment (Function): Bi Direction
Active output of status output (Mode): Off Active
Pulse output 1 assignment (Assign): Mass Flow
Frequency of pulse output 1 at full scale flowrate (Freq Factor): 1000 [Hz]
Full scale flowrate of pulse output 1 (Rate Factor): 100.0 [kg/min]
Low flow cutoff of pulse output 1 (Lowcut): 10.0 [%]
