Oval ALTI mass CA00A - Ferrule Fitting Type (Integrally and Separately Mounted Models)

L
--
740
--
28
--
E

5.2.3 Ferrule fitting type (integrally and separately mounted models)
●
Integrally mounted type
H
φ
D
C
L
E
Cableentry
G3/4
Flowdirection
Ferrulefitting
230
64 127
60
φ134
●
Separately mounted type
H
C
L
E
φ
D
φ107
Terminalbox
Ferrulefitting
H
C
Cableentry
G3/4(G1/2:TIIS)
Flowdirection
Dimensions in millimeters
Model Nom.size L H C E φD App. Weight (kg)
CS010 15mm ※1 426 390 340 69 34 8
CS015 15mm 464 390 340 80 34 9
CS025 1・1/2S 529 423 353 88 50.5 16
CS040 2S 716 439 359 112 64 24
CS050 2・1/2S 882 474 372 153 77.5 36
CSR50 3・1/2S 1032 474 372 153 106 38
CS080 Optionally available. Consult the factory.
Dimensions in millimeters
Model Nom.size L H C E φD App. Weight (kg)
CS010 15mm ※1 426 246 197 69 34 5
CS015 15mm 464 246 197 80 34 6
CS025 1・1/2S 529 280 210 88 50.5 13
CS040 2S 716 296 210 112 64 21
CS050 2・1/2S 882 332 229 153 77.5 33
CSR50 3・1/2S 1032 332 229 153 106 35
CS080 Optionally available. Consult the factory.

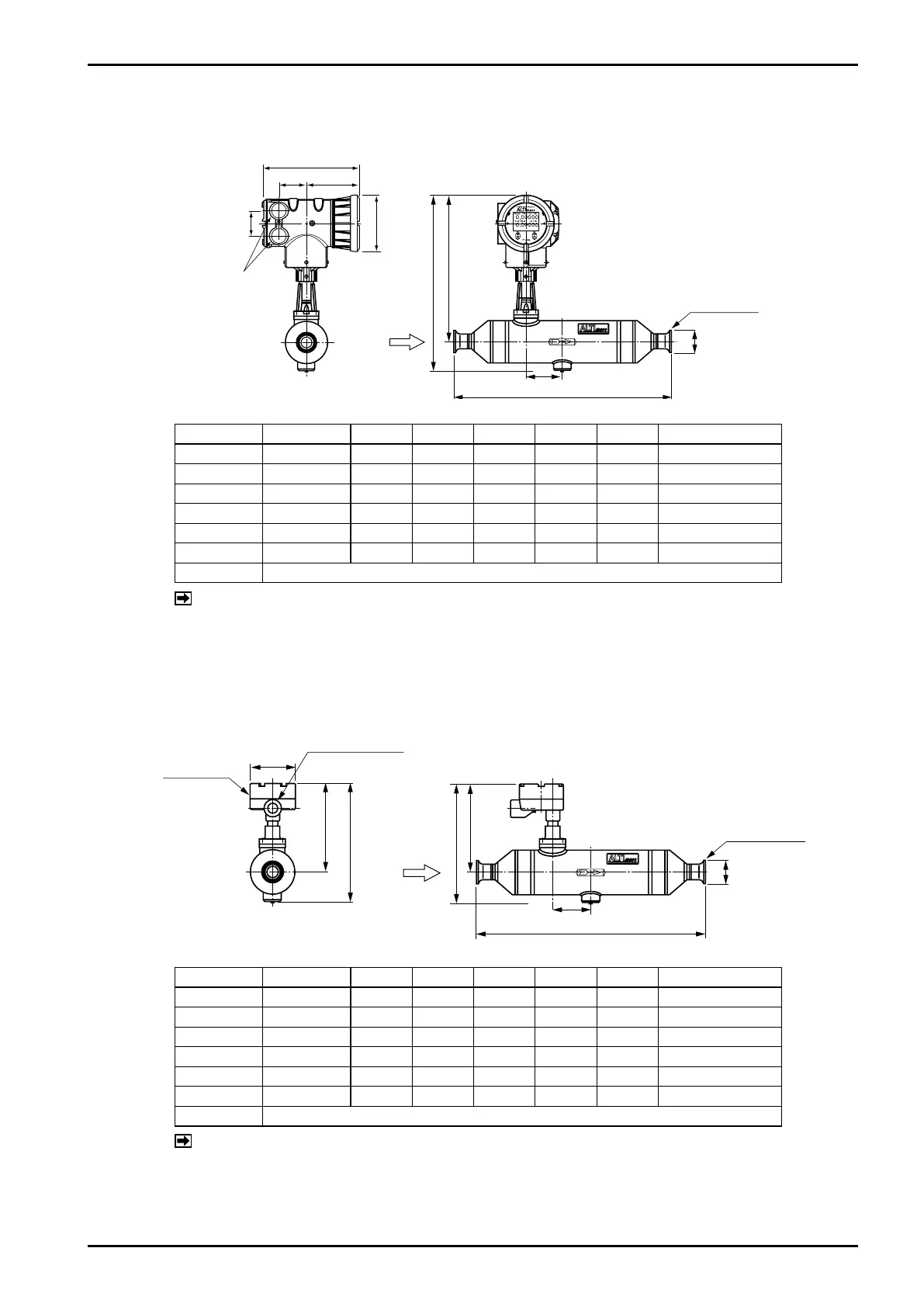

Fig. 5.19 Outline Dimensions of Integrally Mounted, Ferrule Type
Fig. 5.20 Outline Dimensions of Separately Mounted, Ferrule Type
※ 1：10mm for the titanium tube type.
※： Ferrule connections of models CS010 and CS015 comply with
ISO2852.
※： Nominal size S: Inch Sanitary version
NOTE:
NOTE:
※ 1：10mm for the titanium tube type.
※： Ferrule connections of models CS010 and CS015 comply with
ISO2852.
※： Nominal size S: Inch Sanitary version
