11. EX-INFORMATION

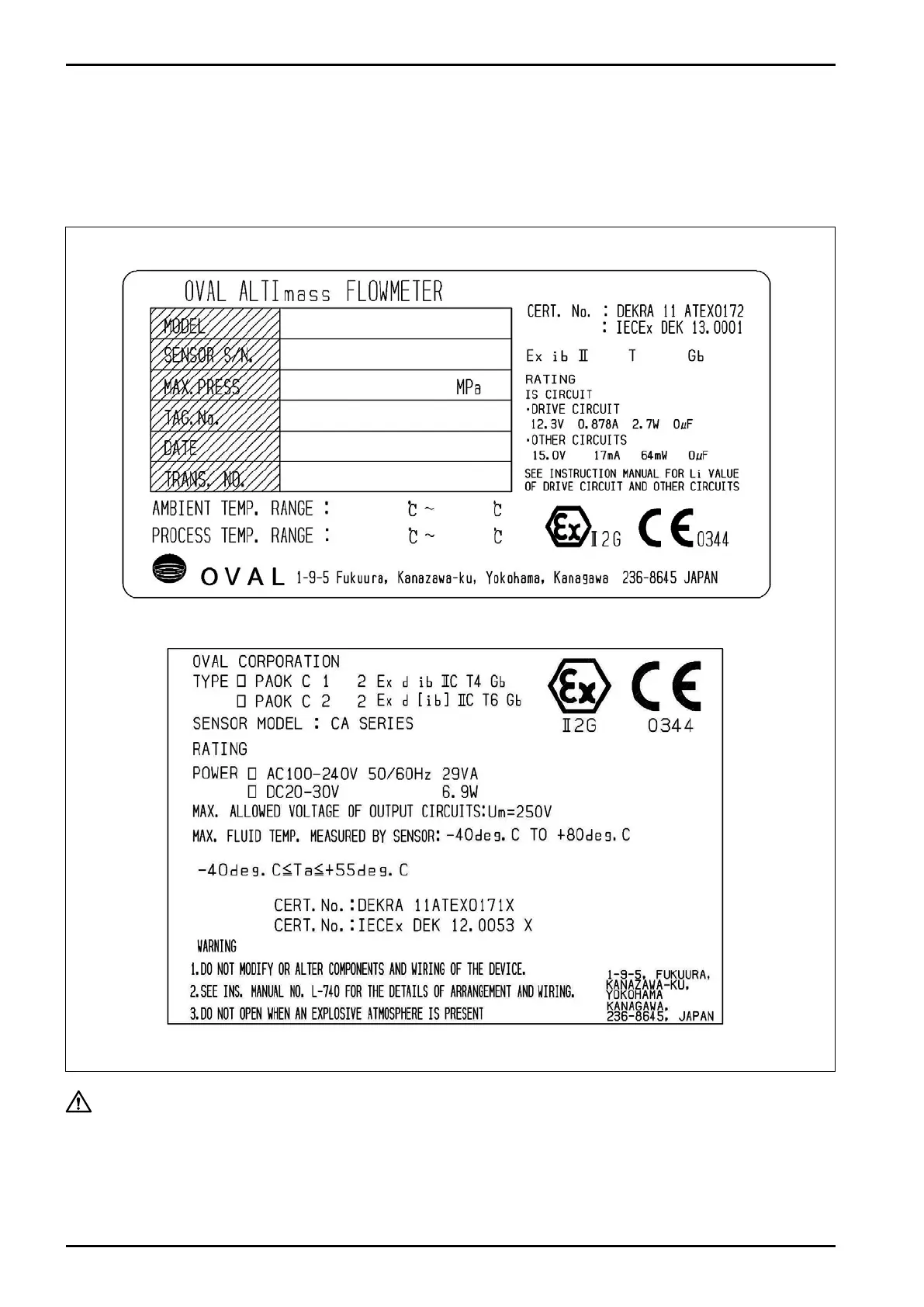

11.1 Nameplates
Explosionproof pertinent information is described (as“PRODUCT”or“Ex”) on the label attached on
the product.
SENSOR SIDE
TRANSMITTER SIDE
1. Do not modify or alter components and wiring of the device.
2. See Section 7.10 Wiring Diagram for the details of arrangement and wiring.
3. AFTER-DE-ENERGIZING, delay 3 minutes before opening
Fig.11.1
