Oval ALTI mass CA00A - Type S Physical Orientation

L
--
740
--
28
--
E
0
IN
IN
OUT
OUT

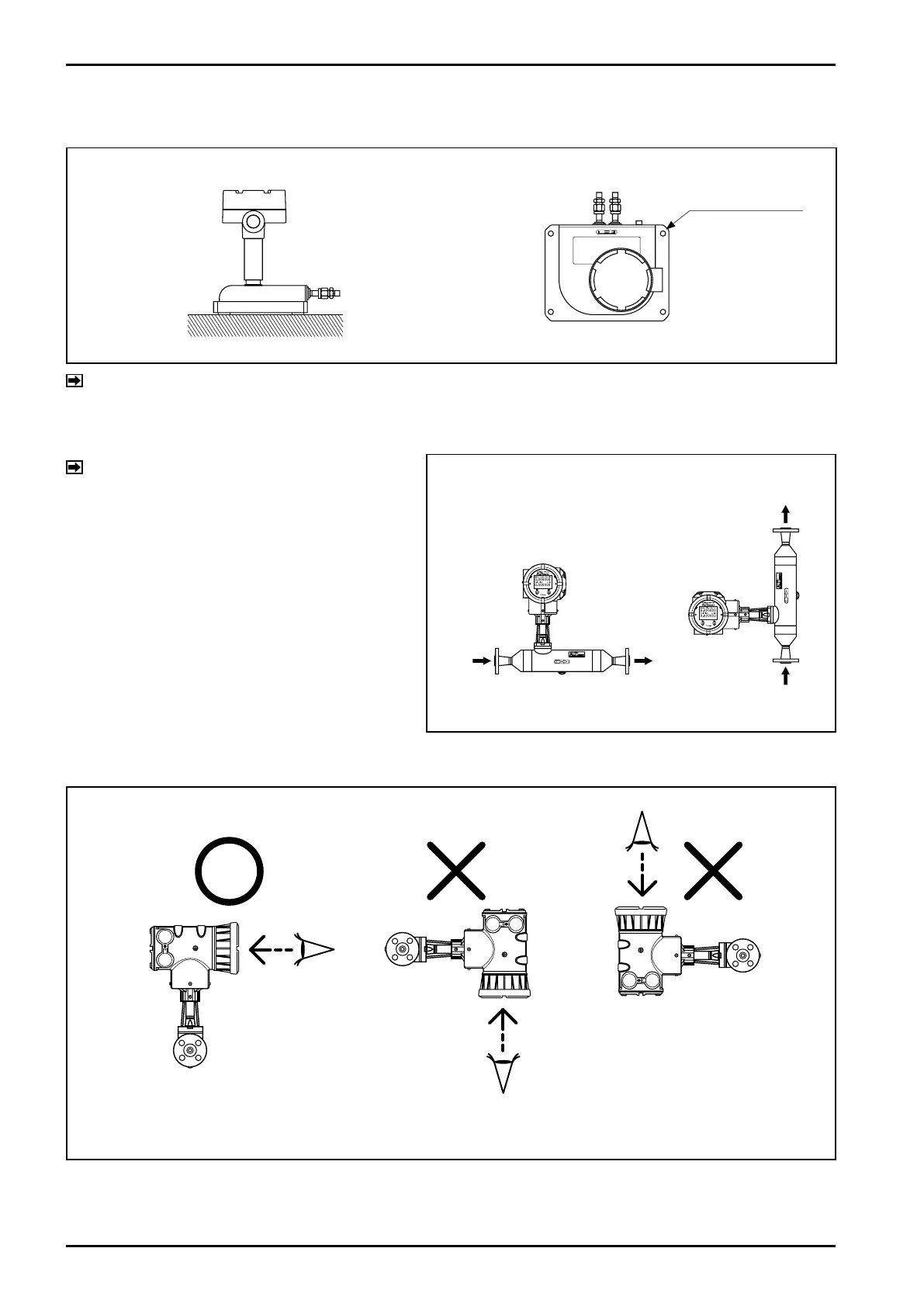

6.2.2 Type S physical orientation
(4) Transmitter installation is correct if its display face is not in the horizontal plane.
Horizontal line Vertical line
Fig. 6.4
Fig. 6.5
View from bottomView from side View from top
(5) For the orientation of separately mounted transmitter, see 6.9 Separately Mounted Transmitter
Installation.
●
CA00A and CA001
Installation on a bench or wall are acceptable. We recommend the following orientations:
NOTE: For wall mounting, secure the body with bolts, making use of sensor unit fitting holes.
◆
Installation on a bench
◆
Installation on a wall
4-φ9 Fitting hole
(Fits M8 bolt.)
Fig. 6.3
(1) The flowmeter may be installed either
in a horizontal line or a vertical line.
(2) Where cleansing is required or where
air bubble entrapment is likely, we
suggest installation in a vertical run.
(3) If cable entry points upwards, take
necessary measures to prevent rain
and water from entering the meter.
Please refer to Item-13 for EHEDG
Authentication Article.
NOTE:
