Oval ALTI mass CA00A - Low Temperature Explosionproof Service Models); Titanium Tube Type (Integrally and Separately Mounted Models)

L
--
740
--
28
--
E

5.2.2 Titanium tube type (integrally and separately mounted models）
●
Separately mounted models
●
Integrally mounted models
L
E
230
64
127
60
φ134
φF
φG
C
H
L
E
φ107
φF
φG
C
H
Cableentry
G3/4
Cableentry
G3/4
Flowdirection
Flowdirection
Terminalbox

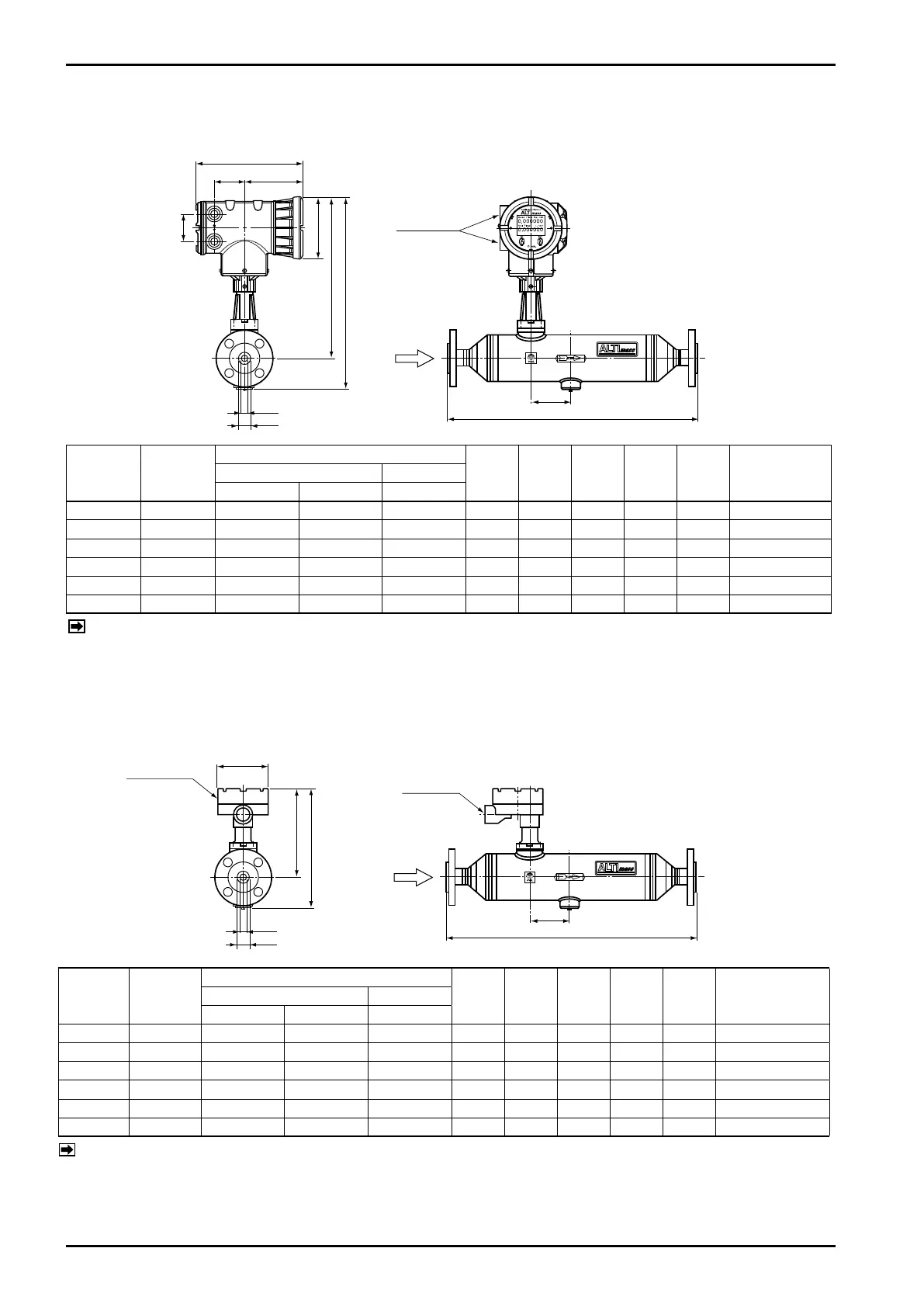

Fig. 5.17 Outline Dimensions of Integrally Mounted, Titanium Tube Type
Model
Nom.
size
L
H C φF φG E
App. Weight
kg
(JIS 10K)
JIS ASME/JPI
10K 20K 150
CS010 10（1/2"） 426 452 458 390 340 6.3 11.4 69 10
CS015 15（1/2"） 464 490 496 390 340 9.3 16.8 80 11
CS025 25（1"） 529 555 570 423 353 15.4 26.6 88 18
CS040 40（1・1/2"） 716 733 749 439 359 22.3 40.4 112 28
CS050 50（2"） 882 906 919 474 372 30.5 52.6 153 38
CSR50 80（3"） 1032 1046 1073 474 372 30.5 77.8 153 40
Model
Nom.
size
L
H C φF φG E
App. Weight
kg
(JIS 10K)
JIS ASME/JPI
10K 20K 150
CS010 10（1/2"） 426 452 458 246 197 6.3 11.4 69 7
CS015 15（1/2"） 464 490 496 246 197 9.3 16.8 80 8
CS025 25（1"） 529 555 570 280 210 15.4 26.6 88 15
CS040 40（1・1/2"） 716 733 749 296 216 22.3 40.4 112 25
CS050 50（2"） 882 906 919 332 229 30.5 52.6 153 35
CSR50 80（3"） 1032 1046 1073 332 229 30.5 77.8 153 37
L
E
230
64
127
60
φ134
φF
φG
C
H
L
E
φ107
φF
φG
C
H
Cableentry
G3/4
Cableentry
G3/4
Flowdirection
Flowdirection
Terminalbox
Dimensions in millimeters
Dimensions in millimeters
NOTE: Approximate weights in the table above are of JIS 10K.
For specifications of other flange ratings, see the approval drawing (or customer
,
s acceptance
specification).
Loose flange is applied.
NOTE: Approximate weights in the table above are of JIS 10K.
For specifications of other flange ratings, see the approval drawing (or customer
,
s acceptance
specification).
Loose flange is applied.
Fig. 5.18 Outline Dimensions of separately mounted models, Titanium Tube Type
