9.4 Parameter Selection

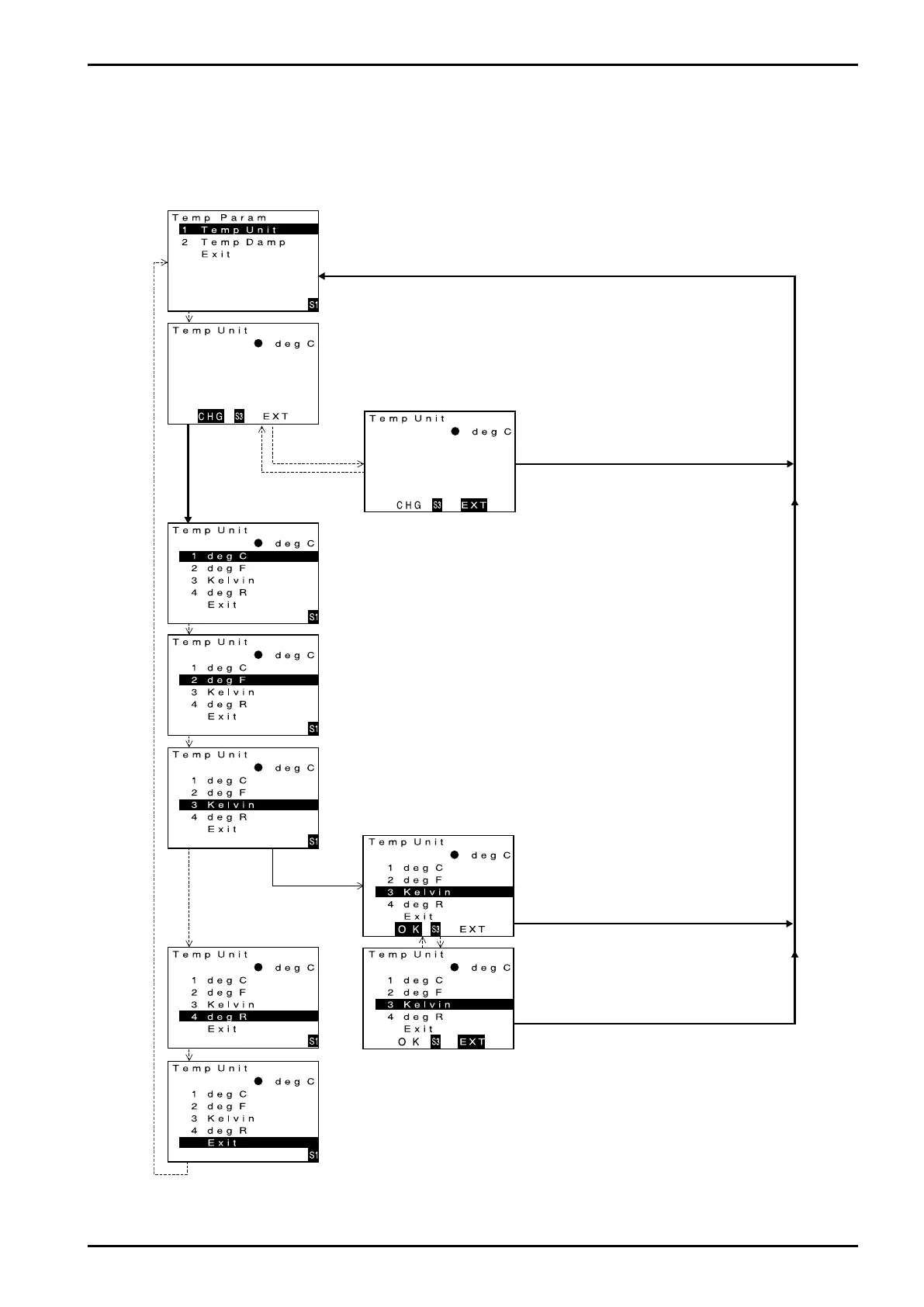

The procedure to select a menu item of parameters is described here. As an example, selecting "Kelvin"
in temperature unit setting is covered in this section. A similar procedure applies to setting up other
parameters.
(1) Bring up the parameter item to be configured.
Operate the view until the desired menu item to be set up appears.
(For the procedure to view individual items, see 9.2.2 thru 9.2.7 Transition chart.)
Move the cursor to the desired item, operate "SEL 1" to bring up temperature unit setup
screen.
Click "SEL1".
Click "SEL3".
Click "ENT".
Click "ENT".
Click "ENT".
Click "ENT".
Click "ENT".
Click "ENT".
Click "ENT".
Click "SEL3".
(2) Decide whether to change this parameter or not.
If you want to modify the current parameter shown, operate "SEL 3" to proceed to
the next screen.
If the current setting is acceptable, click "ENT" and "SEL 3" to return to the menu
select screen.
(3) A change in option select screen
① Click "ENT" twice to select the desired item (Kelvin).
(To continue scrolling, hold down "ENT" key.)
② Confirm that the desired item (Kelvin) is selected.
To activate this setting (Kelvin), click "SEL 1".
To abort setting, click "ENT" twice and select Exit.
③ If it is desired to exit the unit select screen. click "ENT".
The window returns to the initial menu select screen.
(4) Finalizing the menu item.
① If the setting (Kelvin) is O.K., operate "SEL 3".
Setting is complete and it returns to the initial
menu select screen.
To abort setting, click "ENT" twice. (The screen
below appears.)
Click "SEL3".
Operate "SEL3".
② To abort setting, click "SEL 3".
The unit remains unchanged and it returns to
the initial menu select screen.
To abort setting, click "ENT". (Next screen
appears.)
