Oval ALTI mass CA00A - Separately Mounted Models

L
--
740
--
28
--
E

5.3.2 Separately mounted models
φ107
Cableentry
G3/4(G1/2:TIIS)
Groundscrew
A
h1（h1）
H
（H）
Ferrulefitting
φD
L
98
Terminalbox
L
Flange
Flowdirection
Process connection: A in mm; S (sanitary) in inches.
※: Dotted lines show sensor unit envelops of CB040 and 050.
Dimensions in millimeters
Model
Ferrule fitting
Process connection L φD
App. Weight
(kg)
CB006
Ferrule 10A 333 34 2.6
CB010
Ferrule 15A 380 34 3.5
CB015
Ferrule 15A 476 34 7.3
CB025
Ferrule 25 (ISO), IDF 1S 559 50.5 8.5
CB040
Ferrule 38 (ISO), IDF 1.5S 606 50.5 26.7
CB050
Ferrule 51 (ISO), IDF 2S 606 64 26.7

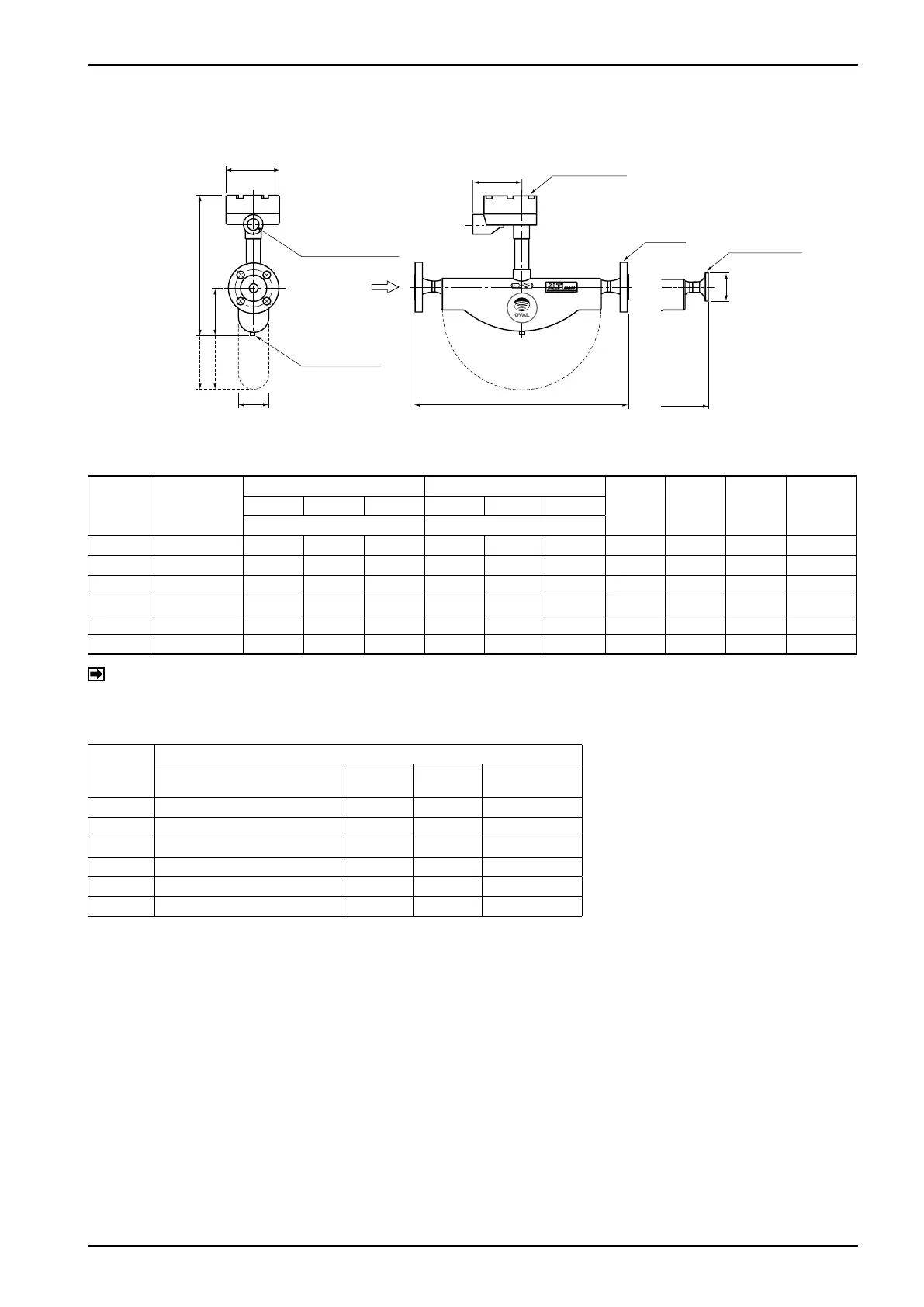

Fig. 5.22 Outline Dimensions of Separately Mounted Sensor Unit
Model Nom. size
JIS ASME/JPI
H h1 A
App. Weight
kg
（JIS 10K）
10K 20K 30K 150 300 600
L L
CB006 10（1/2˝） 343 343 361 369 378 390.5 257 94 59 4.7
CB010 15（1/2˝） 380 380 400 406 415 427.5 254 158 59 5.0
CB015 15（1/2˝） 486 486 506 512 521 533.5 345 168 91 9.0
CB025 25（1˝） 569 569 589 601 613 626 340 175 91 11.6
CB040 40（1・1/2˝） 626 626 654 660 673 688.5 491 323 125 30.2
CB050 50（2˝） 626 636 674 663 676 695 491 323 125 30.6
NOTE: Approximate weights in the table above are of JIS 10K.
For specifications of other flange ratings, see the approval drawing (or customer
,
s acceptance
specification).
