740

11

System Configuration

11.2 About FOUNDATION Fieldbus and FISCO System of PROFIBUS

If the 21st line of product notation is“2: FOUNDATION Fieldbus”or“3: PROFIBUS”, the allowable

parameters of converter connecting to protected fieldbus (FISCO) system are as follows;

Ui = l7.5V, Ii = 380mA, Pi = 5.32W, Ci = negligible value, Li = 10μH

Connection to fieldbus system corresponding to FISCO model becomes possible by the input terminal

(TB4) of converter.

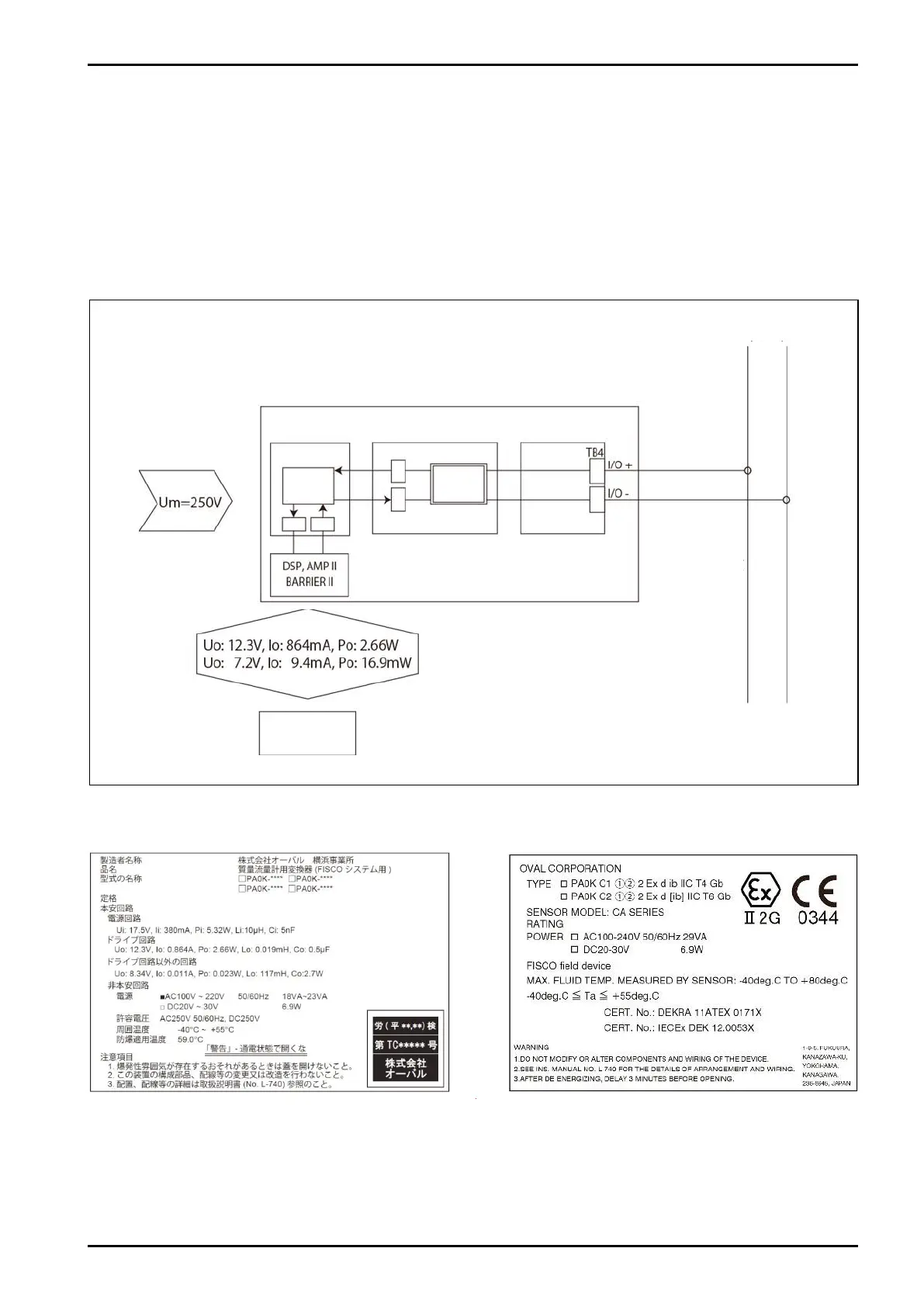

Converter label to show the FF and PROFIBUS speftcations

Fig.11.3

TIIS Explosionproof

ATEX Explosionproof

PAOKTRANSMITTER

CPUIIBOARD

FB-ABOARD

TERMINALBOARD

MAIN

COU

SENSOR

CA,CS,CB

FBK-2

BOARD

Ui:17.5V

Ii:380mA

Pi:5.32V

Ci:NEGLIGIBLELOW

Li:100μH

BUSLINE

(FISCO)
