Oval ALTI mass CA00A - Sanitary Fitting Type; Screw-In Type

L
--
740
--
28
--
E

Fig.6.14
Clamp
Gasket ※
Butt Weld
Piping
Companion
Sleeve
(weld joint ferrule)
※ Option
Sensor
Body

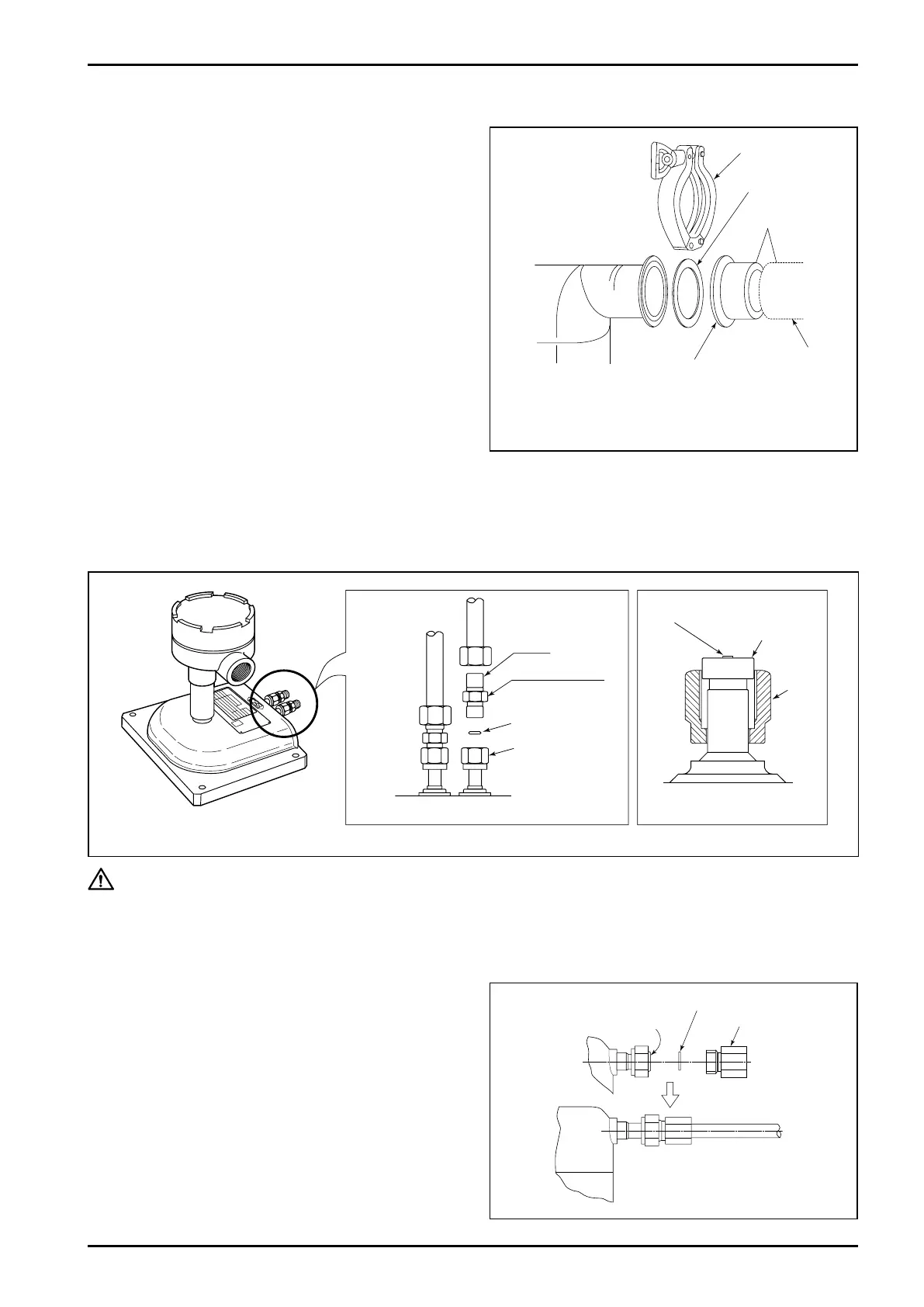

6.5.2 Sanitary fitting type
The sanitary fitting type is of clamp connections.
Using pipe fittings (option), install according to the
procedure given below.
(1) Welding the companion sleeve (weld ferrule)
Weld the companion sleeves furnished to the
piping. Pay attention to the perpendicularity of
ferrule end face and difference in height at the
weld.
As piping material, use JIS G 3447 "Stainless
Steel Sanitary Tubes".
(2) Installation
Sandwich the gasket between the sensor and
ferrule and tighten with the clamp. Be sure to
install the gasket in line with the groove in the
ferrule end face before tightening up.
Fig.6.16
Gland
O-ring
Union fitting
Body
CAUTION 1. Be careful to avoid damaging the gland flat and the protrusion of flow inlet
(outlet).
2. Exercise care not to overtighten the nut. Overtightening it can damage the
gland flat.
6.5.3 Screw-in type
(1) CA00A and CA001
Install a screw fitting (R1/4) onto the piping, fit an O-ring between the end of piping and the gland of
sensor unit, and then tighten them firmly.
R1/4
Screw fitting
O-ring
Gland union
Gland union body
Inlet (outlet)
Gland flat
Nut
Gland union detail
Sensor unit
Piping
Piping
Fig.6.15
(2) CA003 to CA015
Sandwich an O-ring between the probe and
union fitting and tighten.
