Physical orientation
Applicable
fluids
●
Gas
●
Slurries
(If deposit buildup is likely.)
●
Liquid
●
Liquid
●
Gas
●
Liquids that require cleansing
●
Liquids that tend to foam
Horizontal pipeline
(1) (2)
Vertical pipeline

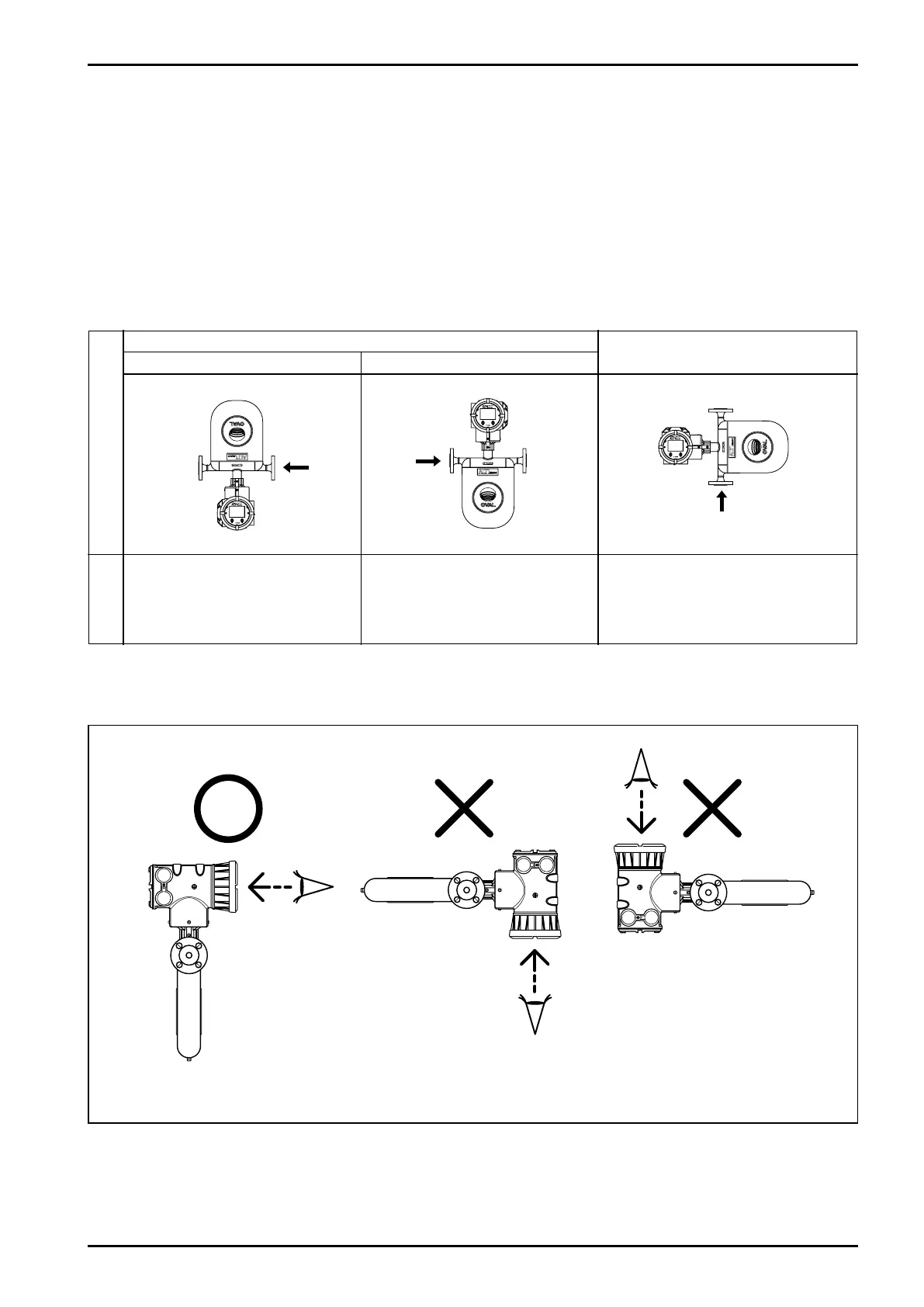

6.2 Physical Orientation
6.2.1 Type U physical orientation
(1) The sensor may be installed either in a horizontal run or vertical run. The following physical
orientations are suggested, depending on the type of process fluid. [Orientation (2) shows the
typical orientation for liquids.]
(2) If cable entry points upwards, there must be adequate provisions for sealing off or preventing
rainwater and other moisture from entering the meter.
●
CA003 thru CA250
(3) Transmitter orientation is correct if its display face is not in the horizontal plane.
(4) For the orientation of separately mounted transmitter, see 6.9 Separately Mounted Transmitter
Installation.
Fig. 6.1
Fig. 6.2
View from bottomView from side View from top
IN
IN
IN
