13. REGARDING EHEDG CERTIFICATION
Type S (EHEDG Specifications) has been certified by European Hygienic Engineering & Design Group.
Certification Type: TYPE EL CLASSⅠ
It is recommended to refer EHEDG Document Number 8 [Design Criteria for Sanitary Equipment/ Device]
for details.
Comply strictly with your service conditions below in case of EHEDG Specifications.
(1) Mounting Orientation
・Install this equipment vertically in the line so as to
enable self-drain.
・In case the electric conduit faces upward, make
sure to prepare a countermeasure to rainwater from
intruding inside.
(2) Important Point at CIP Washing
Use wash solution at flow velocity of 1.5m/s min.
(3) Process Connection and Seal
Conform to EHEDG Document.
Refer to EHEDG Position Paper “Pipe Coupling and
Process Connections”(current version).

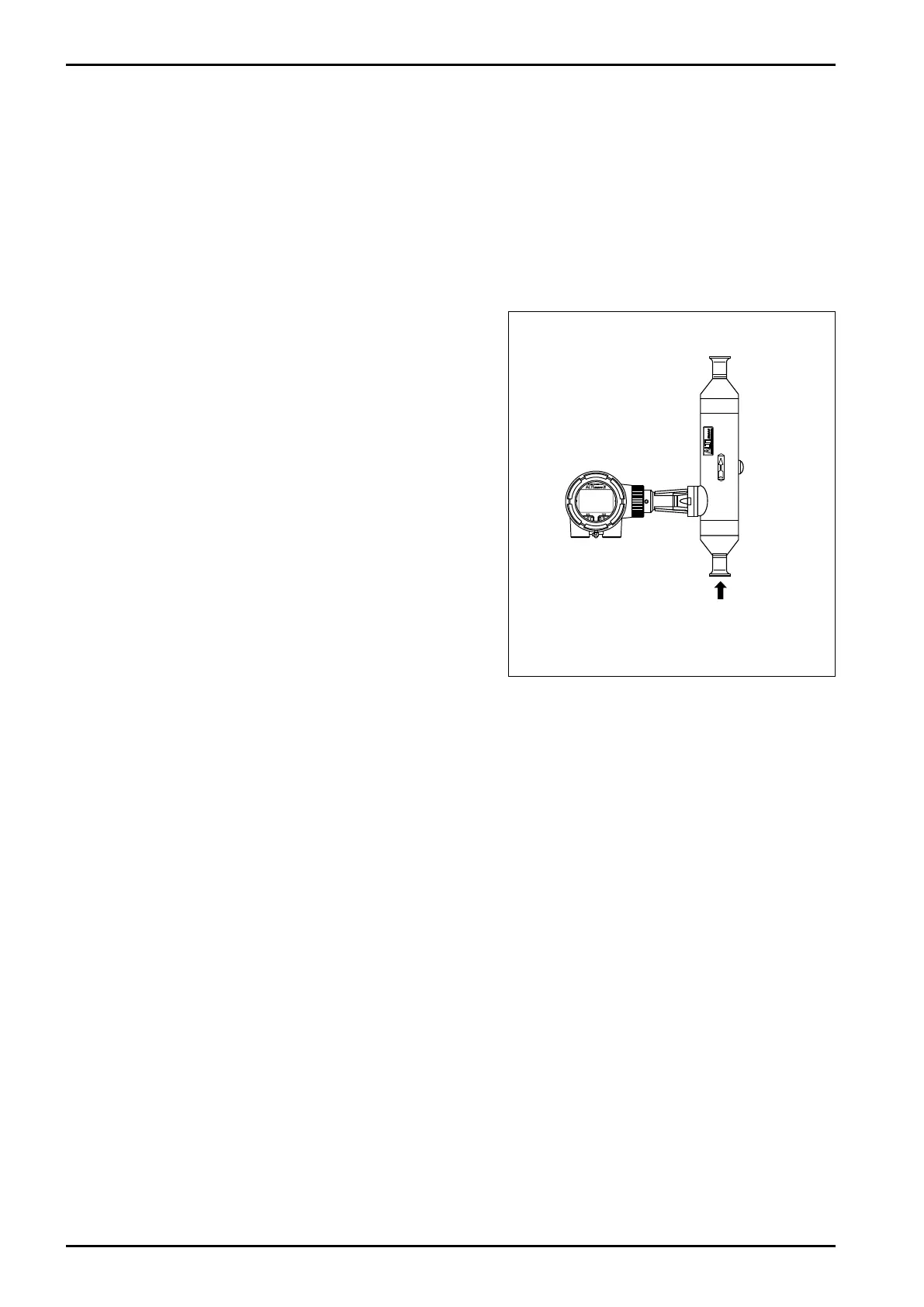

FlowDirection
VerticalPiping
Fig.13.1
