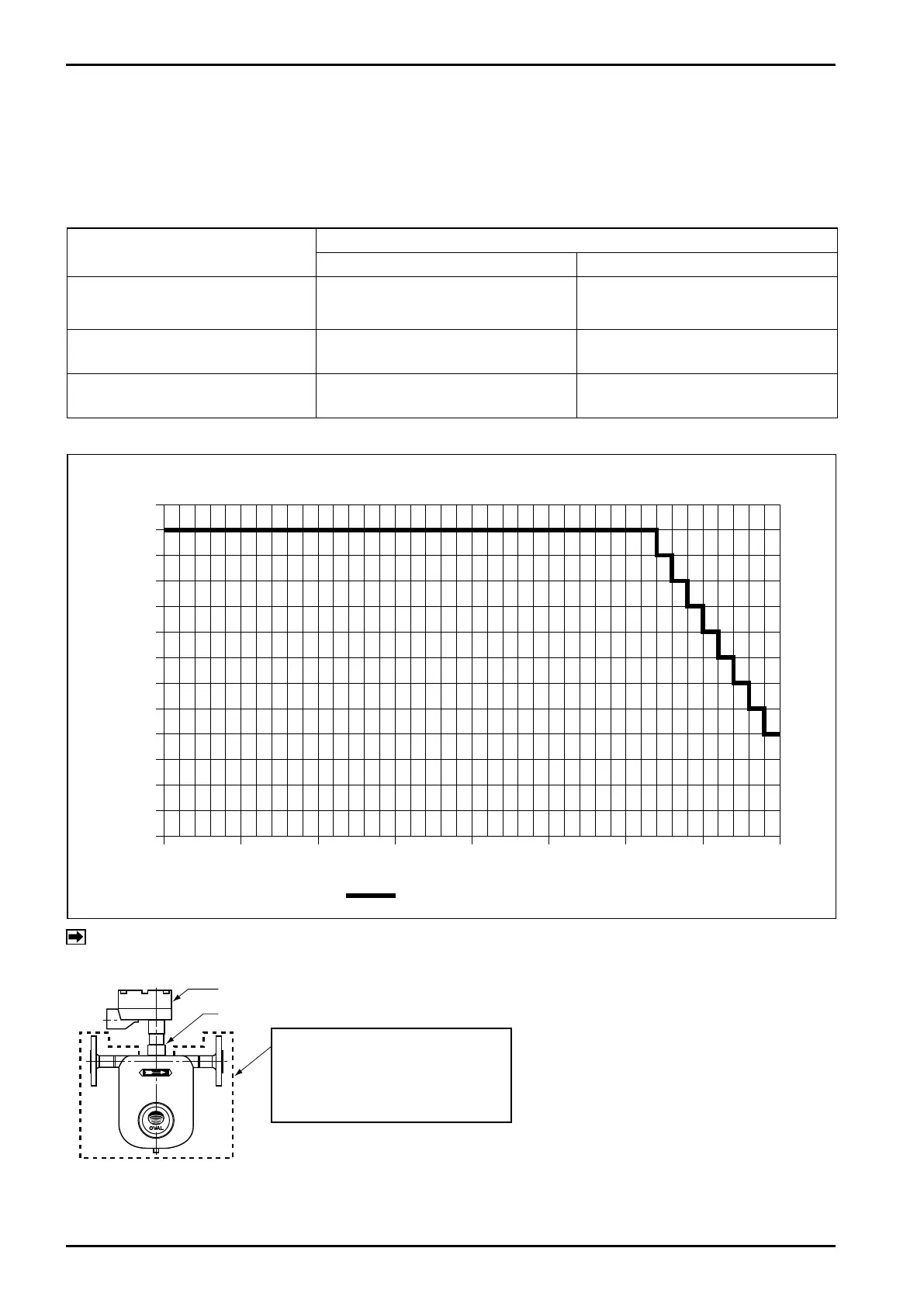

10.5 Ambient Temperature (Type U)
Allowable ambient temperature permitted for the sensor unit is as described in the table below.
(The following table describes the condition for the non-explosionproof models. For the explosionproof
models, make sure to satisfy the temperature conditions described in Section 10.4, as well as the
condition described below.)
Sensor unit temp. class
Transmitter construction
Integral type Separate type
Standard (200℃ and lower)
[Fluid temperature] 150℃ and lower
[Ambient temperature] −40 to +55℃
[Sensor unit ambient temp.]
−40℃ to max. ambient temp.
in the graph below
High temperature service model
(350℃ and lower)
None
[Sensor unit ambient temp.]
−40 to +55℃
Low-temperature explosionproof
service model
None
[Sensor unit ambient temp.]
−20 to +50℃
Separate type sensor unit (temp. class: standard) Max. ambient temp. range
0
−200 −150 −100 −50 0 50 100 150 200
5
10
15
20
25
30
35
40
45
50
55
60
65
Fluid temperature (℃)
Ambient temperature (℃)
MAX. ambient temperature
Please contact us in the case the ambient temperature exceeds max. ambient temperature in the graph.
Terminal box
Adapter
Heat insulation can be applied to
the sensor unit itself at the fluid
temperature. However, do not apply
heat insulation to terminal box or
adapter.
NOTE:
