Oval ALTI mass CA00A - Type B Physical Orientation

L
--
740
--
28
--
E
1
IN
IN
OUT
OUT

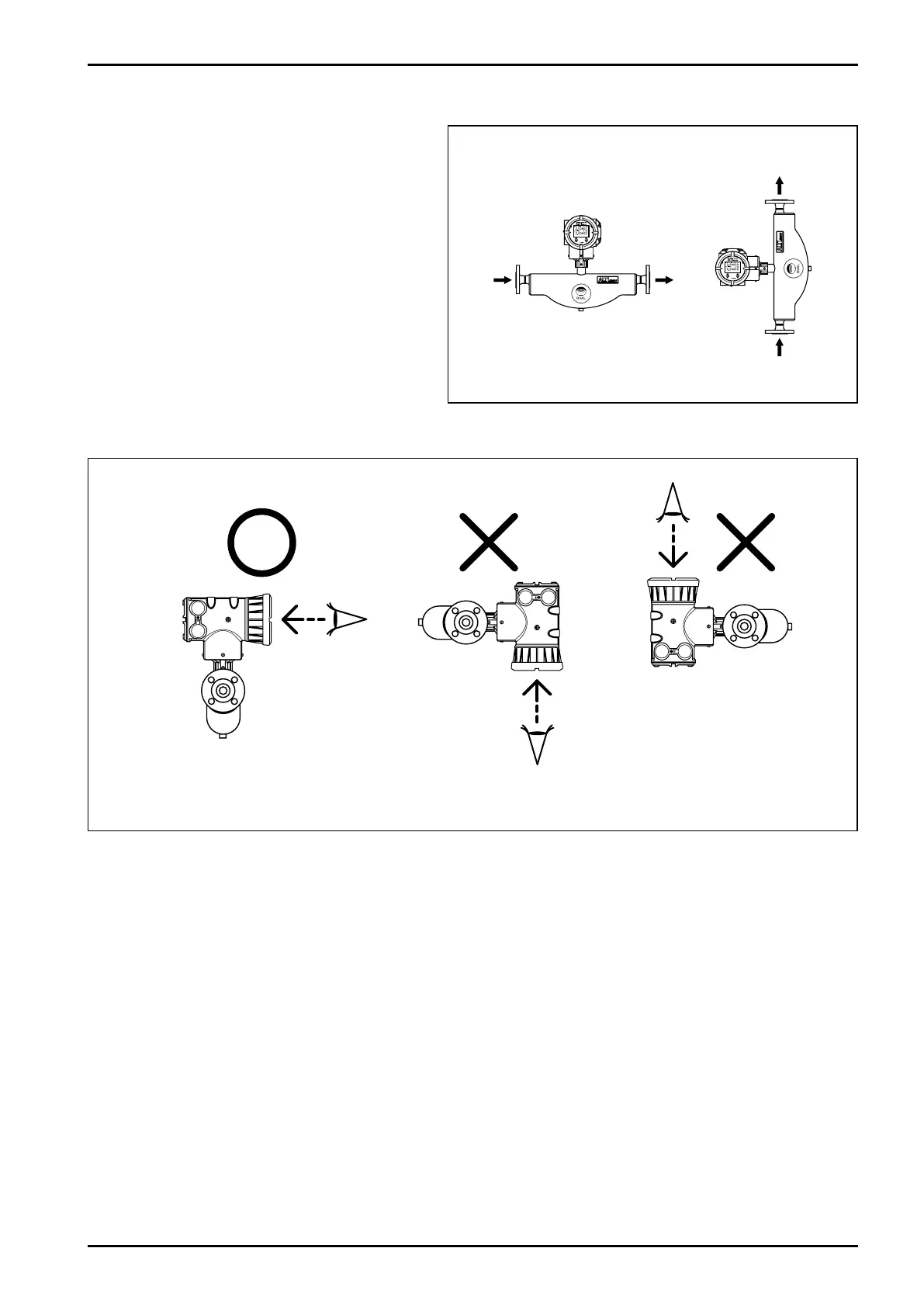

6.2.3 Type B physical orientation
(1) The flowmeter may be installed either
in a horizontal line or a vertical line.
(2) Where cleansing is required or where
air bubble entrapment is likely, we
suggest installation in a vertical run.
(3) If cable entry points upwards, take
necessary measures to prevent rain
and water from entering the meter.
Horizontal line Vertical line
Fig. 6.6
(4) Transmitter installation is correct if its display face is not in the horizontal plane.
Fig. 6.7
View from bottomView from side View from top
(5) For the orientation of separately mounted transmitter, see 6.9 Separately Mounted Transmitter
Installation.
