Oval ALTI mass CA00A - CA100 Thru CA250 (Integrally Mounted Models)

L
--
740
--
28
--
E

φ134
230
64
127
60
Cableentry
G3/4
A
H
h1
h2
W
15
L
Flowdirection
Groundscrew
Flange
Boss
Rc1/4
Cableentry
G3/4
H
h1
h2
W
15
L
Flowdirection
Groundscrew
Groundscrew
Flange
Boss
Rc1/4
5.1.3 CA100 thru CA250 (integrally mounted models)
Dimensions in millimeters
Model
Flange
L H h1 h2 A W
App. Weight
kg（JIS10K）
Nom. size Flange rating
CA100
100
JIS 10K 992
1403 1015 660 300 810 231
JIS 20K 1006
JIS 30K 1016
4˝
ASME, JPI 150 1018
ASME, JPI 300 1036
ASME, JPI 600 1082
DN100
PN 10, 16 968
PN 25, 40 994
CA150
150
JIS 10K 1300
1403 1015 660 300 810 246
JIS 20K 1320
JIS 30K 1330
6˝
ASME, JPI 150 1318
ASME, JPI 300 1338
ASME, JPI 600 1388
DN150
PN 10, 16 1250
PN 25, 40 1290
CA15H
150
JIS 10K 1015
1604 1190 851 320 810 310
JIS 20K 1055
JIS 30K 1099
6˝
ASME, JPI 150 1087
ASME, JPI 300 1107
ASME, JPI 600 1157
DN150
PN 10, 16 1019
PN 25, 40 1059
CA200
200
JIS 10K 1330
1604 1190 851 320 810 340
JIS 20K 1368
JIS 30K 1418
8˝
ASME, JPI 150 1418
ASME, JPI 300 1438
ASME, JPI 600 1494
DN200
PN 10, 16 1338
PN 25 1374
PN 40 1390
CA20H
200
JIS 10K 1330
1830 1390 960 420 1110 610
JIS 20K 1368
JIS 30K 1418
8˝
ASME, JPI 150 1418
ASME, JPI 300 1438
ASME, JPI 600 1494
DN200
PN 10, 16 1338
PN 25 1374
PN 40 1390
CA250
250
JIS 10K 1699
1830 1390 960 420 1110 650
JIS 20K 1743
JIS 30K 1805
10˝
ASME, JPI 150 1773
ASME, JPI 300 1805
ASME, JPI 600 1887
DN250
PN 10 1705
PN 16 1709
PN 25 1745
PN 40 1779
NOTE: A pproximate weights in the table above are of JIS 10K.
For specifications of other flange ratings, see the approval drawing (or customer
,
s acceptance specification).

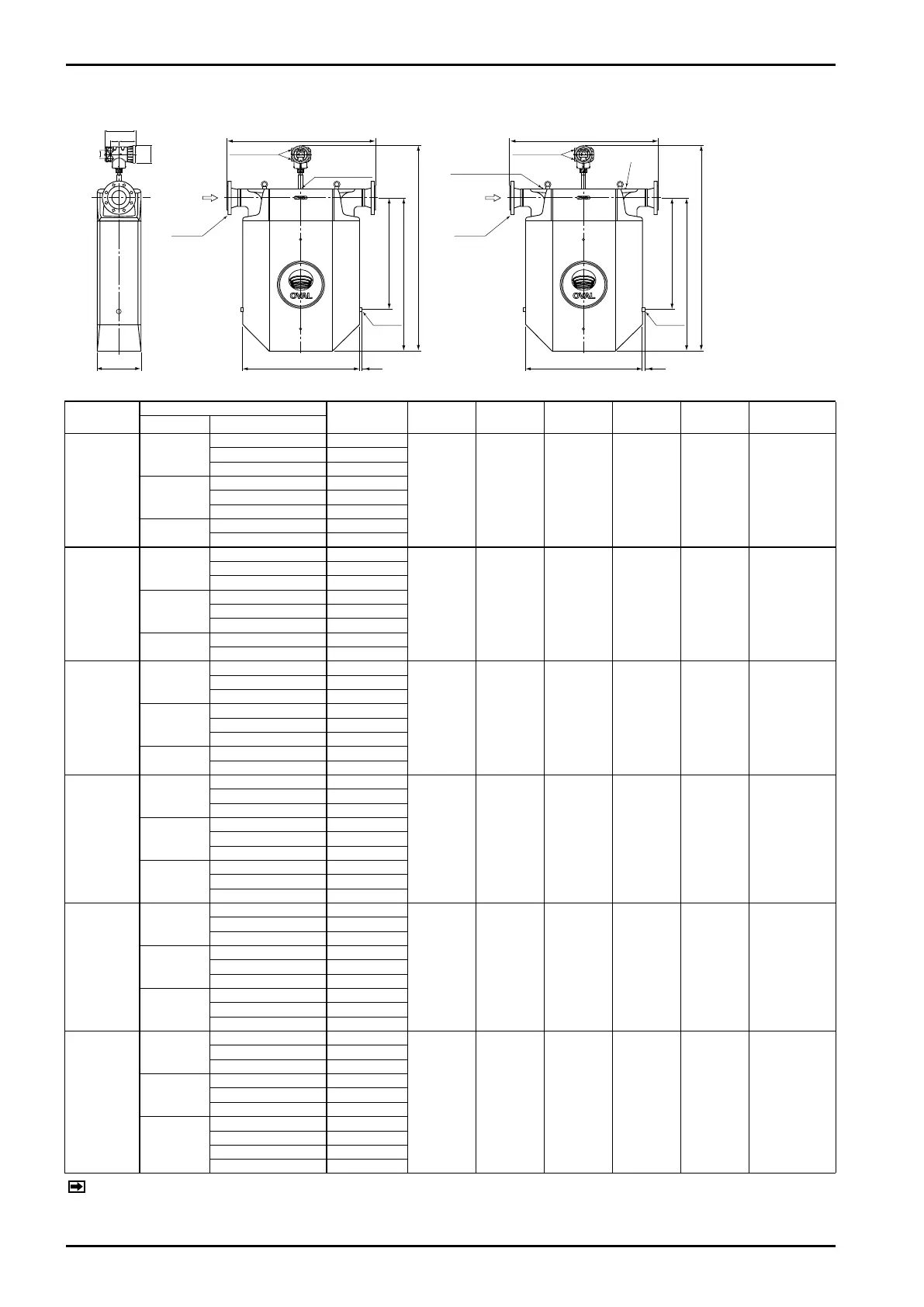

Fig. 5.5 Outline Dimensions of Integrally Mounted Sensor Unit (3/3)
(CA100 and 150) (CA15H to 250)
