Oval ALTI mass CA00A - CA006 Thru CA080 (Separately Mounted Models)

L
--
740
--
28
--
E

A
φ107
H
h1
W
L
98
10
Groundscrew
CableentryG3/4(G1/2 : TIIS)
Flowdirection
Flange
Terminalbox
5.1.4 CA006 thru CA080 (separately mounted models)
Dimensions in millimeters
Model
Flange
L H h1 A W
App. Weight
kg（JIS10K）
Nom. size Flange rating
CA006
10
JIS 10K 242
324 180 53 148 4.0
JIS 20K 242
JIS 30K 260
JIS 40K 260
JIS 63K 280
1/2˝
ASME, JPI 150 268
ASME, JPI 300 277
ASME, JPI 600 289
DN15
PN 10, 16 241
PN 25, 40 247
CA010
15
JIS 10K 256
362 218 53 163 4.7
JIS 20K 256
JIS 30K 276
JIS 40K 276
JIS 63K 294
1/2˝
ASME, JPI 150 282
ASME, JPI 300 291
ASME, JPI 600 303
DN15
PN 10, 16 256
PN 25, 40 261
CA015
15
JIS 10K 299
412 268 65 205 5.6
JIS 20K 299
JIS 30K 319
JIS 40K 319
JIS 63K 343
1/2˝
ASME, JPI 150 325
ASME, JPI 300 334
ASME, JPI 600 347
DN15
PN 10, 16 299
PN 25, 40 305
NOTE: Approximate weights in the table above are of JIS 10K.
For specifications of other flange ratings, see the approval drawing (or customer
,
s acceptance
specification).

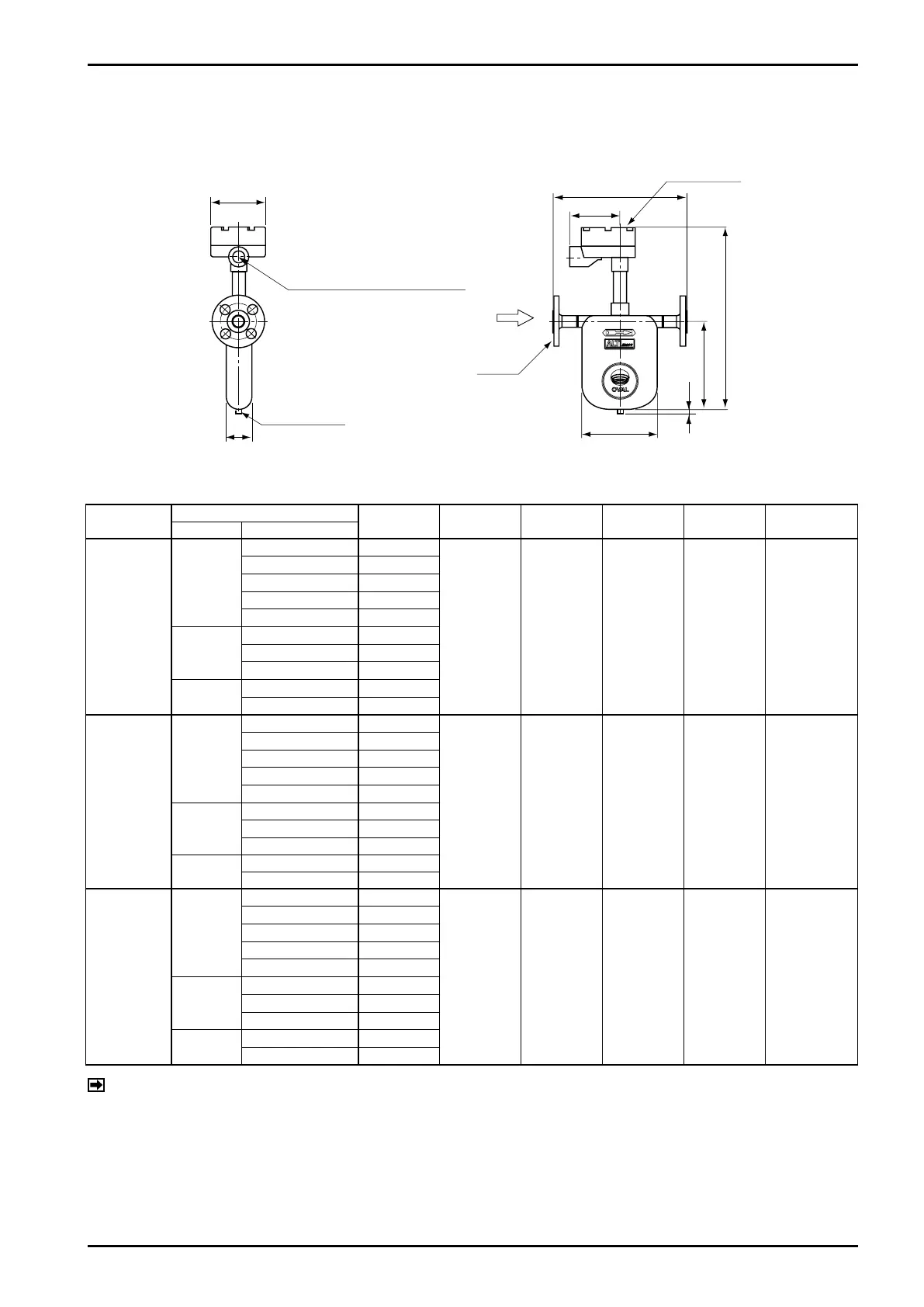

Fig. 5.6 Outline Dimensions of Separately Mounted Sensor Unit (1/3)
