Oval ALTI mass CA00A - Page 32

L
--
740
--
28
--
E

(G1/2 : TIIS)
φ107
H
h1
φD
W
L
98
A
10
Groundscrew
CableentryG3/4
Flowdirection
Terminalbox
Ferrule
●
Separately mounted type
Dimensions in millimeters
Model
Ferrule fitting
L H h1 A W φD
App. Weight
kg
Nom. size Connection
CA003 10 Ferrule 10A 265 230 67 89.1 192 34 4.5
CA006 10 Ferrule 10A 231.5 324 180 53 148 34 2.8
CA010 15 Ferrule 15A 256 362 218 53 163 34 3.4
CA015 15 Ferrule 15A 289 412 268 65 205 34 4.2
CA025 25
Ferrule 25 (ISO)
IDF 1S
370 480 329 83 262 50.5 7.8
CA040 40
Ferrule 38 (ISO)
IDF 1.5S
493 610 452 121 385
50.5
16
CA050 50
Ferrule 51 (ISO)
IDF 2S
64
CA080 80
Ferrule 76.1 (ISO)
IDF 13S
658.5 780 602 174 510 91 48
Process connection: S (sanitary) in inches.

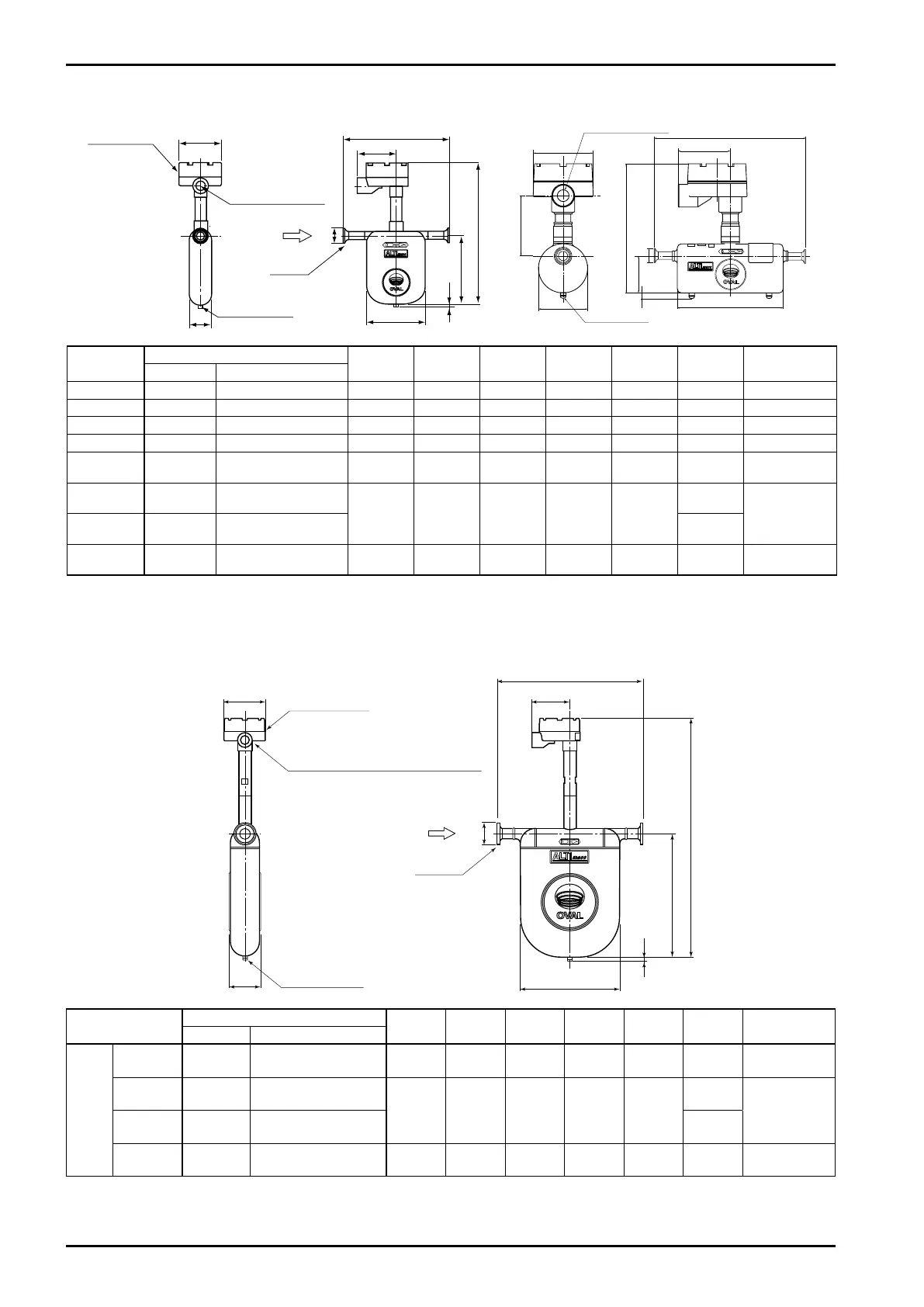

Fig. 5.13 Outline Dimensions of Separately Mounted, Ferrule Type Sensor Unit
L
A
W
98
H
109
h1
10
φ 107
φD
（G1/2：TIIS）
CableentryG3/4
Groundscrew
●
Low temp. explosionproof service models (CA025 to CA080）
A
W
h1
10
H
φ107
φD
98
L
Groundscrew
CableentryG3/4（G1/2：TIIS）
Flowdirection
Terminalbox
Ferrule
Process connection: S (sanitary) in inches.
Fig. 5.14 Outline Dimensions of Separately Mounted, Ferrule Type （Low temp. explosionproof service models）Sensor Unit
Dimensions in millimeters
Model
Ferrule fitting
L H h1 A W φD
App. Weight
kg
Nom. size Connection
CA025 25
Ferrule 25（ISO）
IDF 1S
370 660 329 83 262 50.5 8.3
CA040 40
Ferrule 38（ISO）
IDF 1.5S
493 790 452 121 385
50.5
17
CA050 50
Ferrule 51（ISO）
IDF 2S
64
CA080 80
Ferrule 76.1（ISO）
IDF 3S
658.5 960 602 174 510 91 48
Low temp. explosionproof service models
