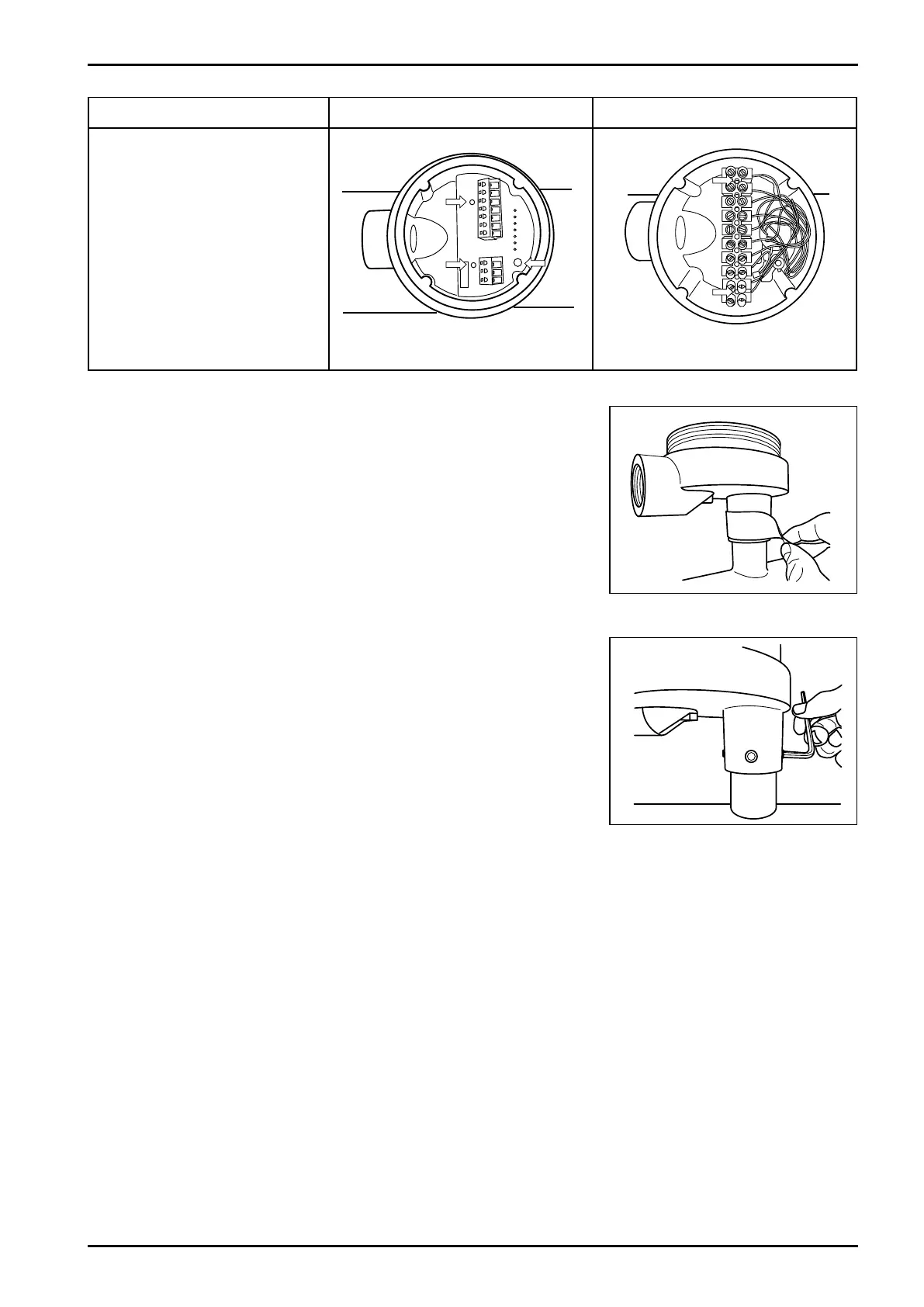

⑥ Remove caution label (sticker) and loosen hex-socket head
screws (4 places).（Fig.7.17, Fig.7.18）
⑦ Rotate terminal box without exerting excessive force onto
sensor cables.
⑧ After rotating, reassemble terminal box in reverse procedure.
Fig.7.17
Terminal block A Terminal block B
⑤ Remove screws from
terminal block. (3 places for
A, 2 places for B)
※ Make sure not to drop or
lose screws.
（Fig7.15, Fig.7.16）
Fig.7.15 Fig.7.16
Fig.7.18
