Parker 690+ series User Manual

Programming Your Application 1-7
690+ Series Frequency Inverter
Function Blocks in Alphabetical Order
5703 INPUT
Supports the receiving of data from a
Parker SSD Drives' 5703 Setpoint
Repeater.
This block is only operational when the
SYSTEM PORT (P3) :: MODE parameter
is set to 5703. Refer to page 1-
114.

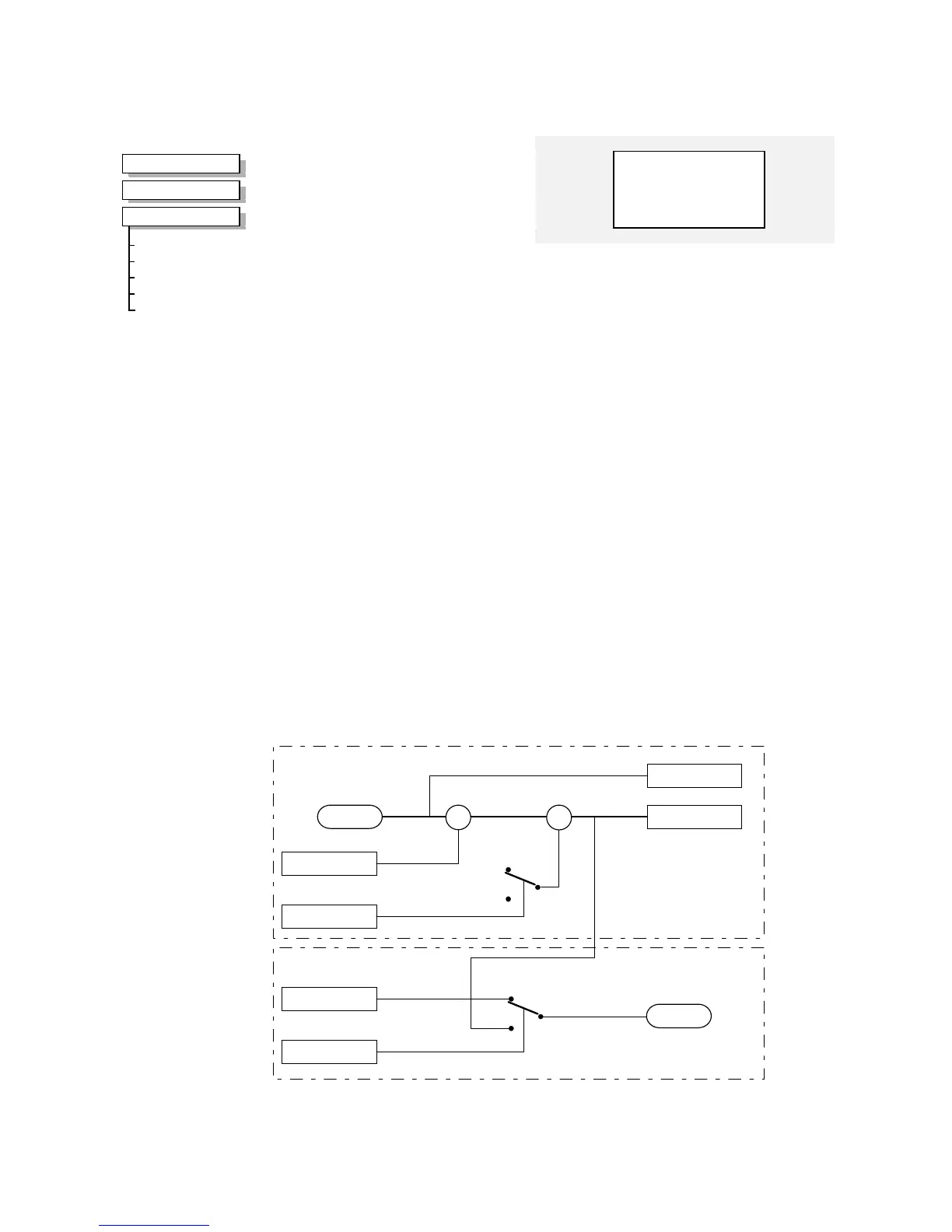

Functional Description
SCALED VALUE
RAW VALUE
RATIO
NEGATE
VALUE
REPEATER
5703 RX
5703 TX
X X
1
-1
5703 INPUT
5703 OUTPUT
MMI Menu Map
1
SETUP
2
COMMUNICATIONS
3
5703 INPUT
RATIO
NEGATE
SCALED VALUE
RAW VALUE
BREAK
5703 Input
–
SCALED VALUE [1260]
–
0.00
–
RAW VALUE [1261]
–
0.00
–
BREAK [1262]
–
FALSE
1.0000
–
[1258] RATIO
–
FALSE
–
[1259] NEGATE
–
Parameter Descriptions
RATIO
Range: -3.0000 to 3.0000 %
Scaler applied to RAW VALUE to produce SCALED VALUE output.
NEGATE
Range: FALSE / TRUE
When TRUE, changes the sign of SCALED VALUE
SCALED VALUE
Range: _.xx
Received value with RATIO and NEGATE applied.
RAW VALUE
Range: _.xx
Received value before any processing. Reset to zero when there are no valid received messages.
BREAK
Range: FALSE / TRUE
Set TRUE when there are no valid 5703 messages received during the previous 2 seconds.

Parker 690+ series Specifications

General

Frequency	50/60 Hz
Overload	150% for 60 seconds
Communication Options	Ethernet
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Programmability	Yes
Communication Ports	RS485
I/O Capability	Digital and Analog I/O
Programming Languages	Function Block Diagram
Dimensions	Varies by module
