Parker 690+ series User Manual

1-8 Programming Your Application
690+ Series Frequency Inverter
5703 OUTPUT
Supports the sending of data to a Parker
SSD Drives' 5703 Setpoint Repeater.
This block is only operational when the
SYSTEM PORT (P3) :: MODE parameter
is set to 5703. Refer to page 1-
114.

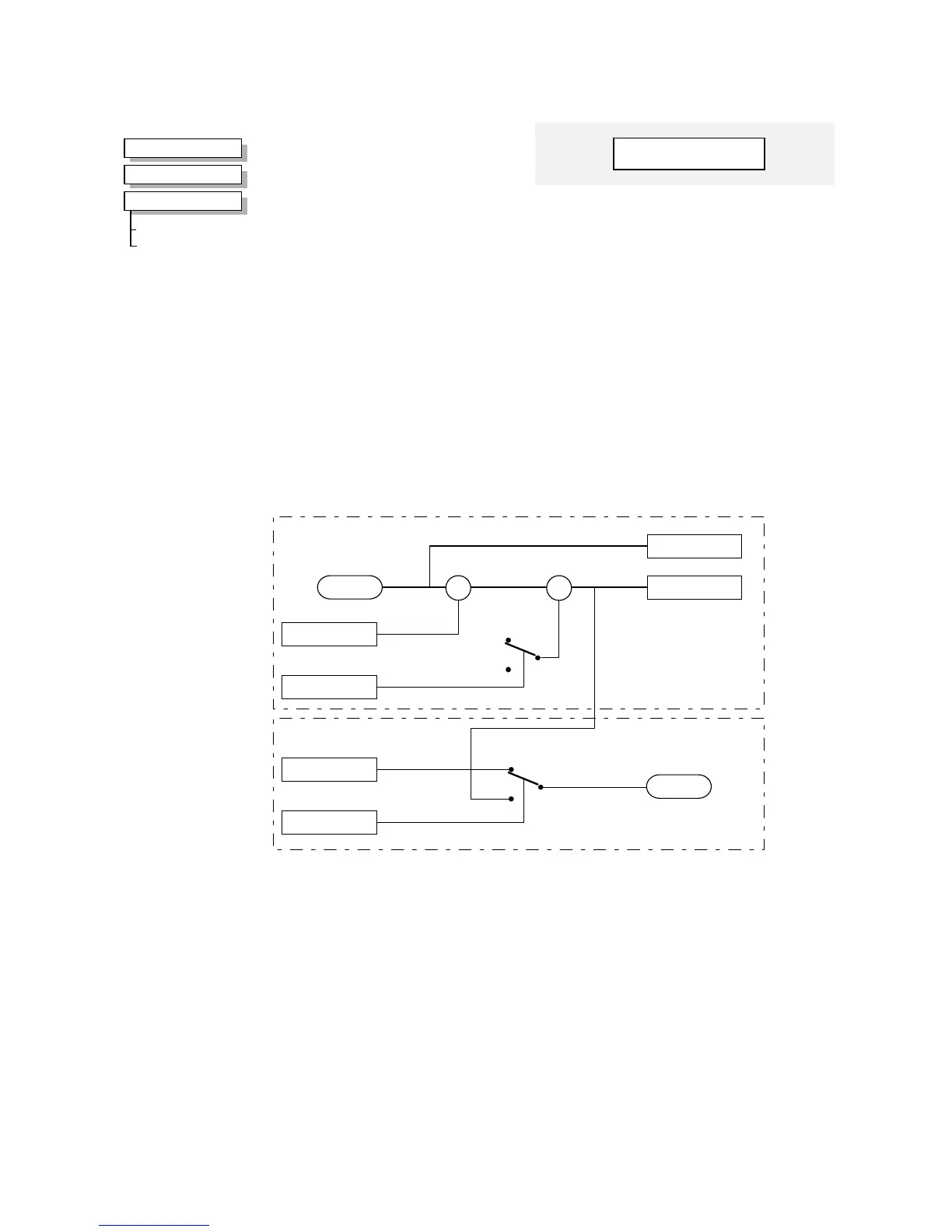

Functional Description
SCALED VALUE
RAW VALUE
RATIO
NEGATE
VALUE
REPEATER
5703 RX
5703 TX
X X
1
-1
5703 INPUT
5703 OUTPUT
MMI Menu Map
1
SETUP
2
COMMUNICATIONS
3
5703 OUTPUT
VALUE
REPEATER
5703 Output
0.00
–
[1263] VALUE
–
FALSE
–
[1264] REPEATER
–
Parameter Descriptions
VALUE
Range: -300.00 to 300.00 %
The value to be sent when not configured as a repeater.
REPEATER
Range: FALSE / TRUE
When TRUE, sends the SCALED VALUE from the 5703 INPUT block instead of the VALUE
input.
Note: This is performed at a faster rate than the block diagram execution to minimise the
transmission delay between drives.

Parker 690+ series Specifications

General

Frequency	50/60 Hz
Overload	150% for 60 seconds
Communication Options	Ethernet
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Programmability	Yes
Communication Ports	RS485
I/O Capability	Digital and Analog I/O
Programming Languages	Function Block Diagram
Dimensions	Varies by module
