1-2 Programming Your Application
690+ Series Frequency Inverter
Making and Breaking Links in Configuration Mode
Links can be moved, added or deleted from a block diagram whilst in the Configuration mode.
There are 80 links available, each has its own identification number (“link” number). You make
a link by setting the link’s SOURCE and DESTINATION to be the two parameter names to be
linked. The outputs of function blocks are not updated whilst in this mode.
Note: Menus and parameters are displayed in alphabetical order. NULL is placed between A
and Z. Setting both SOURCE and DESTINATION to NULL disables the link.
The LINK Parameter
SOURCE
M
BLOCK NAME/PARAMETER
SOURCE/DESTINATION
BLOCK NAME
M
M
instance of a
function block, i.e.
ANALOG INPUT 2
To select an
Select/change a parameter
Select/change a function block
SELECTION PROCESS
Alternates between "block name"
and "parameter"
LINK
Menu at level 4
12
M
Select either SOURCE
or DESTINATION
"UP" TO CONFIRM
ENABLE CONFIG
All LEDs will flash to indicate
Config Mode is in force
Only displays if Config Mode is not in force
E
Returns to numbered
LINK menu at level 4
Press REPEATEDLY:
Returns to WELCOME menu
Pressing E once more
takes the Operator Station
out of Config Mode
(LEDs stop flashing)
Press ONCE:
Setting LINK 12, for example
SOURCE/DESTINATION
PARAMETER
M
E
to be a Feedback
Link.
Refer to
To select a SOURCE
in this Chapter
Programming Rules

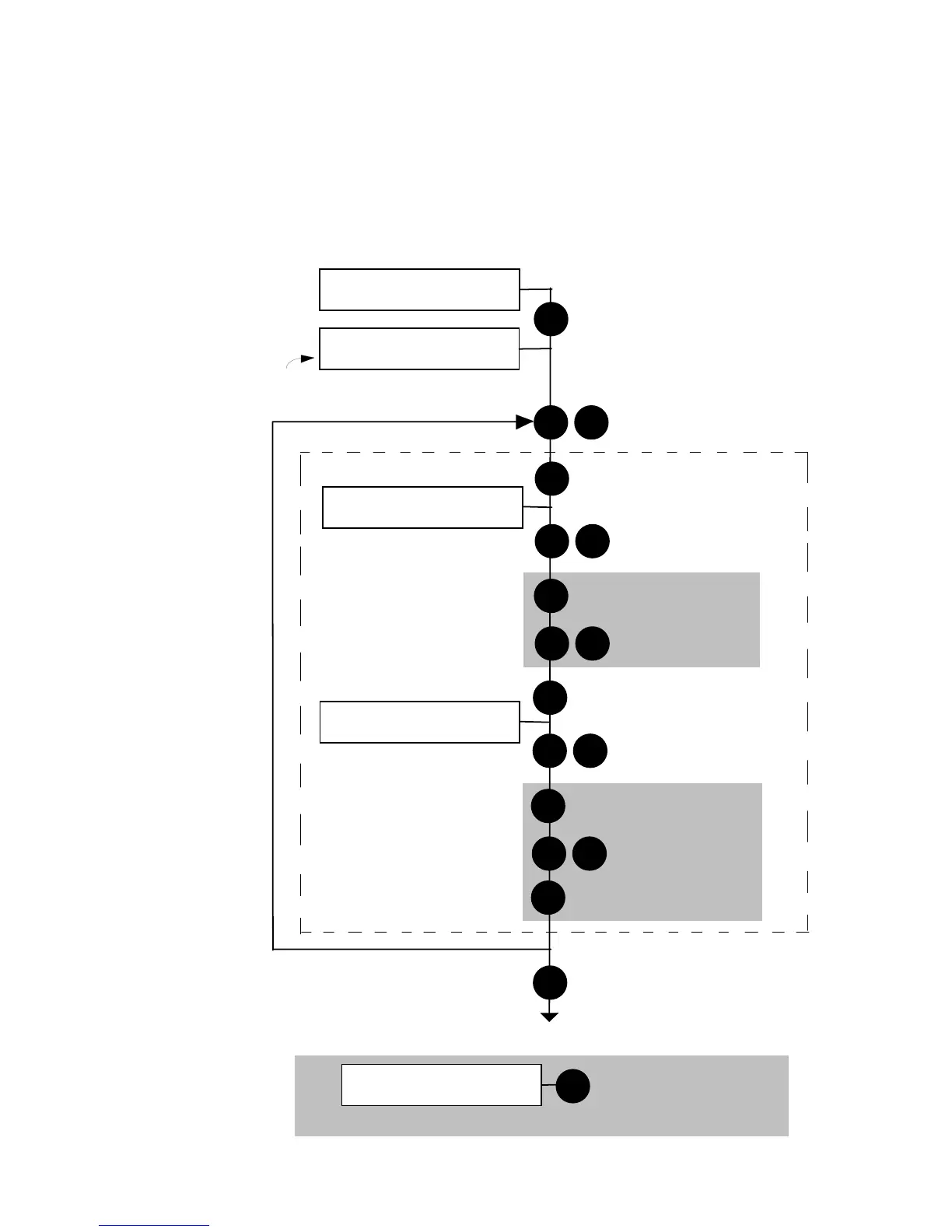

Figure 1-1 Diagram showing Key Presses for Making/Breaking Links
To Next Page
