Parker 690+ series User Manual

1-28 Programming Your Application
690+ Series Frequency Inverter
The System Board (optional) has 5 configurable digital inputs/outputs (DIGIO 11 to 15).
Each DIGIO can be configured to operate as either a Digital Input or a Digital Output.
Refer to
DIGITAL OUTPUT, page 1-29.
The i

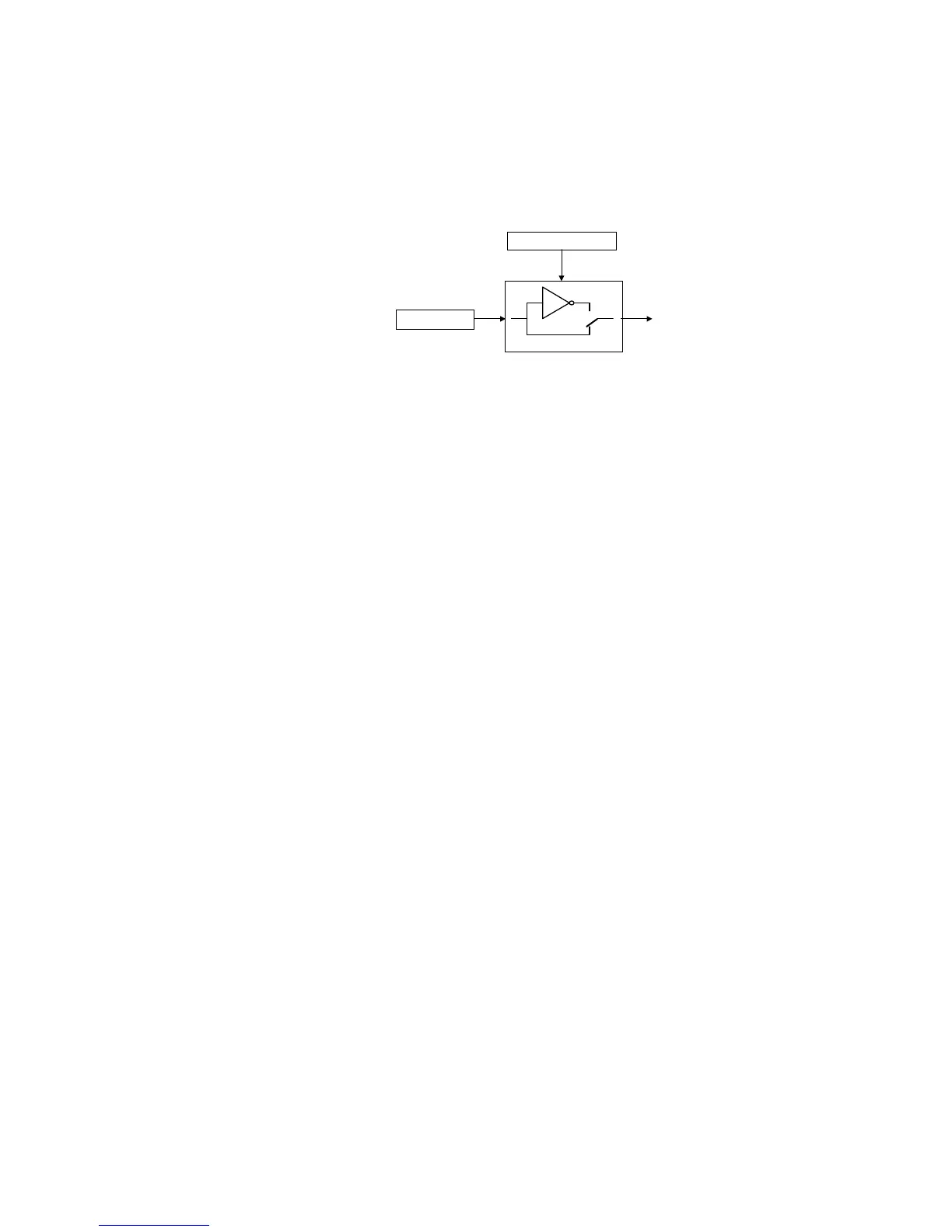

nput electronics of the Inverter converts the input signal to a TRUE or FALSE logic value.
The digital input block takes this value and optionally inverts it before providing the VALUE
output.
INVERT
VALUE
OUTPUT

Parker 690+ series Specifications

General

Frequency	50/60 Hz
Overload	150% for 60 seconds
Communication Options	Ethernet
Protection Rating	IP20
Operating Temperature	0°C to 55°C
Programmability	Yes
Communication Ports	RS485
I/O Capability	Digital and Analog I/O
Programming Languages	Function Block Diagram
Dimensions	Varies by module
