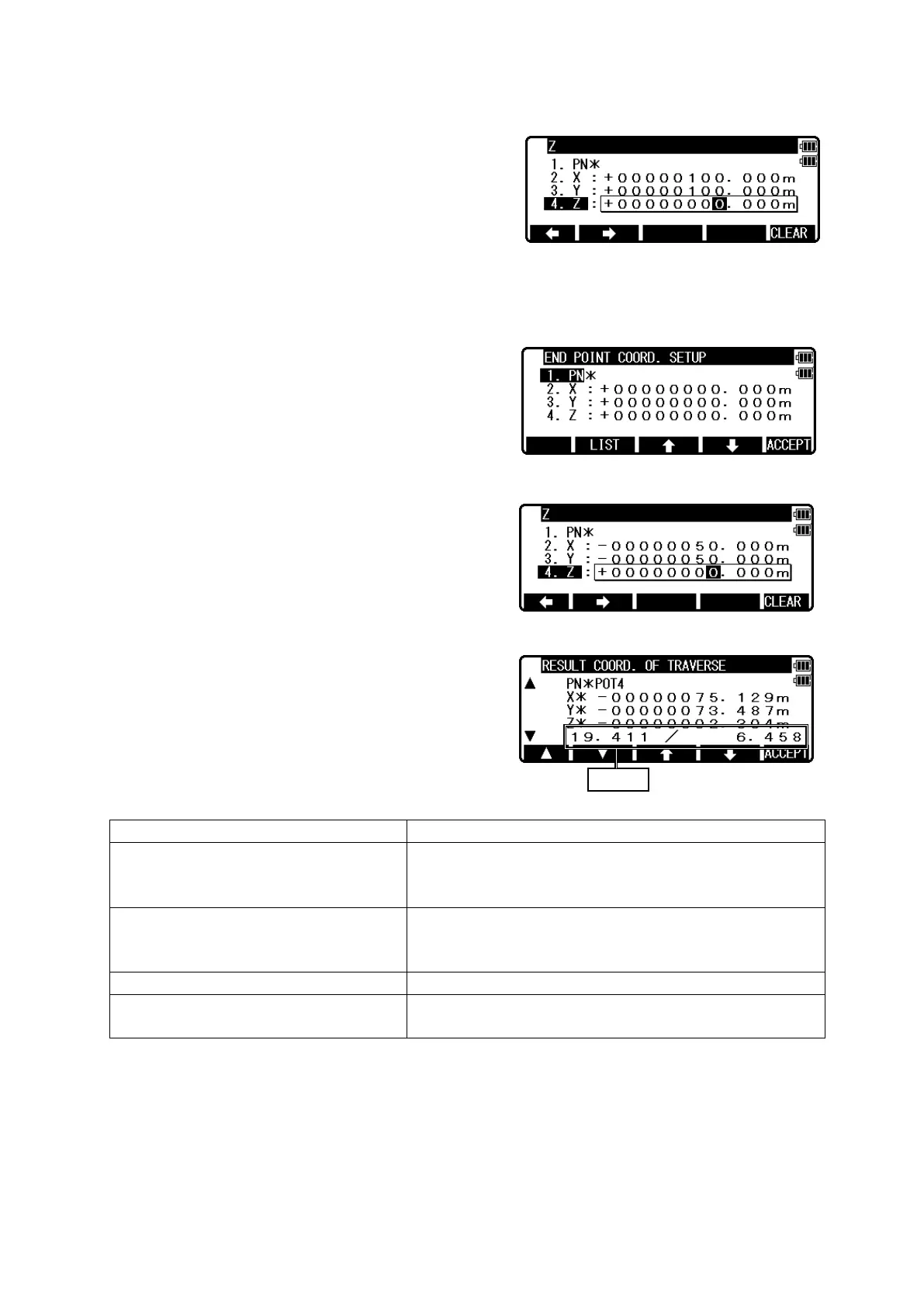

Press [ENT] to open the Z coordinate input screen
and input.
Only in the case of fixed traverse, end point
coordinates setup screen is displayed.
(Input the PN, Coordinates and PC of the End point.)
After Z coordinate input, END POINT COORD.
SETUP screen is viewed.
Input the PN, X, Y, Z Coordinates and PC name of
the End point.
Press [ENT] to view the RESULT COORD. OF
TRAVERSE screen.
Display of Calculation Results ※The contents of “e/S” varies by the points to be displayed.
Points being displayed
Contents of “e/S”
Traverse point of Station Point
(The point where the instrument is
set)
Length between last station P. & current P.
/ Length between start P. & current P.
Traverse point of not Station Point
(The point where the instrument is
not set)
Length between last station P. & current P.
Start Point
Closing errors / Total length
End Point
Length between last station P. & current P.
/ Length between start P. & current P.
※In case of OPEN CALC, Closing errors is not available.
[F1] and [F2] only indicate corner points in order.
[F3] and [F4] indicate all points in order.
Press [F5][ACCEPT] to save the all corner, sideshot points, and known points.
e/S
