23
4.2 Station Orientation

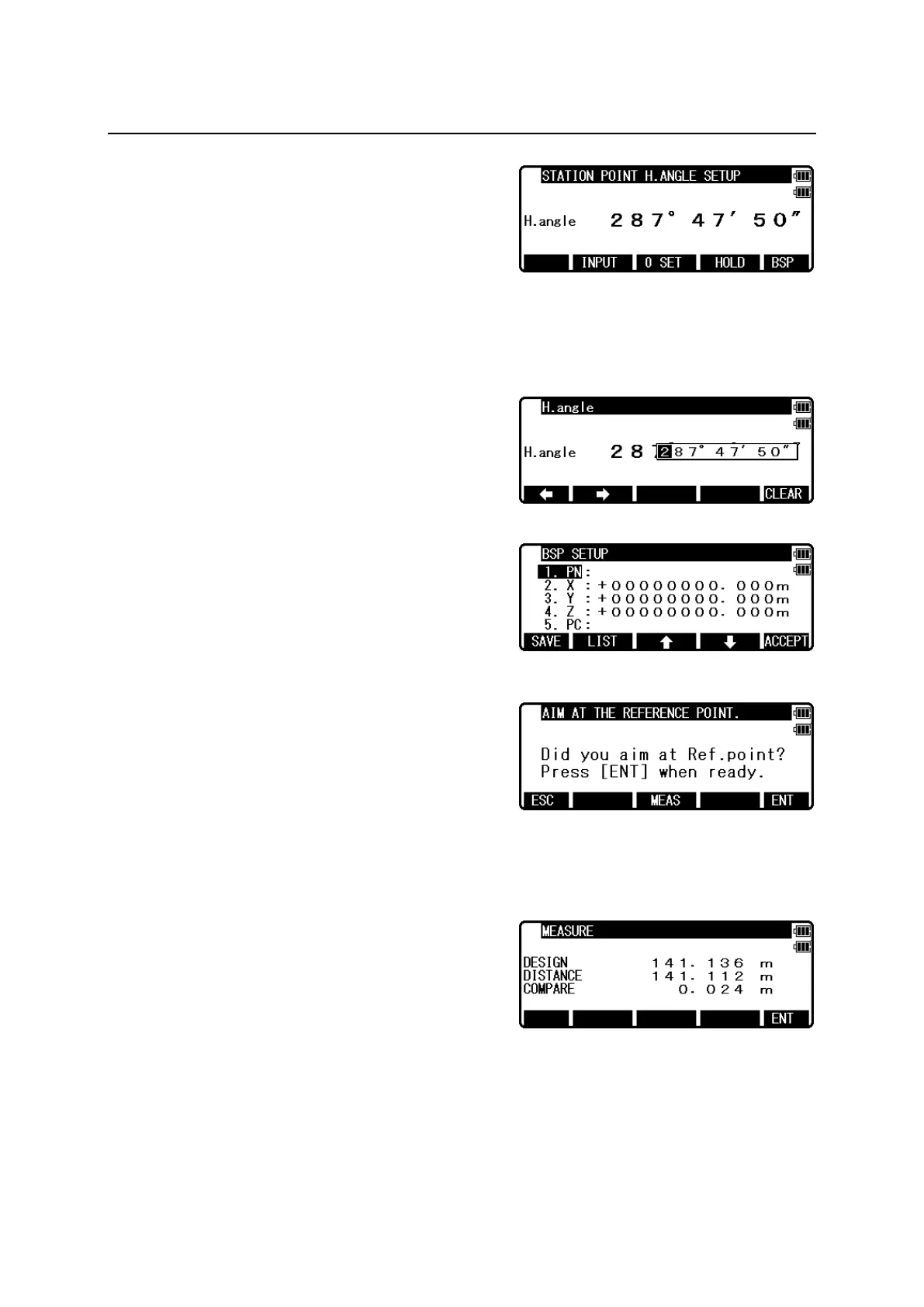

Press the [F5][ACCEPT] to view the STATION
POINT H.ANGLE SETUP screen.
Please note, that the rotation of the “H.angle”
depends on the rotation setting of
“Coordinate axis definition”.
Input the H.angle by pressing [F2][INPUT], [F3][0SET] and [F4][HOLD] or Reference point
Coordinates by pressing [F5][BSP].
• [INPUT] Key
Enter any horizontal angle.
Press [ENT] to view the BSP SETUP screen.
• [BSP] Key
The Back Sight Point information is obtained.
Press [ENT] to finalize input.
Press [ENT] or [F5][ACCEPT] to view the AIM
AT THE REFERENCE POINT screen.
Press [F5][ENT] to finalize BSP.
Press [F1][ESC] to redo input.
If you want to make measure to check
the point to be aimed, press [F3][MEAS]
to display MEASURE screen.
Press [F1][MEAS] to make the distance
measurement. DESIGN DISPLAY screen
appears when the distance measurement is done.
Compare design value with measured value.
When “PREFERENCE” of “12. BOTH FACES MEAS” is on,
measure the distance at the normal and reverse position.
The measured value to be displayed is the average of measured values measured in normal
and reverse position.
