135

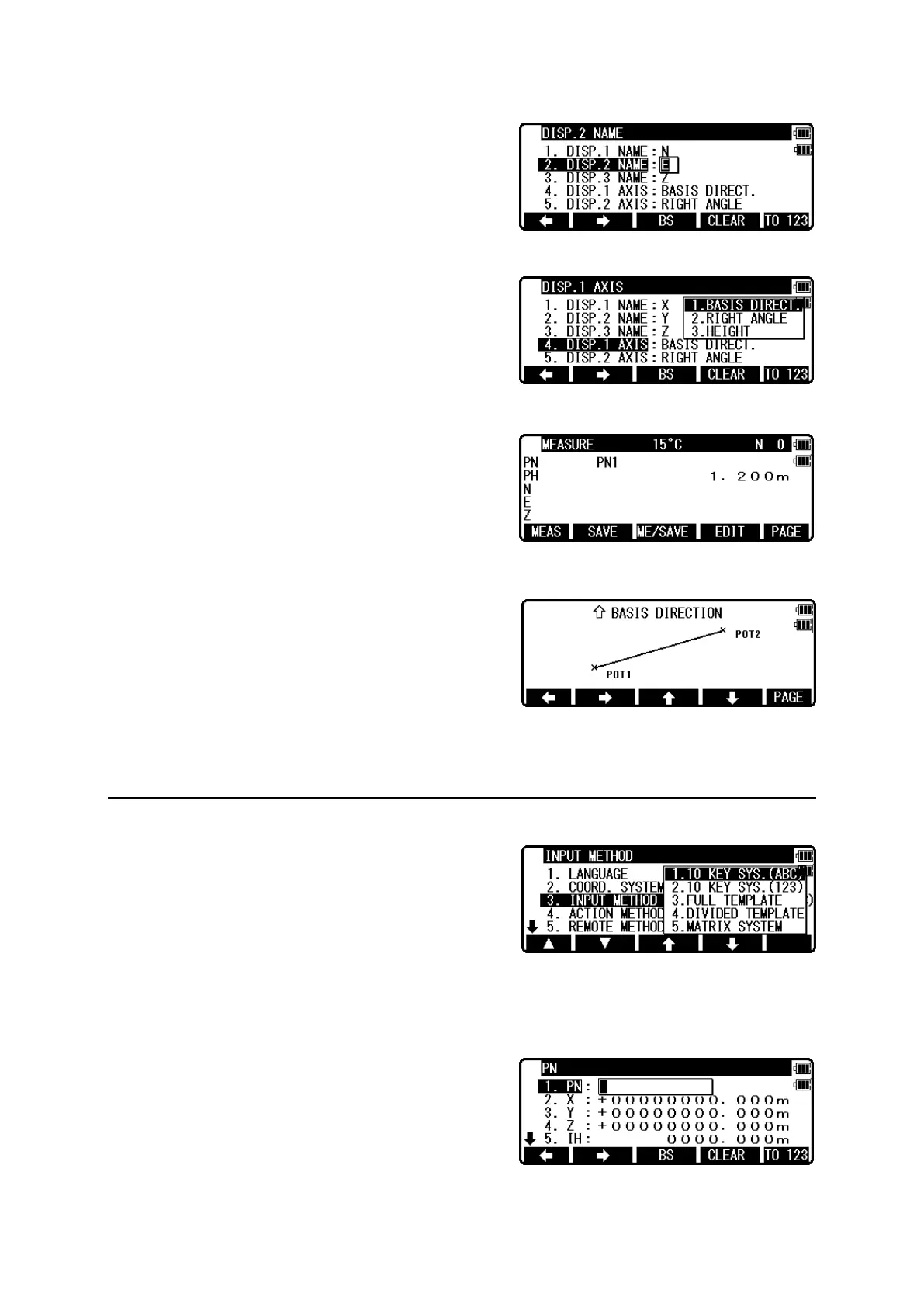

Any name can be defined for all three axes.
For the “DISP.# NAME”, it is possible to define
same name. However, please note that the same
coordinates value will be displayed.
Three types of axes can be selected for each three
axes.
For the “DISP.# AXIS”, it is possible to define same
type of axis. However, please note that
the same coordinates value will be displayed.
Definition of this function will be affected to the
value of the coordinates.
Please note that the up arrow on the screen of the
graphical view always shows “BASIS
DIRECTION”. In addition, position of points
doesn’t change on the “GRAPHICAL VIEW”, but
value of coordinates changes according to the setting
of “Coordinate axis definition”.
14.3 Input method selection
Select 3. INPUT METHOD and press [ENT] to view
the Character INPUT METHOD selection window.
Press [ENT] to select and press [F5][ACCEPT] to
enter.
Explanation of the 10 Key system (123/ABC), Full template, Divided template and Matrix
system.
1. 10 KEY SYSTEM(123/ABC)
These are the standard input method using the
Alphanumeric and +/- key.
