13.1.3 Text File setup
When coordinate data is output/input to and from
text file, input parameter.
13.1.3.1 Writing data setting

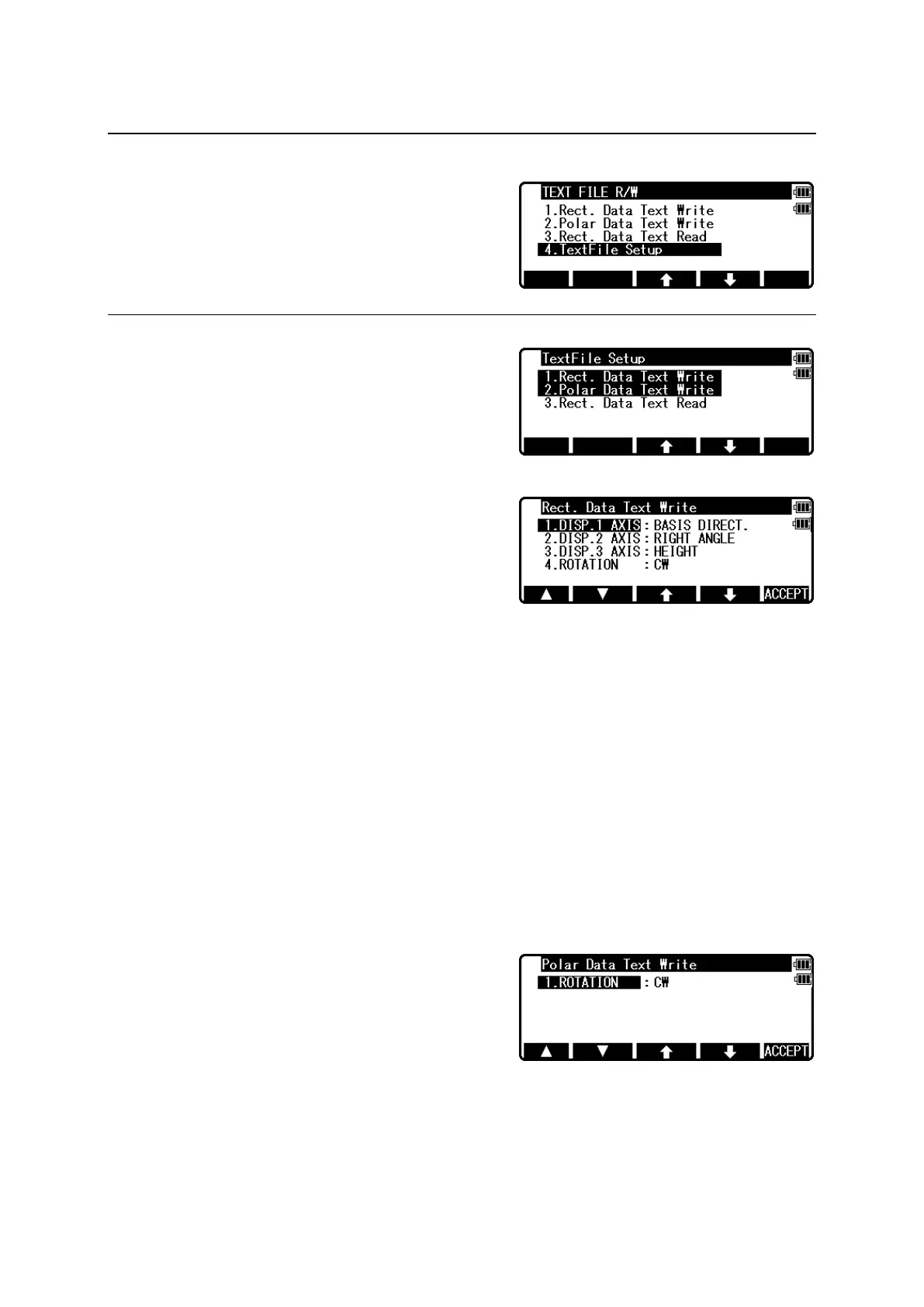

Select the 4. TextFile Setup and press [ENT] to view
the TextFile Setup screen.
[1. WRITE RECT. DATA]
Select the 1. Rect. Data Text Write and press [ENT]
to view the following screen.
Press [ENT] to open the selection window. Select
each setting and press the [ENT].
Press [ACCEPT] to enter when all selections are finished.
• DISP.# AXIS: BASIS DIRECT, RIGHT ANGLE, or HEIGHT is selected when data
is transferred between the TS and PC. (cf.“14.2 Coordinate axis definition”)
They are used for matching coordinate system between definition in the instrument and
definition in the external device when they are different. However, it is necessary to match
the definition of the “Coord. Axis” between settings in “Rect. Data Text Write” and
settings in “Coordinate axis definition” when same coordinate systems are used.
• Factory default setting of SENDING
1. DISP.1 AXIS: BASIS DIRECT
2. DISP.2 AXIS: RIGHT ANGLE
3. DISP.3 AXIS: HEIGHT
4. ROTATION: CW
[2. WRITE POLAR DATA]
Select the 2. Polar Data Text Write and press [ENT]
to view the following screen.
Press [ENT] to open the selection window. Select
each setting and press [ENT].
Press [ACCEPT] to enter when all selections are finished.
• Factory default setting of 3. SEND POLAR DATA
1. ROTATION: CW
To Next Page
