For precise measurement, carry out [F3][P2 MEAS]
to calculate at least two multiplicative.
After pressing [F3][P2 MEAS], measure the distance
of 2
nd
point.
With this function you can obtain the most probable
value of the angle of three points: after measuring
the distance of 3
rd
point, measure the 2
nd
point again.

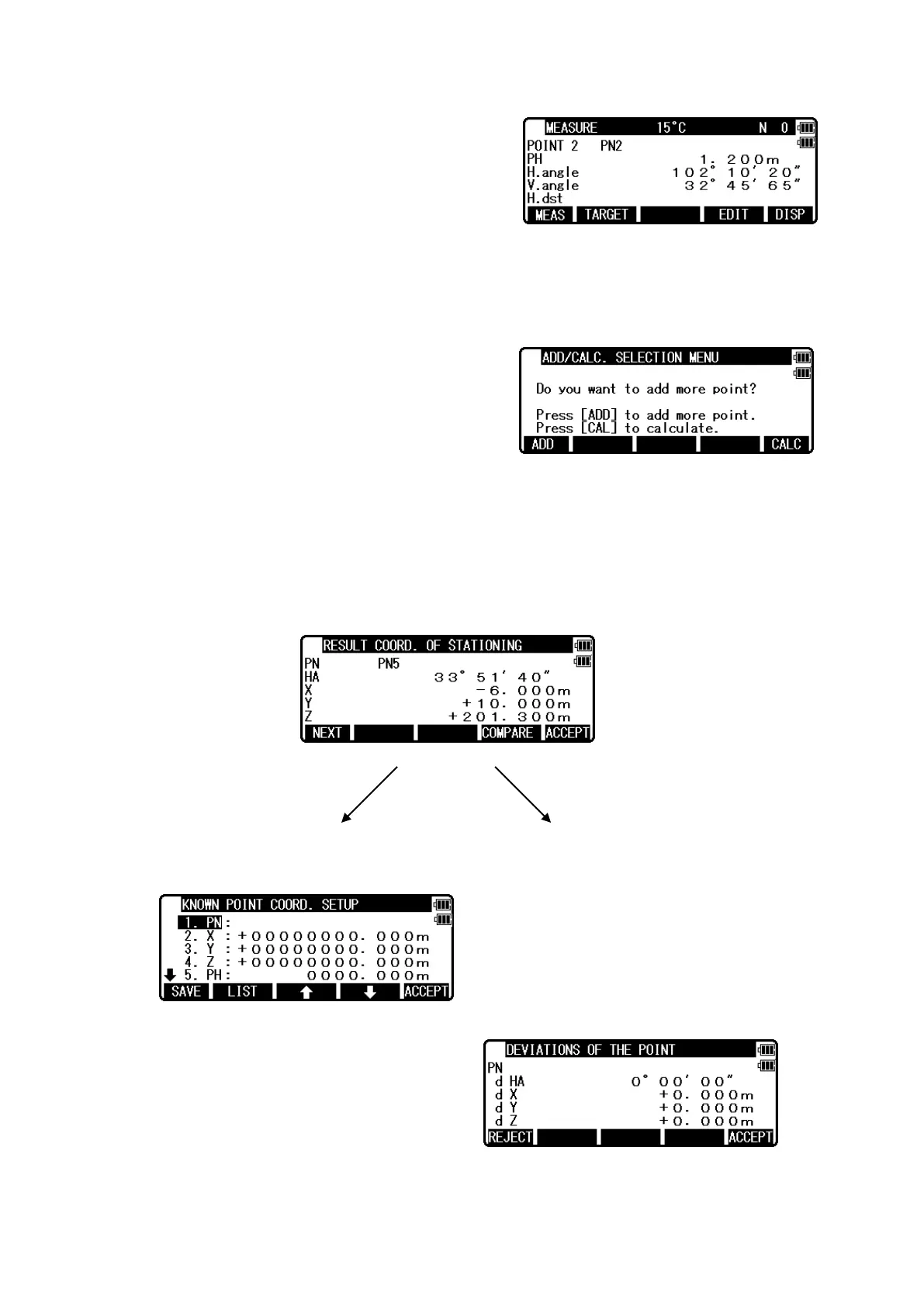

After the measurement, press [ENT] to go to RESULT
CORD. OF STATIONING screen.
The most probable value is calculated based on the station point coordinate
After entering values of PN4, press [ENT] twice to
view the MEASURE and ADD/CALC
SELECTION MENU.
Press the [F5][CALC] to view the RESULT COORD. OF STATIONING screen.
The Station Coordinates is displayed. Result coordinates of free stationing can be saved
for Station setup after pressing [F5][ACCEPT]. Horizontal angle of the result coordinates will
be affected to the Station point for measuring.
Press [F1][NEXT] to view KNOWN
POINT COORD. SETUP screen.
DEVIATIONS OF THE POINT: Four
points or more are needed to view this.
Press [ENT] to view the DEVIATIONS
OF THE POINT screen. The deviations
of X,Y and Z coordinate of each point
are displayed. For each point, you can
decide if you want to accept or reject the
point.
PN: Current point number
dX: Deviation on the X value
dY: Deviation on the Y value
dZ: Deviation on the Z value
To Next Page
