2.2 Allocation of each PowerTopoLite Function key
PowerTopoLite functions
KEY Function Description
F1 FILE File Manager
F2 MEAS Measure
F3 VIEW View and Edit
F4 FREE Free stationing
Next four Functions are viewed by pressing [F5][PAGE].
KEY Function Description
F1 STAK Stake out
F2 CALC Calculation
F3 VPM Virtual Plane Measurement
F4 RDM Remote Distance Measurement
Last four Functions are viewed by pressing [F5][PAGE].
KEY Function Description
F1 TRAV Traverse
F2 ROAD Road design
F3 I/O Input and Output
F4 PREF Preference
INVERSE, POINT COORDINATES, LINE-LINE INTERSECTION functions

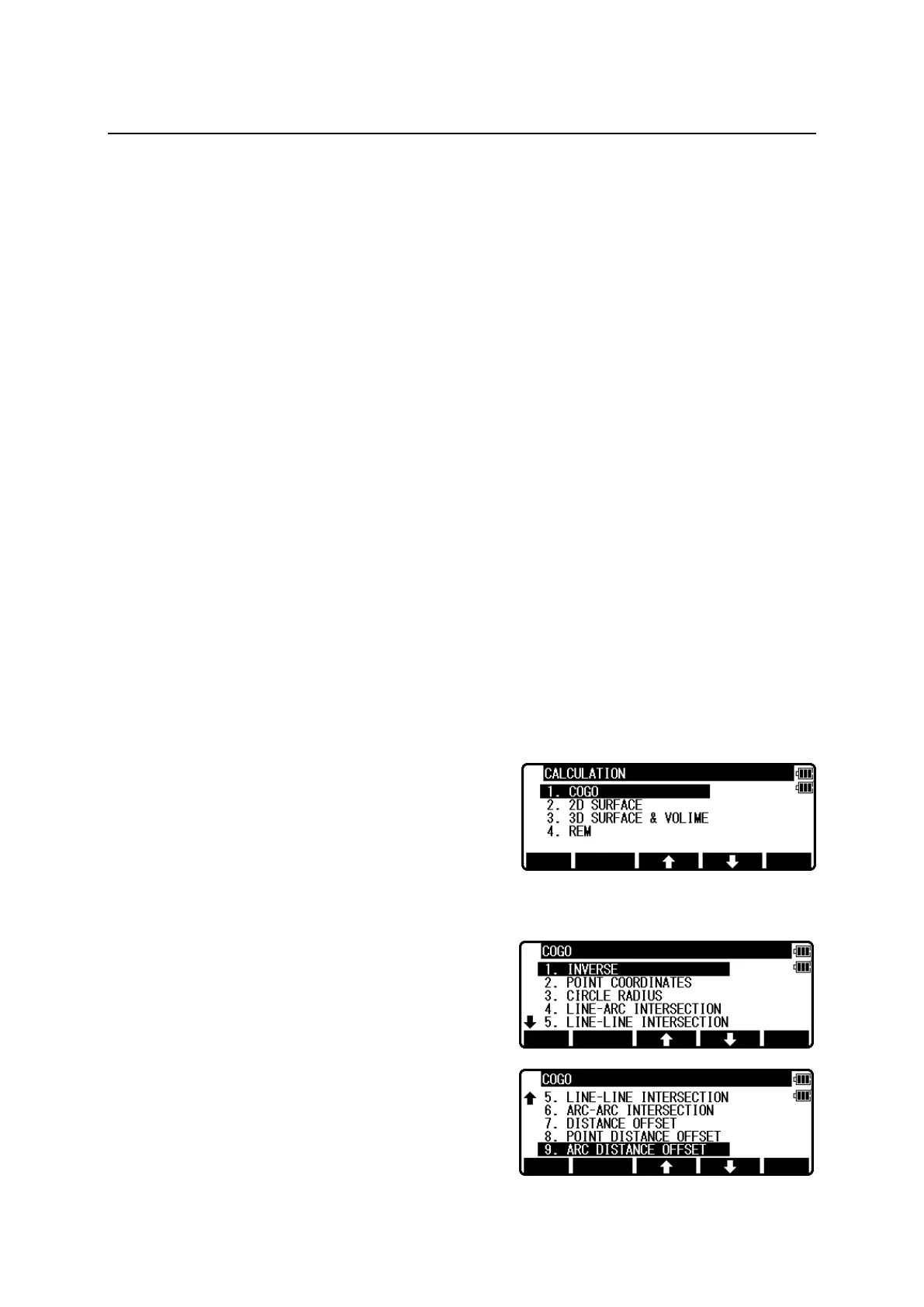

CALCULATION screen is viewed by pressing
[F2][CALC]. The CALCULATION consists of
COGO, 2D SURFACE and 3D SURFACE &
VOLUME functions.
COGO screen is viewed by selecting 1. COGO and pressing [ENT].
The COGO consists of INVERSE,
POINT COORDINATES,
CIRCLE RADIUS,
LINE-ARC INTERSECTION,
LINE-LINE INTERSECTION,
ARC-ARC INTERSECTION,
DISTANCE OFFSET,
POINT DISTANCE OFFSET,
ARC DISTANCE OFFSET,
and functions.
To Next Page
